SLPP0230 Log-Periodic Antenna | 200 MHz – 3 GHz

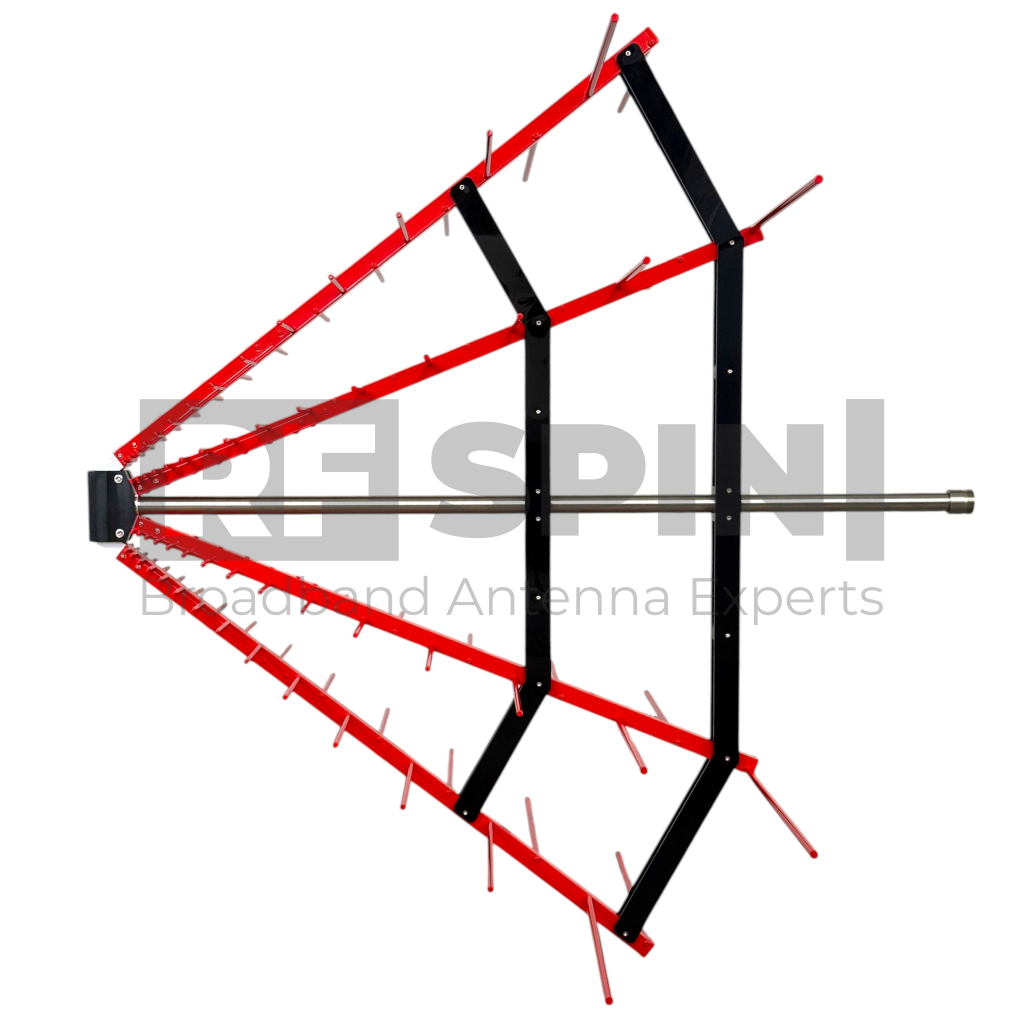

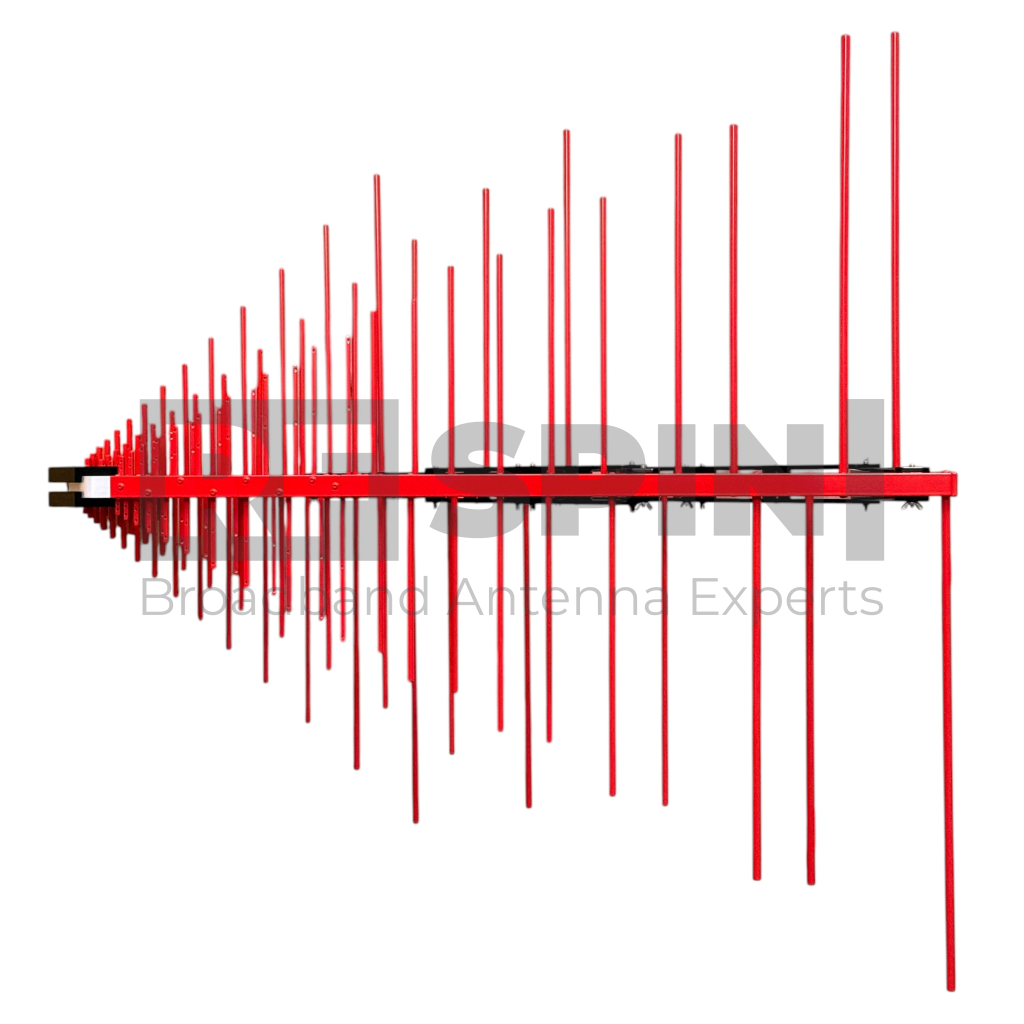

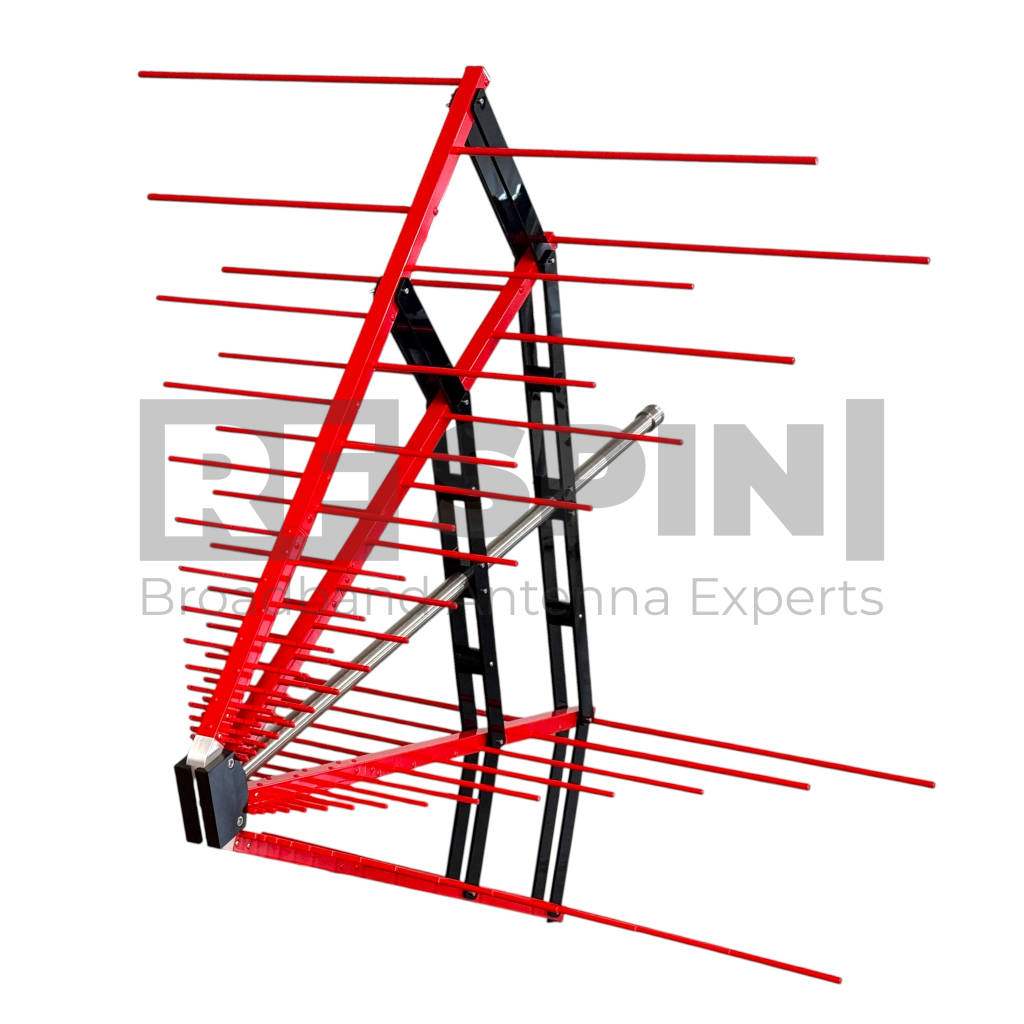

Introducing the SLPP-0230, a stacked Log Periodic Dipole Antenna specifically designed for EMC measurements, operating from 200 MHz up to 3 GHz. Integrating two conventional LPDA structures, this model retains a flat gain and low SWR, with a crucial gain improvement of 2.5 dB, vital for immunity testing where maximum field strength and uniform field distribution are essential.
Datasheet
Product Highlights
Key Features
- Suitable for EMC/EMI
- Premium broadband antenna
- Precision-tuned for optimal performance
- Stable high gain
Performance & Versatility
- Wide bandwidth and low return loss
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name SLPP0230
- Product Category Log-Periodic Antenna
Electrical specifications
- Frequency Range 200 MHz – 3 GHz
- VSWR (max.) 1.8
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector 7/16 (female)
- Power (CW / Peak) 1000 W / 2000 W
- Antenna Factor 10 – 30 dB/m
- Polarization Linear
Physical specifications
- Width 1012 mm (39.843 in)
- Height 876 mm (34.488 in)
- Depth 1052 mm (41.417 in)
- Weight 5.2 kg (11.464 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns
0.2 GHz
0.4 GHz
0.6 GHz
0.8 GHz
1 GHz
1.2 GHz
1.5 GHz
1.8 GHz
2.1 GHz
2.4 GHz
2.7 GHz
3 GHz
Packaging and Accessories
What's in a box
- SLPP0230 Antenna
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
