From radar characterization to airborne measurement, RF SPIN antennas support R&D, testing, and qualification programs at leading aerospace organizations, test laboratories, and system integrators.
In aerospace testing, a missed dB can mean a failed qualification or a delayed program. RF SPIN builds measurement antennas for engineers who can’t afford to second-guess their data: every unit individually calibrated, fully documented, proven in the field.
And other aerospace, space, and research organizations around the globe
Antennas with custom radomes for outdoor deployment, vehicle integration, and field testing. Built for challenging environmental conditions, with a MIL-STD-810F qualified model available (QRH400R).
Use context
Field deployment
Environment
Vehicle / Portable
Activity type
MIL-STD-810F
Reference

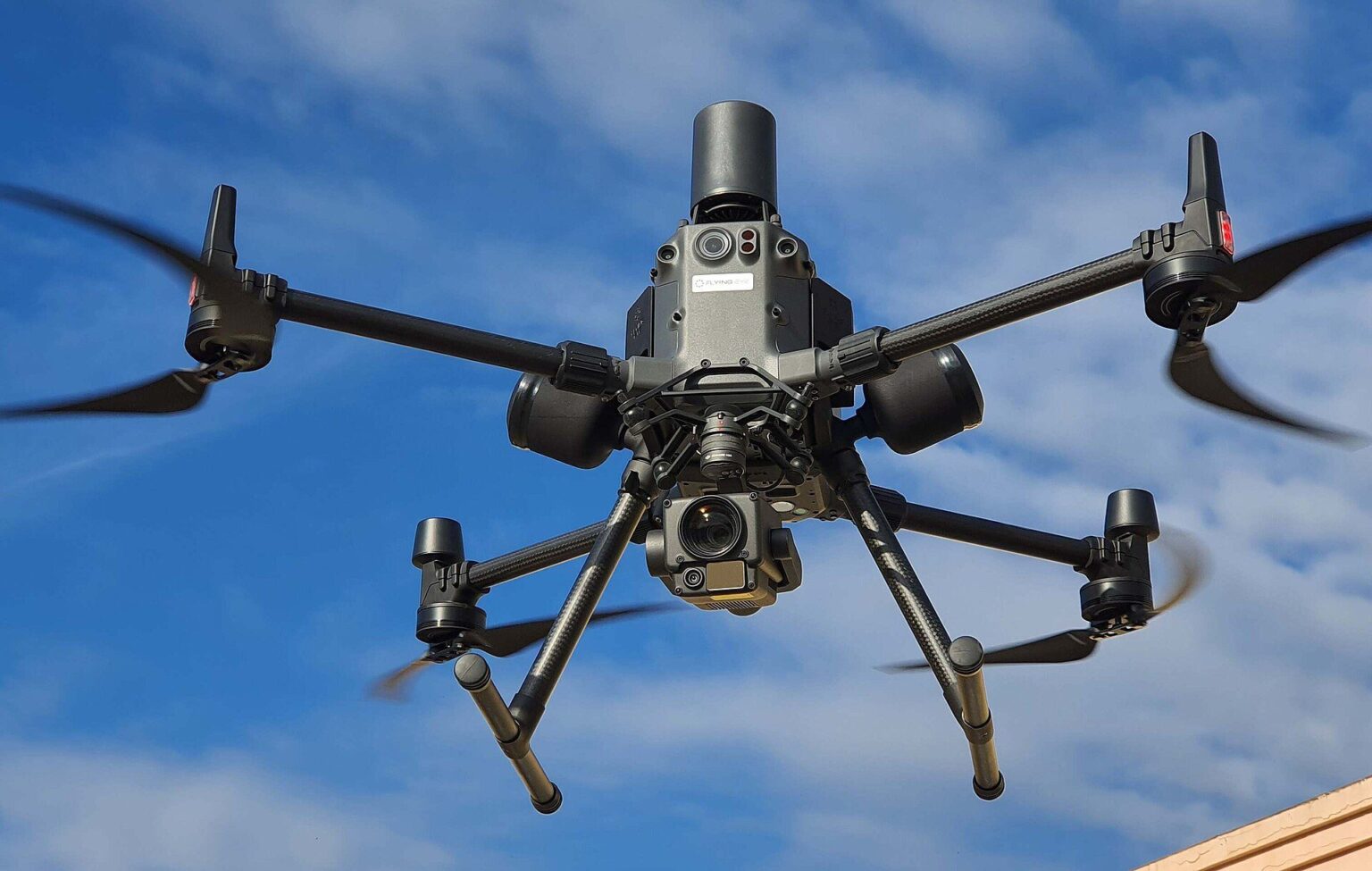

Lightweight measurement antennas for airborne integration and space platforms, where mass and footprint define the mission: ultra-light designs for UAVs and space-program hardware.
Use context
Airborne / Space
Environment
Payload integration
Activity type
Mass-constrained
Reference
Broadband horn antennas for characterizing radar and RF systems, measuring emissions, and analyzing signals across wide frequency ranges. Dual- and single-polarized models, each antenna individually calibrated in our anechoic chamber.
Use context
Anechoic chamber
Environment
Signal analysis
Activity type
System integrators
Reference
Broadband measurement antennas for EMC test programs across the avionics and aerospace sectors. Used in compliance testing per MIL-STD-461 and RTCA DO-160, with accredited CISPR 16-1-6 calibration available on request.
Use context
Test chamber
Environment
Compliance testing
Activity type
MIL-STD-461 / DO-160
Reference
400 MHz – 6 GHz · dual-polarized with radome
MIL-STD-810F qualified for harsh-environment applications. Built for outdoor deployment, vehicle integration, and field measurement programs where reliability is non-negotiable.
Weatherproof radome construction
Wide L through C band coverage
Individual chamber calibration
2 – 18 GHz · 166 g · dual-polarized
Built for airborne integration, portable field measurement, and payload-constrained RF systems where every gram counts. The lightest dual-polarized broadband horn in our catalog.
1 – 40 GHz · dual-polarized broadband
The broadest single-antenna coverage in our catalog. Suited for broadband measurement, antenna characterization, and signal analysis across radar and SATCOM bands.
1 – 18 GHz · dual-polarized EMC/EMI antenna
300 MHz – 1.7 GHz · lightweight high-power UHF/L-band
Lightweight broadband antenna with high power handling. Built on engineering experience from a NASA space program, now in the portfolio for UHF and L-band measurement.
Perforated construction for mass-optimized design
700 W CW / 1100 W peak power handling
Suitable for satellite payloads and aerospace platforms
400 MHz – 6 GHz · lightweight portable broadband
Perforated frame for low aerodynamic drag on UAVs
Built-in dual-axis spirit levels for precise alignment
Individually calibrated with electronic calibration files
MIL-STD-810F qualified model for harsh-environment deployment (QRH400R).
Manufacturing operates under an ISO 9001 quality management system.
Accredited laboratory calibration to CISPR 16-1-6 available with the PLUS ACCREDITED tier. Each antenna individually calibrated in our anechoic chamber.
See the data tiers
Each antenna ships with a unique QR code linking to the Antenna Portal with its calibration data, datasheets, and documentation.
Find out more and browse demoEvery antenna designed, machined, calibrated, and tested in our Czech facility. Full quality control, no outsourcing, traceable supply chain.
Each antenna individually calibrated and documented. Manufacturer or accredited calibration data follows the antenna throughout its lifetime, accessible via QR code.

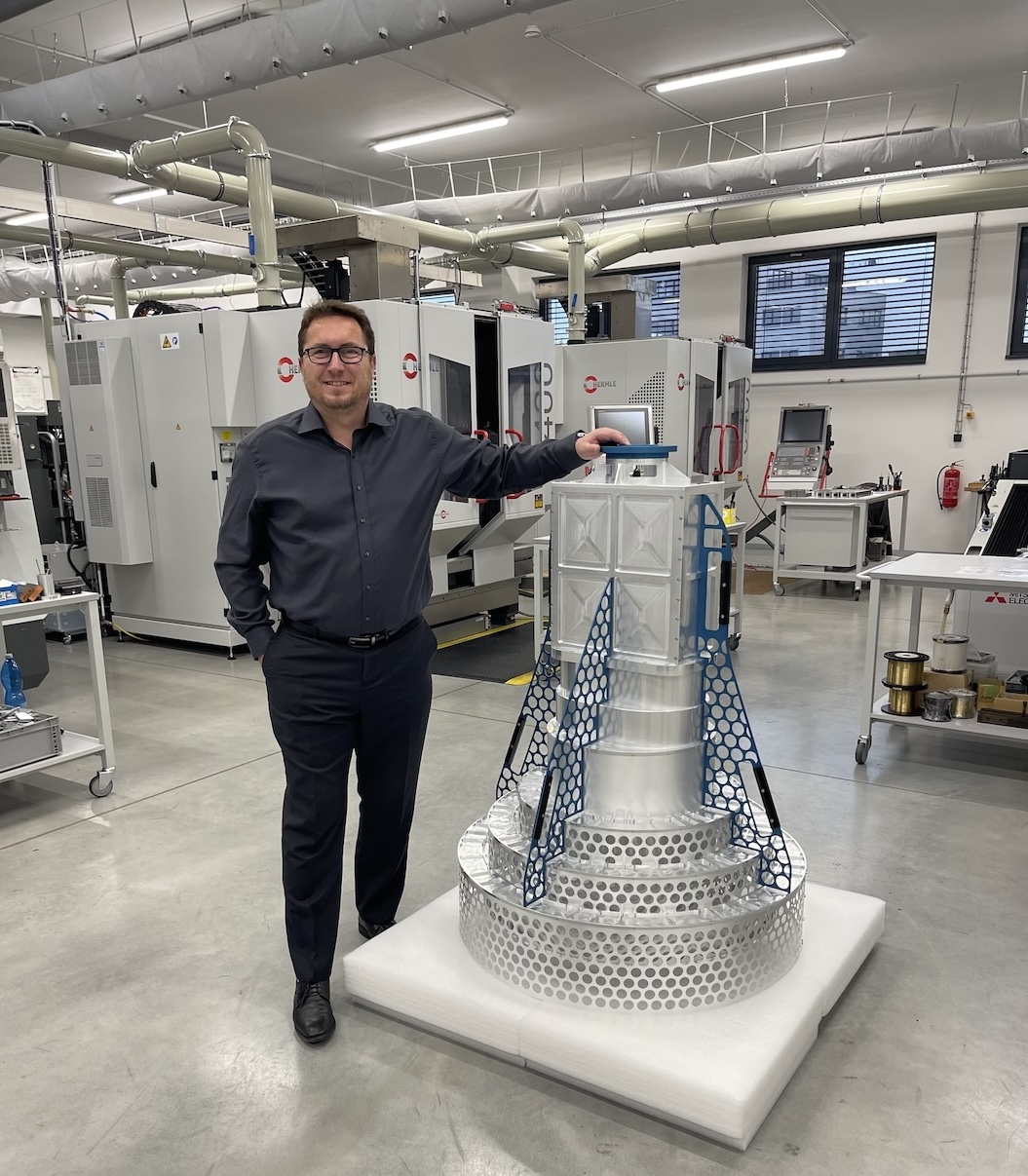

For specific frequency, mechanical, environmental, or interface requirements. 20+ years of design experience, in partnership with Czech Technical University in Prague.
From extended frequency ranges and custom radomes to special connectors and ruggedized mechanical builds, we develop custom antennas built precisely to your brief. Our engineering team has delivered custom designs for system integrators, space programs, and aerospace OEMs.
More about custom design
Whether you’re qualifying a new system, building a measurement chamber, or measuring across a frequency band you can’t find off-the-shelf, talk to us about your requirements.
