QRH0218 Quad Ridged Horn Antenna | 2 GHz – 18 GHz
with online calibration protocol and dataset

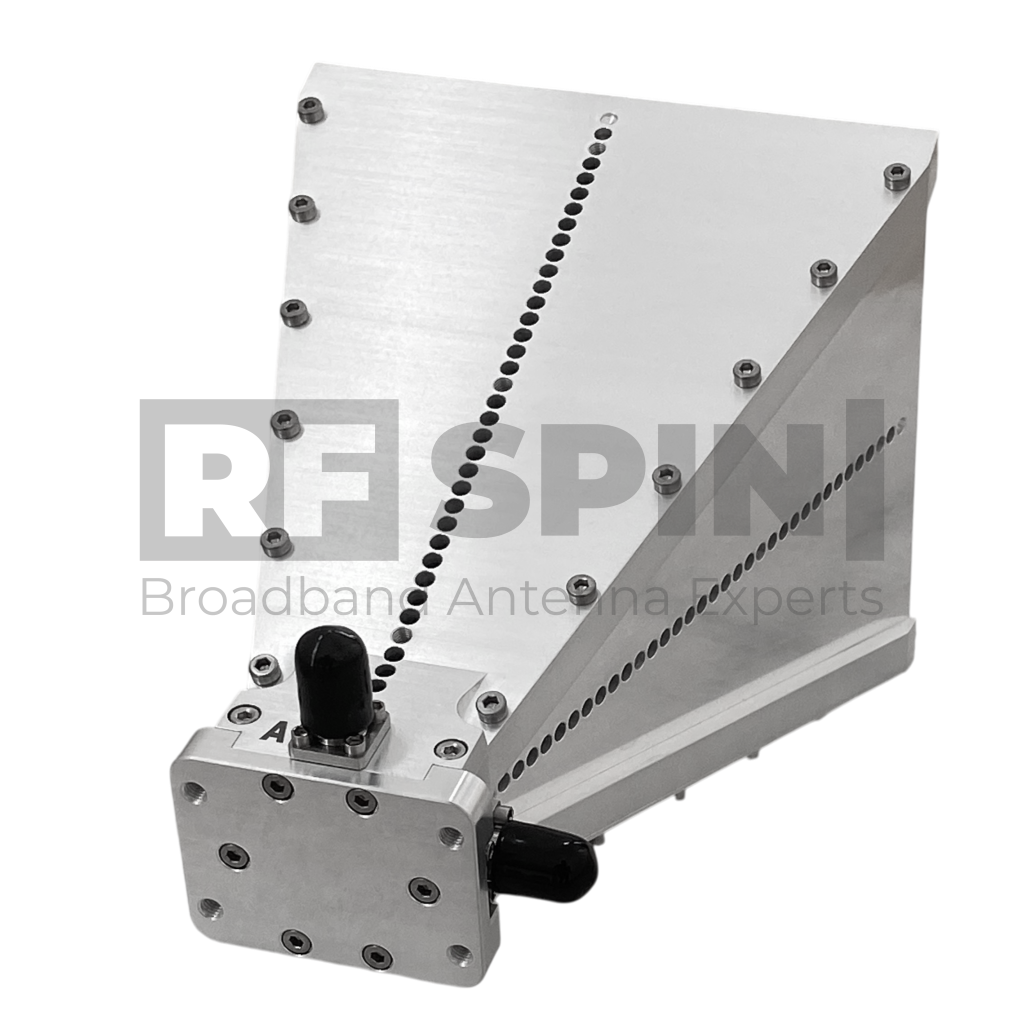

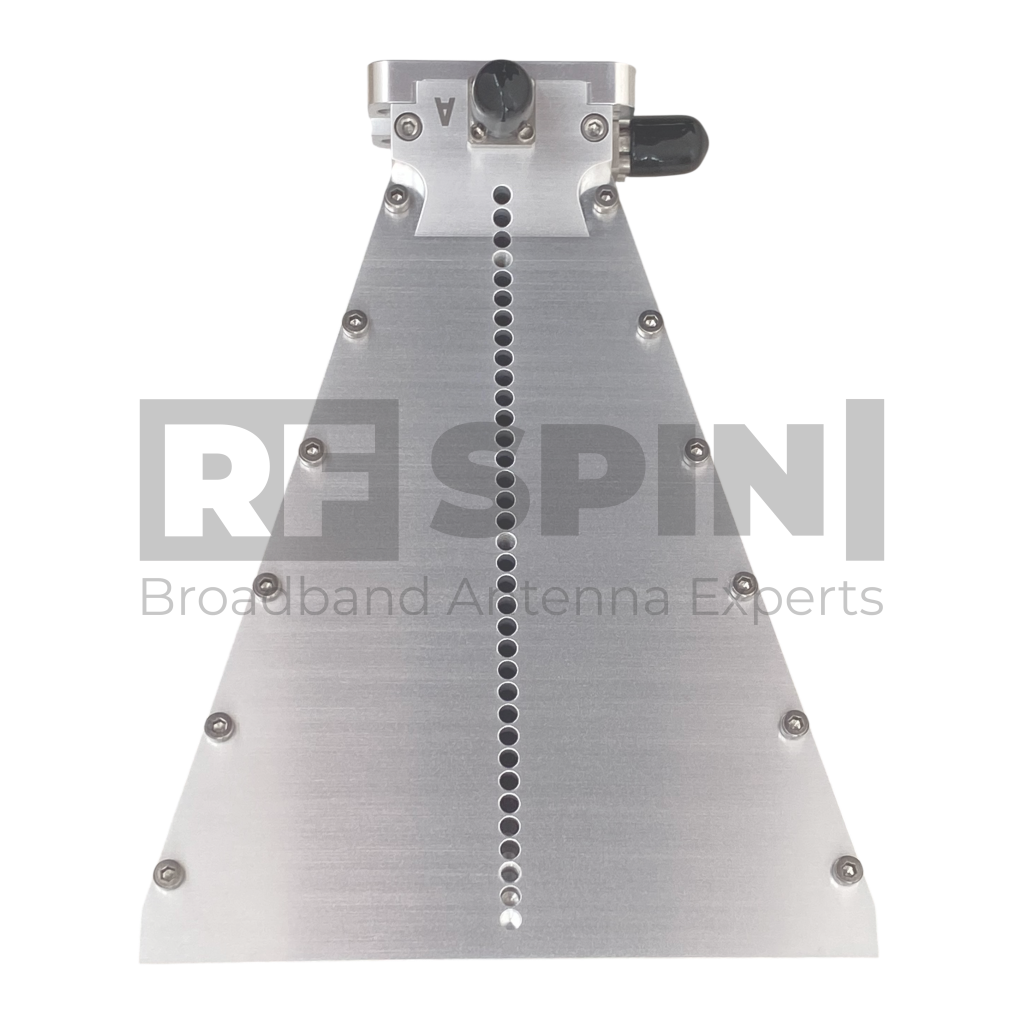

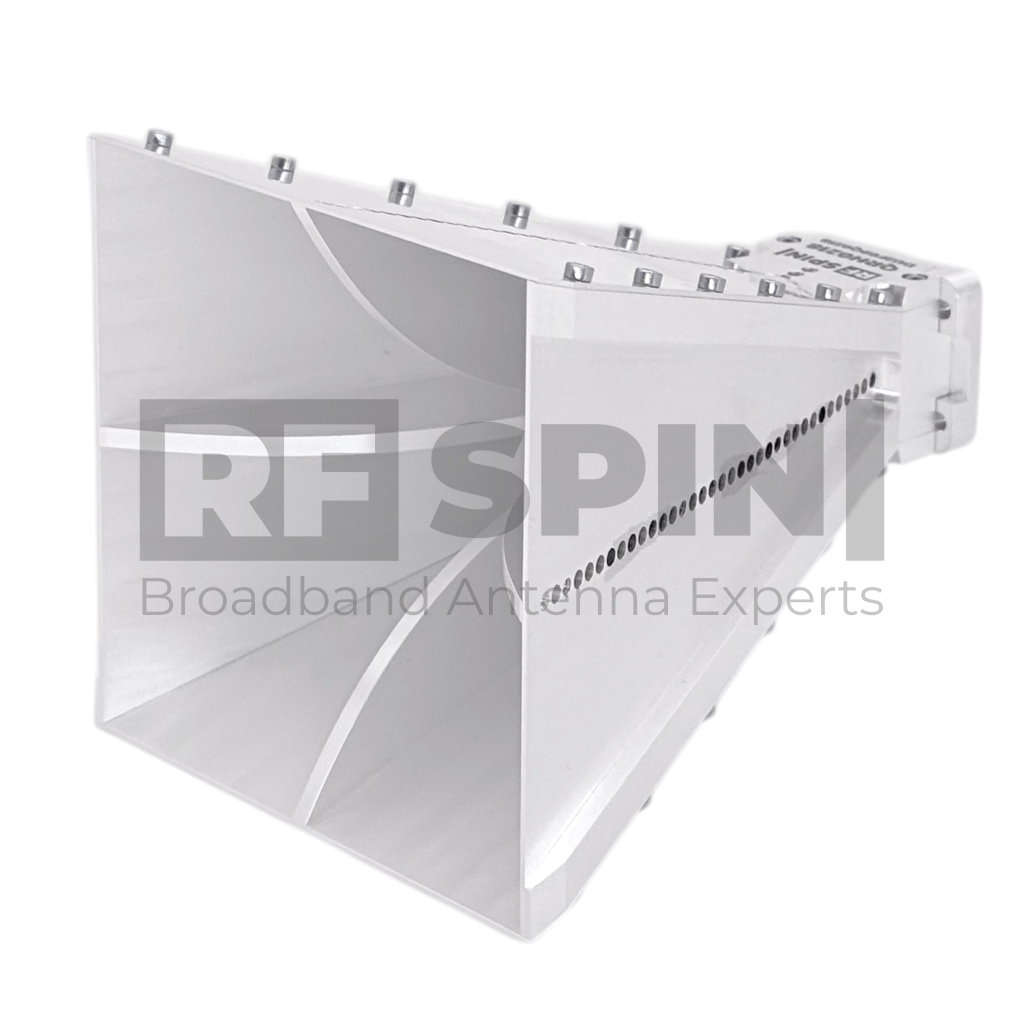

The QRH0218 is an ultra-lightweight antenna (only 166 g) designed for airborne and portable measurement applications. Covering a wide frequency range from 2 to 18 GHz. Each antenna is calibrated, with full calibration data available through Antenna Portal. Built with high durability, this antenna ensures long-term performance in demanding drone applications.
Choose Your Data & Documentation Tier
Product Highlights
Key Features
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- Circular polarization (optional)
- Customization available
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- High isolation values
- Multiple mounting options
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name QRH0218
- Product Category Quad Ridged Horn Antenna
Electrical specifications
- Frequency Range 2 GHz – 18 GHz
- VSWR (max.) 2.2
- VSWR (avg.) 1.4
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 100 W / 170 W
- Antenna Factor 29 – 42 dB/m
- Port Isolation -30 dB
- Polarization Dual Linear, Circular (with hybrid)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Physical specifications
- Width 90.7 mm (3.571 in)
- Height 121 mm (4.764 in)
- Depth 90.7 mm (3.571 in)
- Weight 0.166 kg (0.366 lb)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain

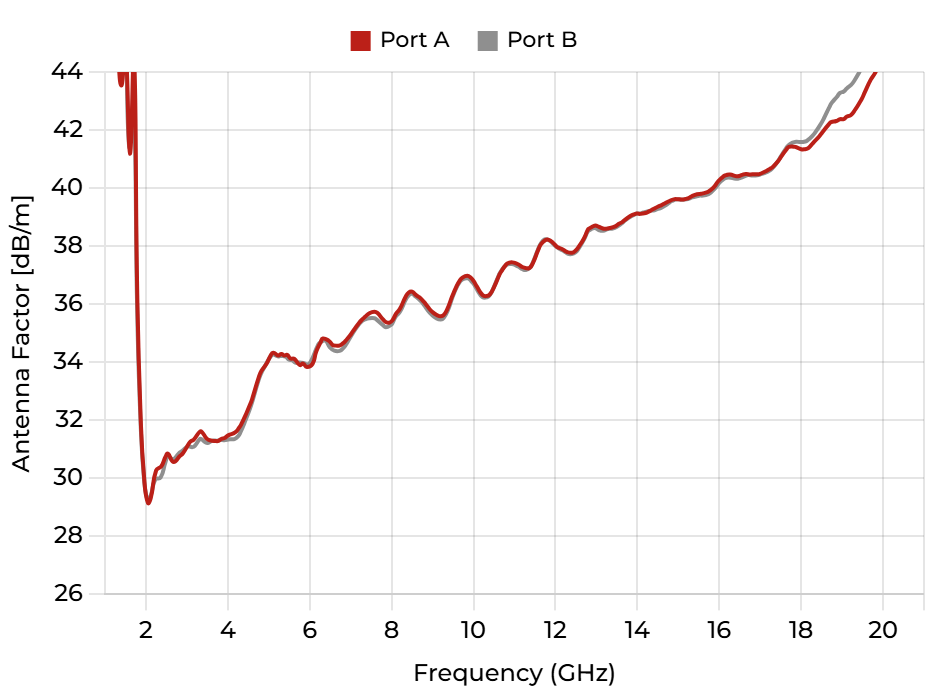

Antenna Factor

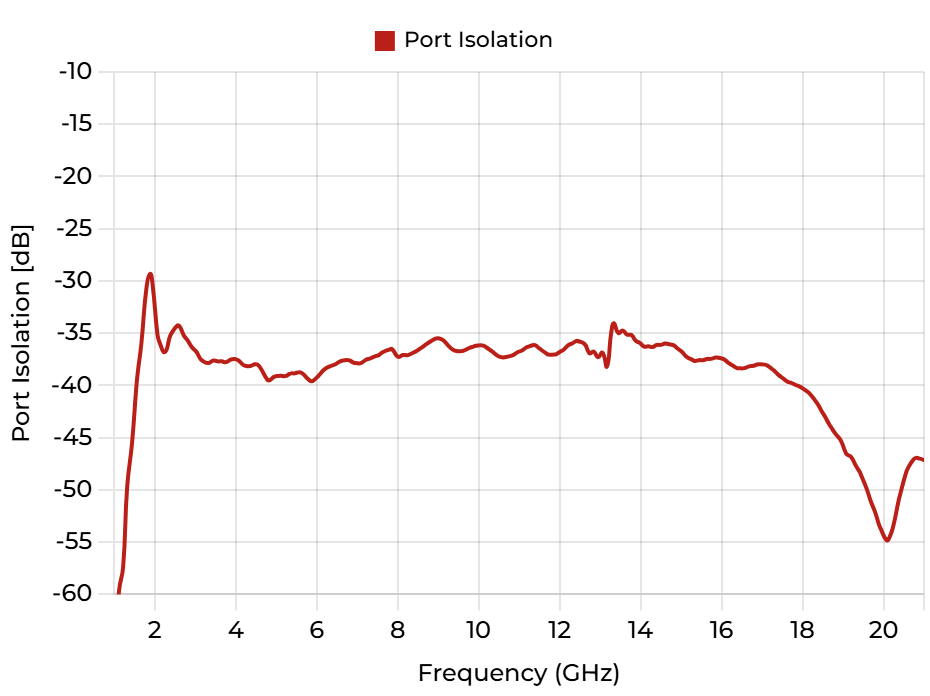

Port Isolation
Cross Polarization

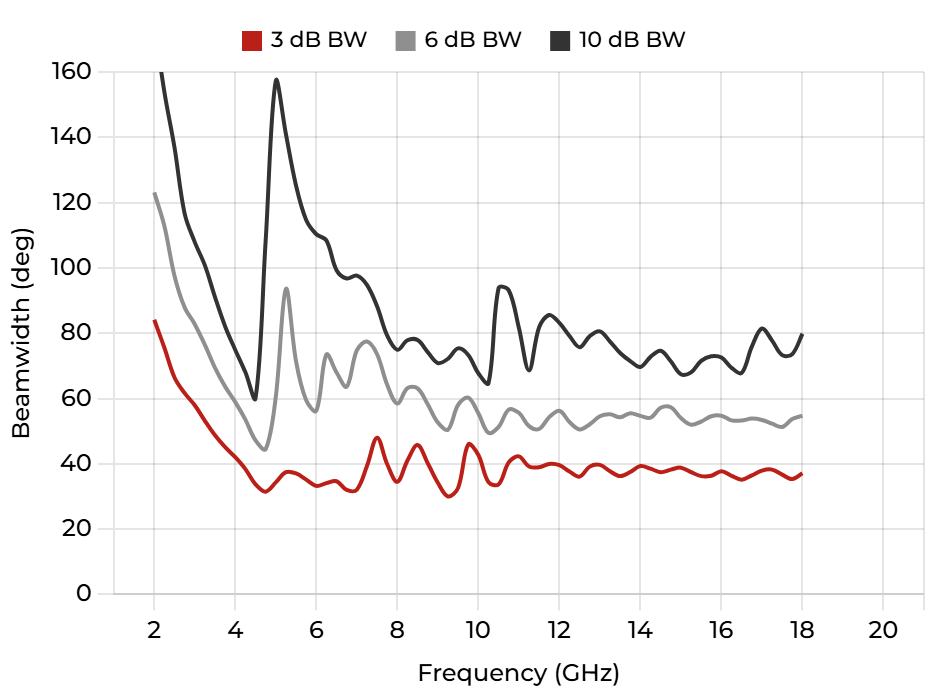

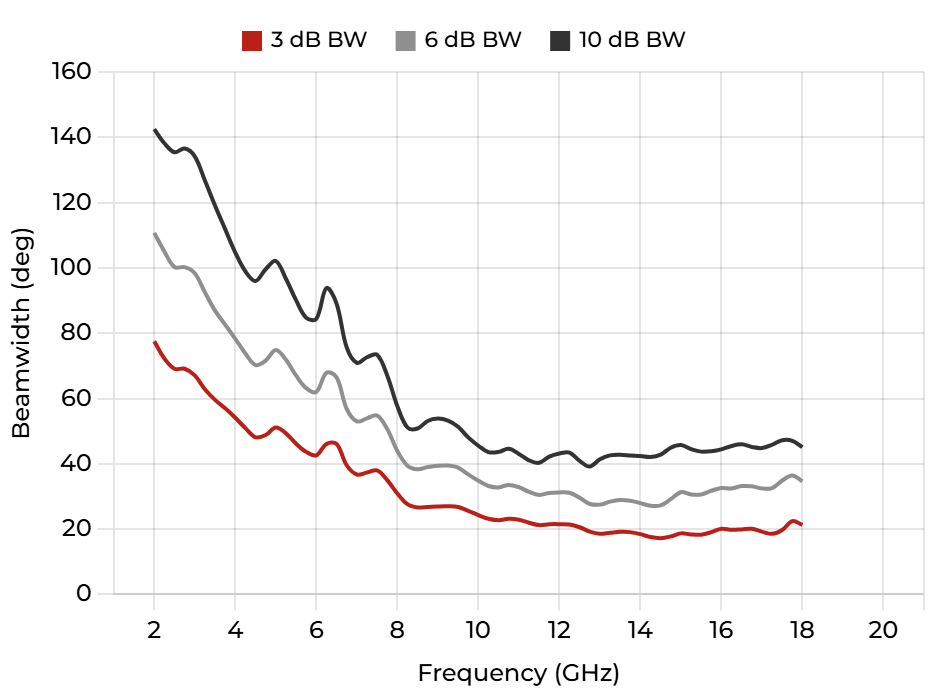

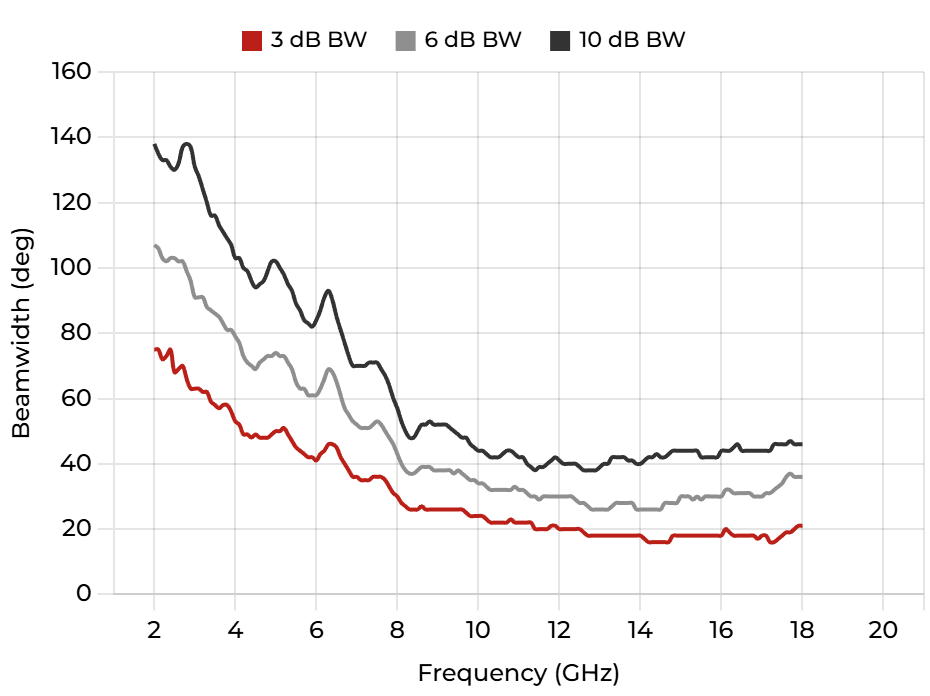

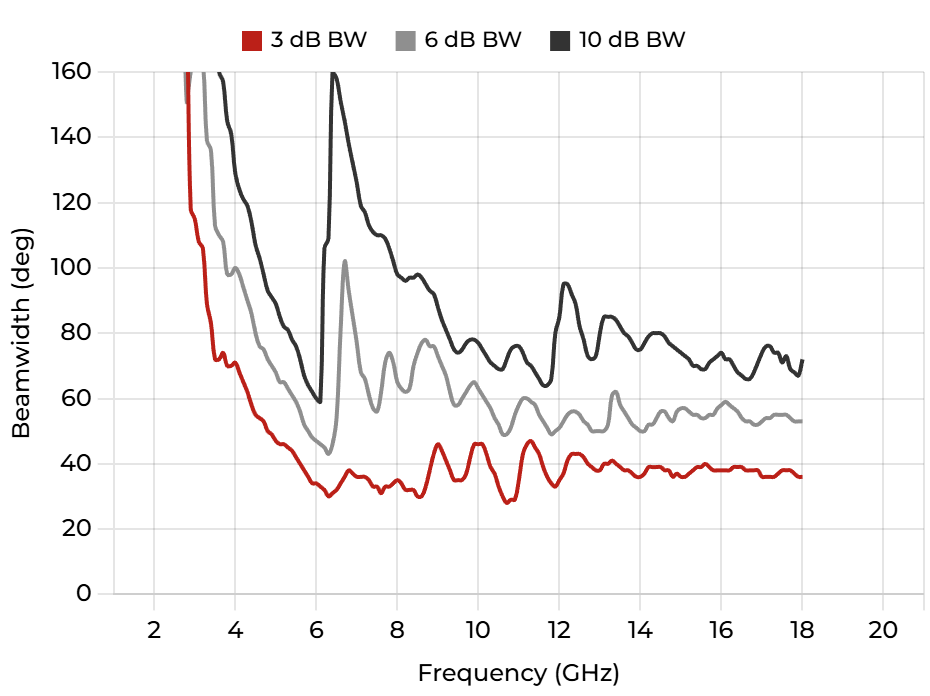

Beamwidth
Port A, E plane
Port A, H plane
Port B, E plane
Port B, H plane
Radiation Patterns - Port A

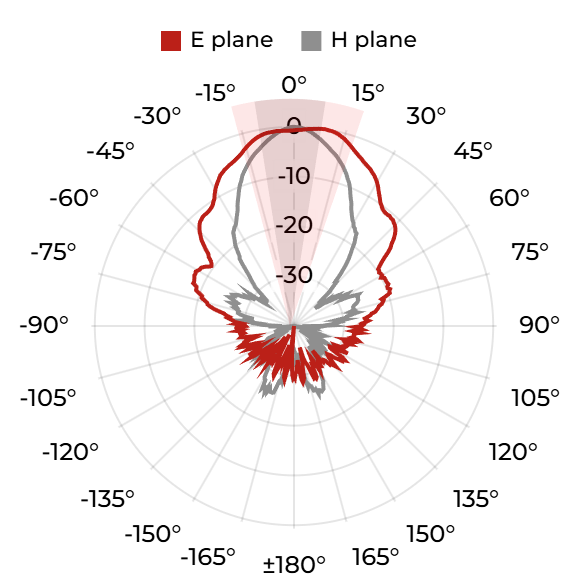

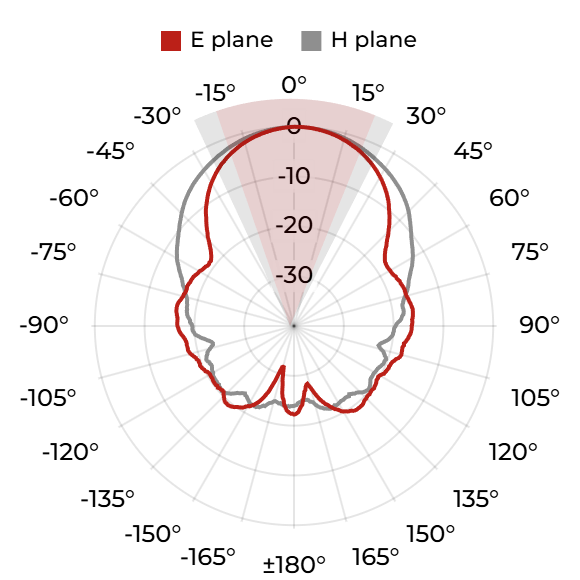

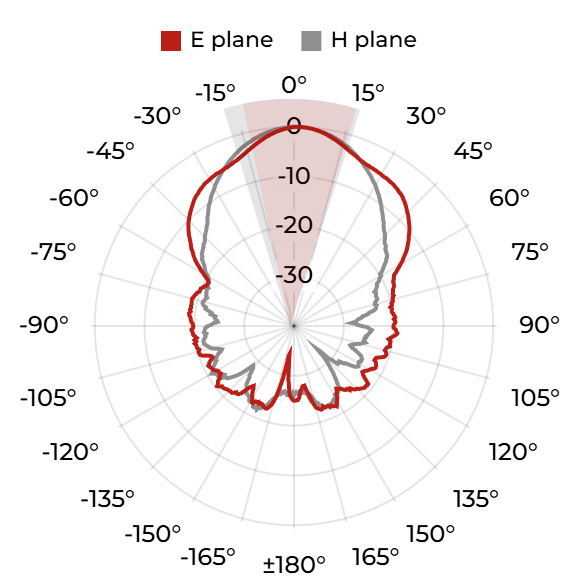

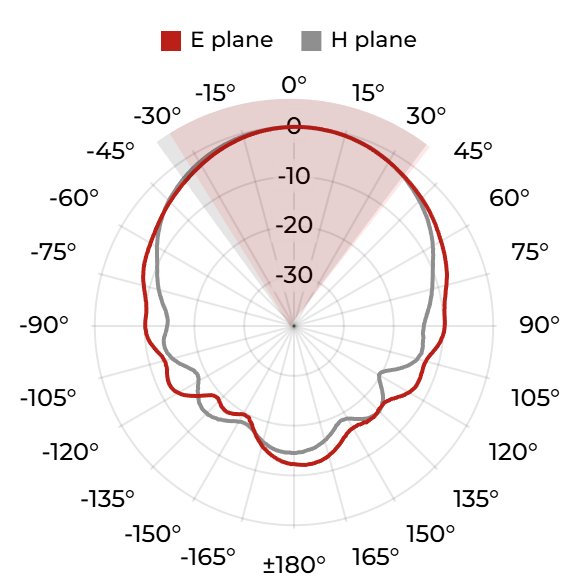

Port A, 2 GHz

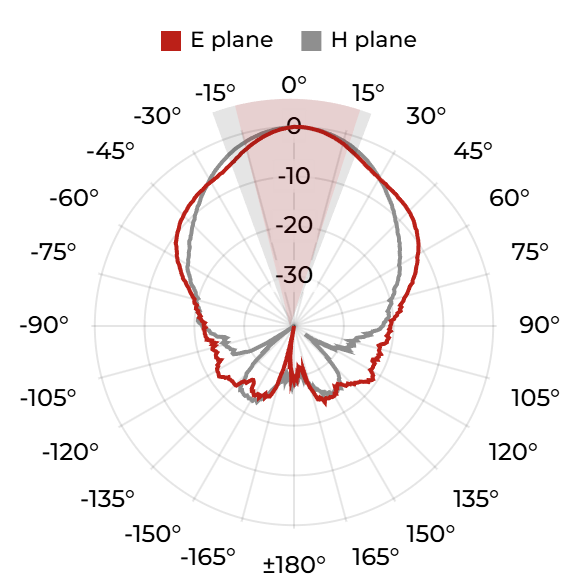

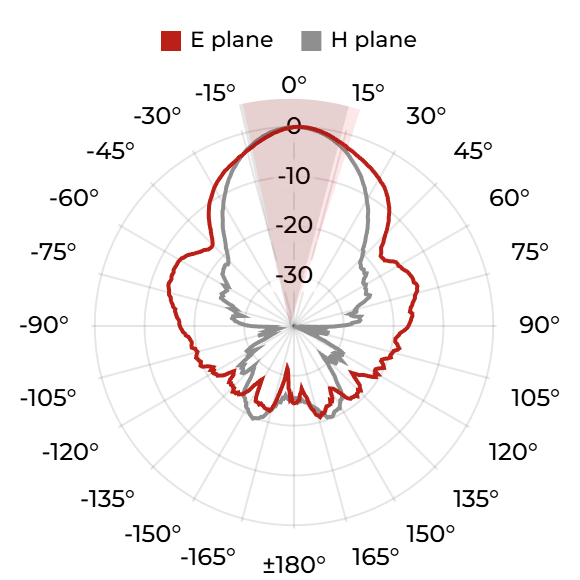

Port A, 4 GHz
Port A, 6 GHz
Port A, 7 GHz
Port A, 8 GHz
Port A, 9 GHz
Port A, 10 GHz
Port A, 11 GHz
Port A, 12 GHz
Port A, 14 GHz
Port A, 16 GHz
Port A, 18 GHz
Radiation Patterns - Port B

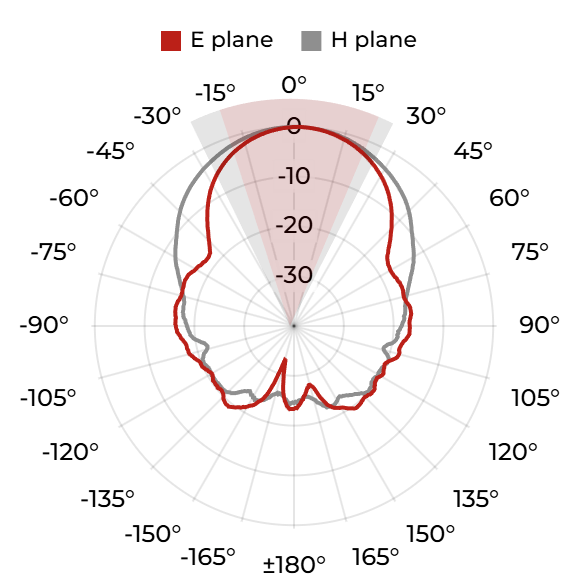

Port B, 2 GHz
Port B, 4 GHz
Port B, 6 GHz

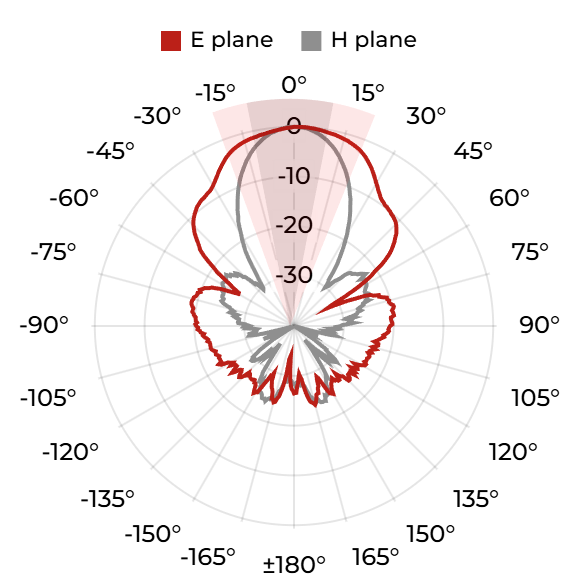

Port B, 7 GHz

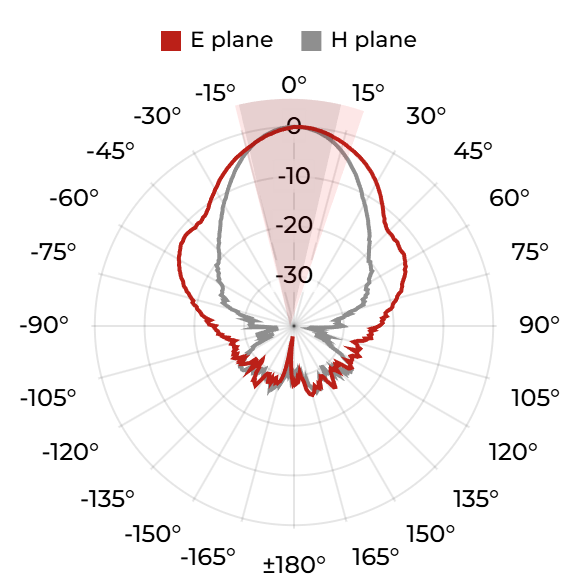

Port B, 8 GHz
Port B, 9 GHz

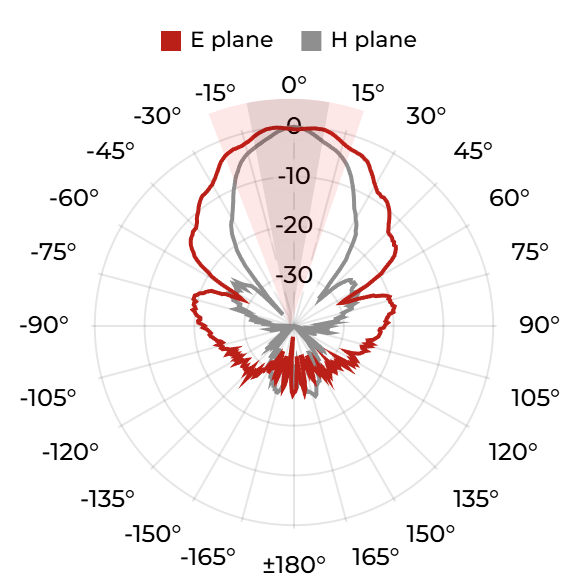

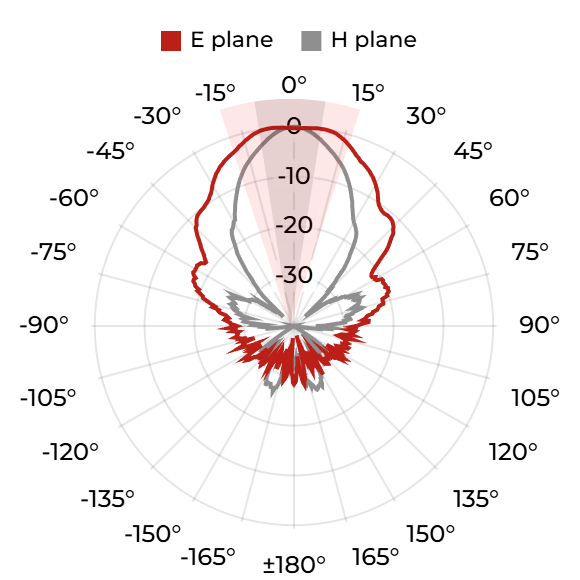

Port B, 10 GHz

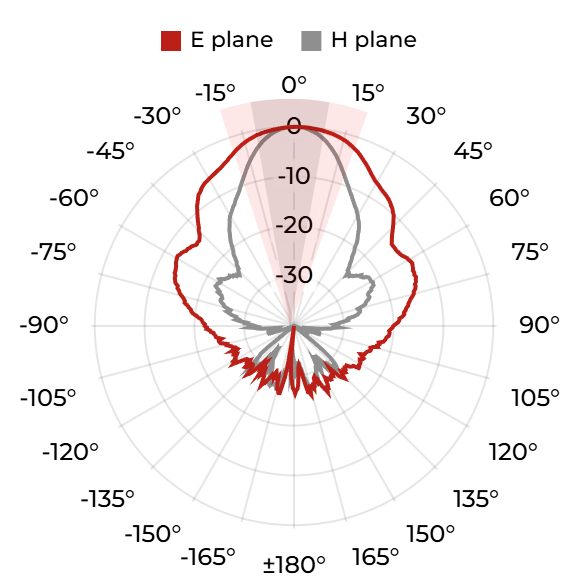

Port B, 11 GHz

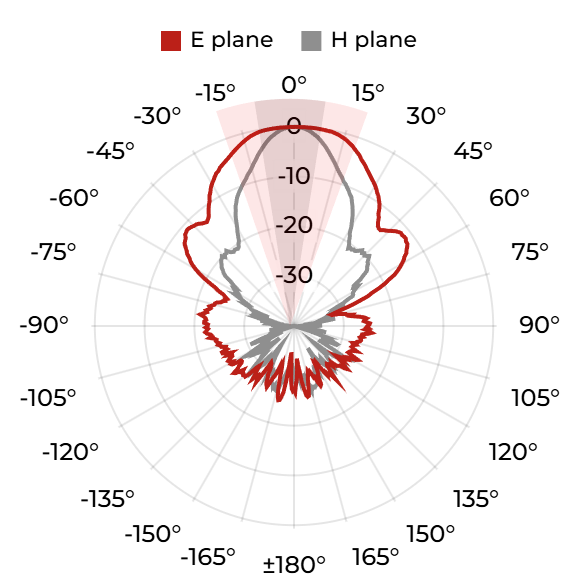

Port B, 12 GHz
Port B, 14 GHz
Port B, 16 GHz
Port B, 18 GHz
Packaging and Accessories
Accessories
- Standard mounting flange
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
