DRH0618-15 Double Ridged Horn Antenna | 6 GHz – 18 GHz
with online calibration protocol and dataset
Preliminary datasheet
Frequency Range
6 GHz – 18 GHz
VSWR (avg.)
1.1
Gain
12 – 16 dBi
Connector
SMA (female)
Power (CW / Peak)
100 W / 170 W
Polarization
Linear
Select files to be sent by e-mail
Choose Your Data & Documentation Level
Select the level of measurement data and documentation that best fits your application.
DRH0618-15 ESSENTIAL
Typical antenna data (PDF) with a calibration certificate including pass/fail results
Professional Choice
DRH0618-15 PLUS
Measured antenna data in digital and machine-readable formats with a calibration certificate
DRH0618-15 PLUS CERTIFIED
Accredited laboratory calibration certificate with the complete PLUS-level data
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
Manufacturing Technology
- Extremely durable
- High quality SMA type coaxial connector
Product Packaging Includes
- Adapter with ¼ inch inner thread, supplied with antenna
- Linear polarized double ridged broadband horn antenna
Product Parameters
Product identification
- Product Name DRH0618-15
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 6 GHz – 18 GHz
- VSWR (max.) 1.5
- VSWR (avg.) 1.1
- Connector SMA (female)
- Power (CW / Peak) 100 W / 170 W
- Antenna Factor 30 – 40 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Physical specifications
- Width 87 mm (3.425 in)
- Height 91 mm (3.583 in)
- Depth 63 mm (2.480 in)

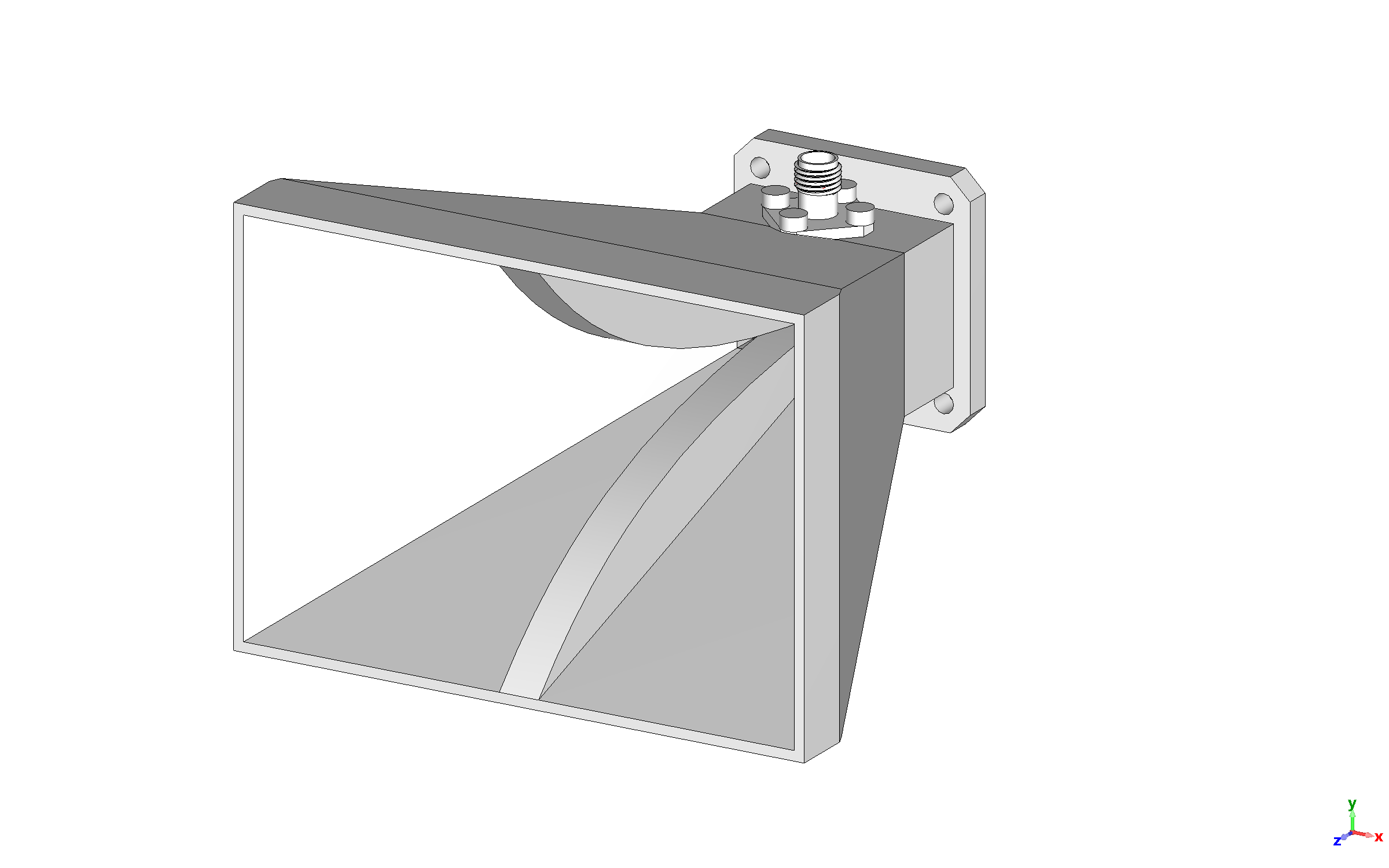

Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Packaging and Accessories
What's in a box
- DRH0618-15 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
