DRH0806 Double Ridged Horn Antenna | 800 MHz – 6 GHz
with online calibration protocol and dataset
Features and Specifications
Technical Performance
- High gain
- Wide bandwidth
- Low return loss
- Individual calibration
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality 7/16 coaxial connector
Product Packaging Includes
- Linear polarized double ridged broadband horn antenna
Product Parameters
Product identification
- Product Name DRH0806
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 800 MHz – 6 GHz
- VSWR (max.) 1.8
- VSWR (avg.) 1.2
- Impedance 50 Ohm
- Connector 7/16 (female)
- Power (CW / Peak) 1000 W / 1300 W
- Antenna Factor 17 – 24 dB/m
- Polarization Linear
Physical specifications
- Width 438 mm (17.244 in)
- Height 702 mm (27.638 in)
- Depth 457 mm (17.992 in)
- Weight 6.7 kg (14.771 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance
Typical parameters

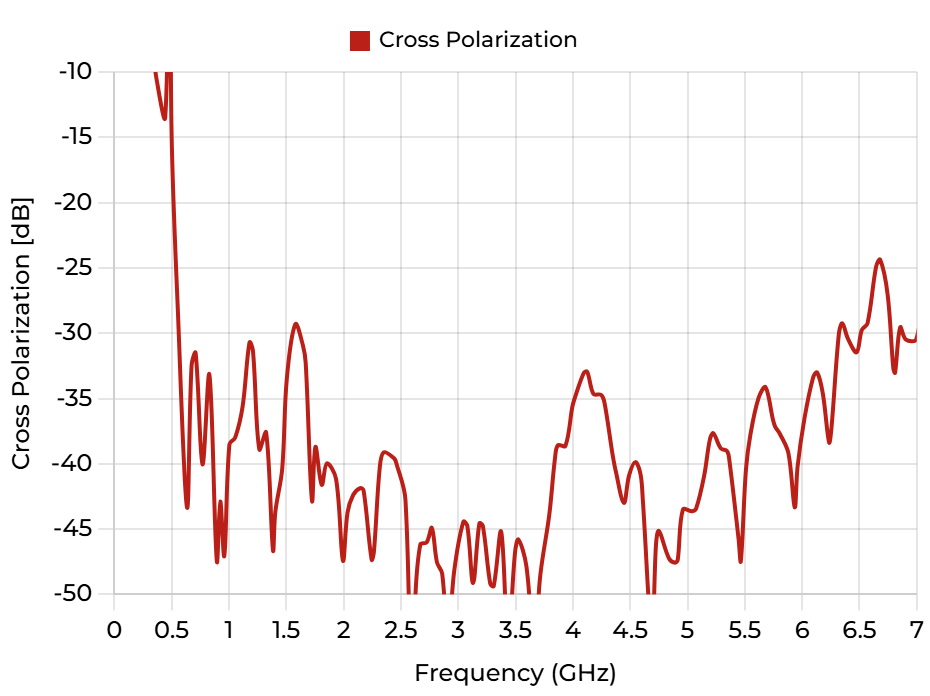

VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns
0.8 GHz
1 GHz
1.3 GHz
1.8 GHz
2.3 GHz
2.8 GHz
3.3 GHz
3.8 GHz
4.3 GHz
4.8 GHz
5.5 GHz
6 GHz
Packaging and Accessories
What's in a box
- DRH0806 Antenna
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
Custom services
- Custom mounting solutions
- Custom calibration data
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
