DRH1840-15 Double Ridged Horn Antenna | 18 GHz – 40 GHz
with online calibration protocol and dataset
Preliminary datasheet
Frequency Range
18 GHz – 40 GHz
VSWR (avg.)
1.1
Gain
13 – 17 dBi
Impedance
50 Ohm
Connector
K (female)
Power (CW / Peak)
10 W / 20 W
Polarization
Linear
Made on demand
Lead time 4-8 weeks
Need more information?
-
Datasheet
Select files to by sent by e-mail
This product includes
Antenna Portal Access
Product Highlights
Product Parameters
Product identification
- Product Name DRH1840-15
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 18 GHz – 40 GHz
- VSWR (max.) 1.4
- VSWR (avg.) 1.1
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 10 W / 20 W
- Antenna Factor 41 – 45.98 dB/m
- Polarization Linear
Physical specifications
- Width 41 mm (1.614 in)
- Height 50 mm (1.969 in)
- Depth 28.4 mm (1.118 in)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C

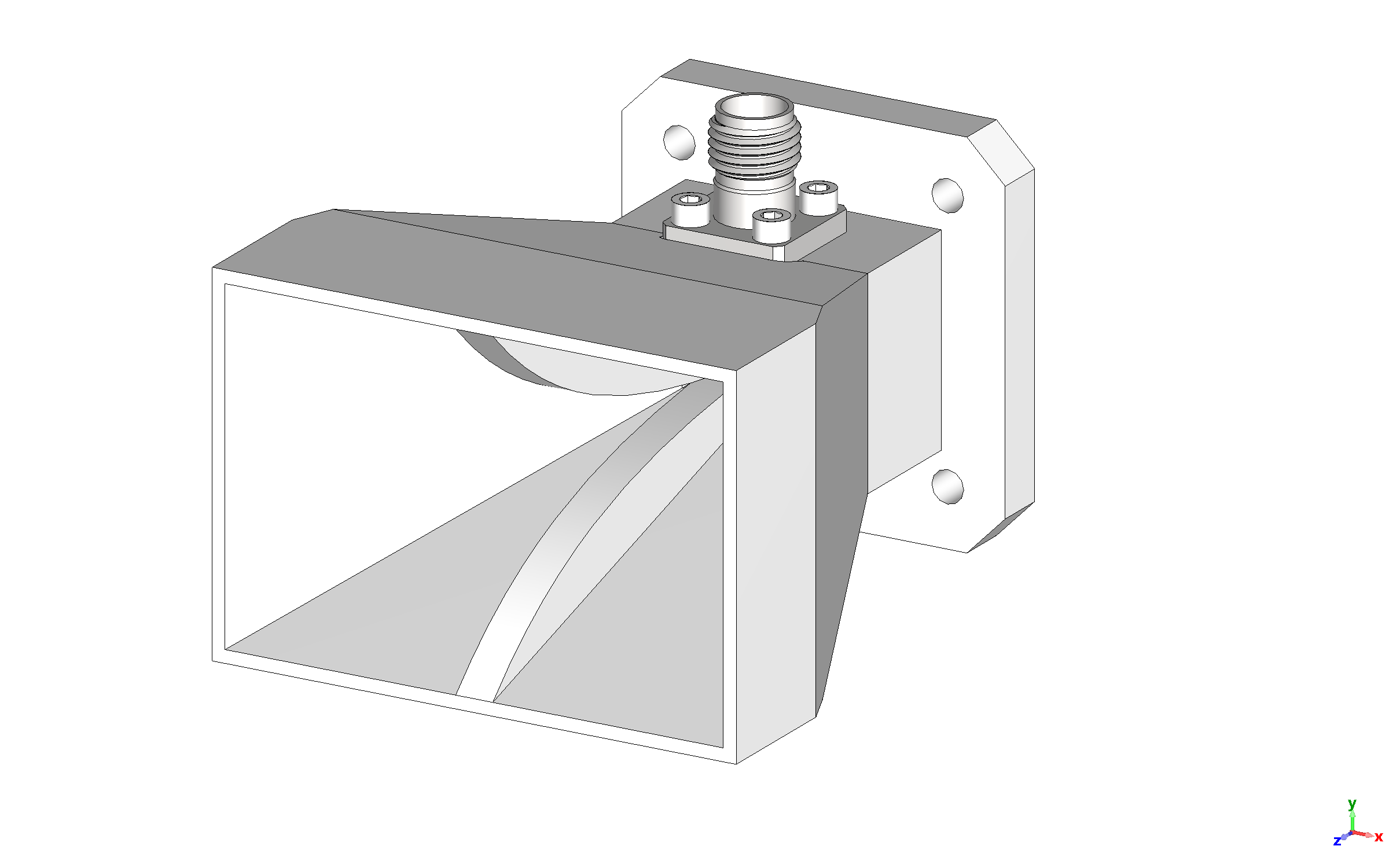

Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Packaging and Accessories
Accessories
- Standard mounting flange
