H-A33 Pyramidal Horn Antenna | 22 GHz – 33 GHz
H-A33 is a pyramidal horn antenna specially developed for 5G testing. Covering frequency from 22 GHz to 33 GHz. Design and manufacturing of the antenna were done with detail on quality and low price. With a smart holder, you can fix the antenna in E or H plane, and the connector always pointing backward.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality K type coaxial connector
Product Packaging Includes
- Linear polarized pyramidal horn antenna
- Universal antenna mount
Product Parameters
Product identification
- Product Name H-A33
- Product Category Pyramidal Horn Antenna
Electrical specifications
- Frequency Range 22 GHz – 33 GHz
- VSWR (max.) 1.3
- VSWR (avg.) 1.15
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 15 W / 30 W
- Antenna Factor 38 – 40 dB/m
- Polarization Linear
Physical specifications
- Width 52.4 mm (2.063 in)
- Height 38.4 mm (1.512 in)
- Depth 84 mm (3.307 in)
- Weight 0.145 kg (0.320 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane

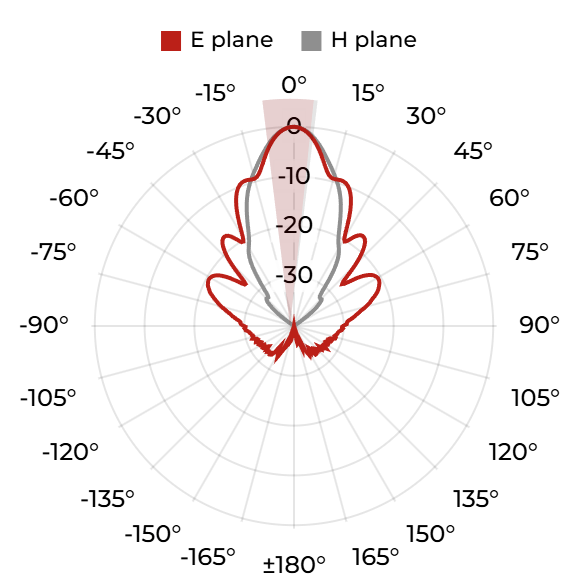

Radiation Patterns
22 GHz
23 GHz
24 GHz
25 GHz
26 GHz
27 GHz
28 GHz
29 GHz
30 GHz
31 GHz
33 GHz
Packaging and Accessories
What's in a box
- H-A33 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
- Custom calibration data
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
