LPP0230 Log-Periodic Antenna | 200 MHz – 3 GHz
with online calibration protocol and dataset

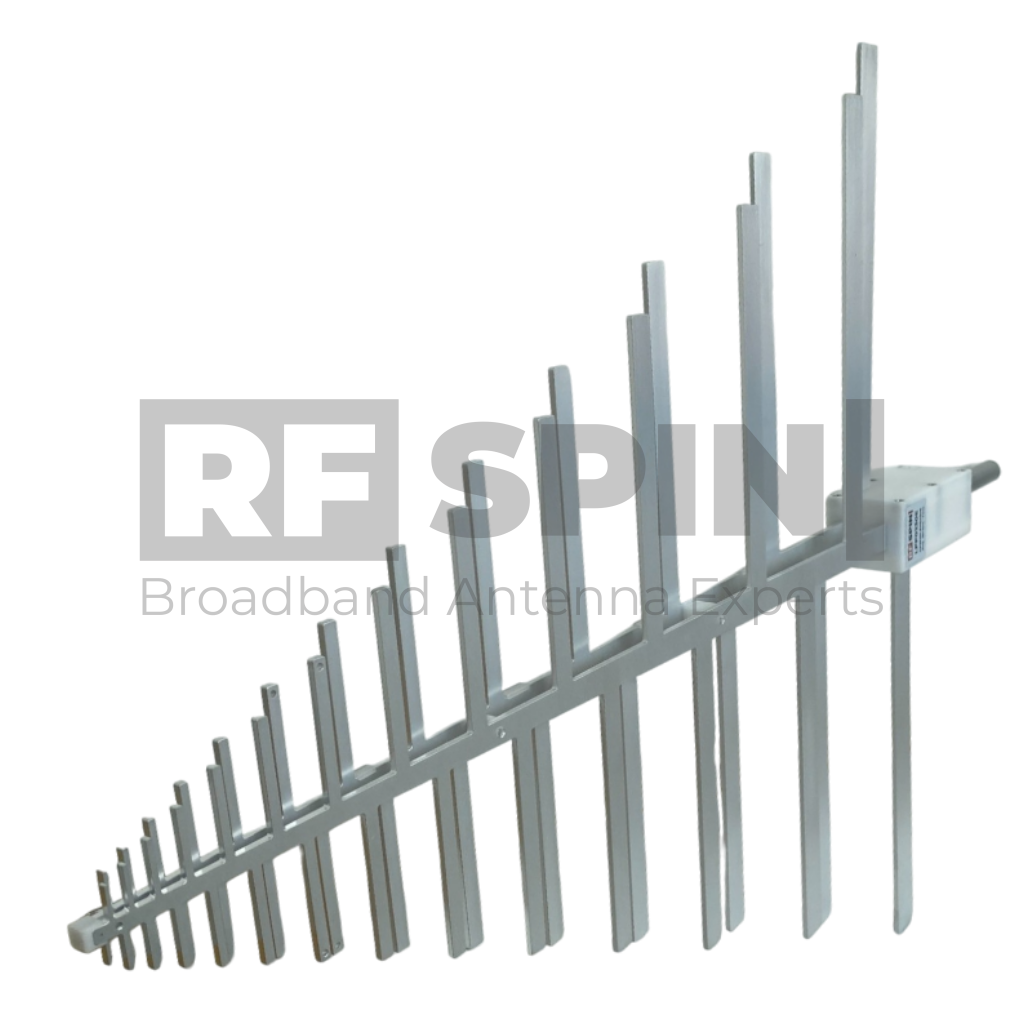

The LPP-0230 is a log-periodic antenna specially developed for EMC/EMI testing. The frequency band is from 200 MHz to 3 GHz.
Frequency Range
200 MHz – 3 GHz
VSWR (avg.)
1.3
Gain
4 – 7 dBi
Impedance
50 Ohm
Connector
N (female)
Power (CW / Peak)
300 W / 500 W
Polarization
Linear
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality N type coaxial connector
Product Packaging Includes
- Linear polarized log-periodic antenna for receiving and transmitting applications
Product Parameters
Product identification
- Product Name LPP0230
- Product Category Log-Periodic Antenna
Electrical specifications
- Frequency Range 200 MHz – 3 GHz
- VSWR (max.) 2
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector N (female)
- Power (CW / Peak) 300 W / 500 W
- Antenna Factor 12 – 32 dB/m
- Polarization Linear
Physical specifications
- Width 805 mm (31.693 in)
- Height 60 mm (2.362 in)
- Depth 1260 mm (49.606 in)
- Weight 1.5 kg (3.307 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Universal antenna mount
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Packaging and Accessories
What's in a box
- LPP0230 Antenna
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
- Universal antenna mount
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
Manufacturer Information
Address
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
