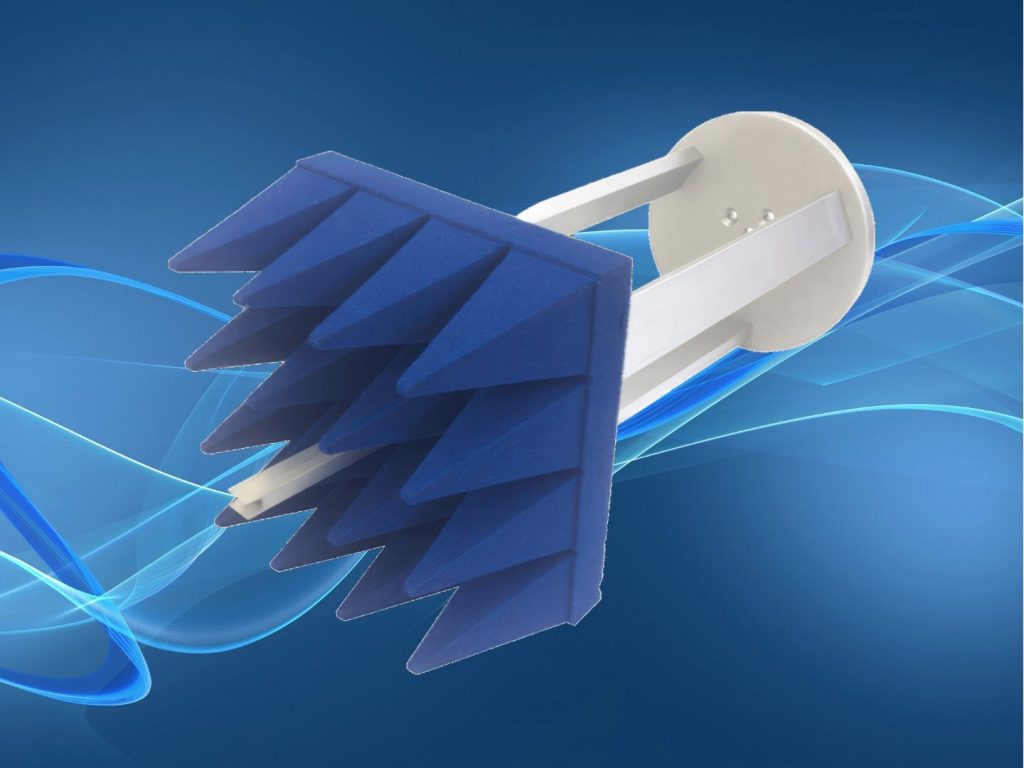

The OEWG1831AA near-field probe covers 17.7 to 31 GHz, with an integrated coaxial connector, absorber shield and standard mounting flange.
Open-ended rectangular waveguides are commonly used as near-field probes. The radiation characteristics of OEWG can be well predicted by analytical formulas that facilitate a simplified probe pattern correction. OEWG is equipped with an integrated coaxial connector, absorber shield, and mechanical interface with a standardized mounting flange. The OEWG1831AA operates on frequencies from 17.7 GHz up to 31 GHz.
Open-ended rectangular waveguides are commonly used as near-field probes in planar near-field and cylindrical near-field antenna measurements. The probe design is based upon standard rectangular waveguides and consequently, the probes can be manufactured for any standard frequency band. The radiation characteristics of OEWG can be well predicted by analytical formulas that facilitate a simplified probe pattern correction.
5.3 – 8.6 dBi · K connector
