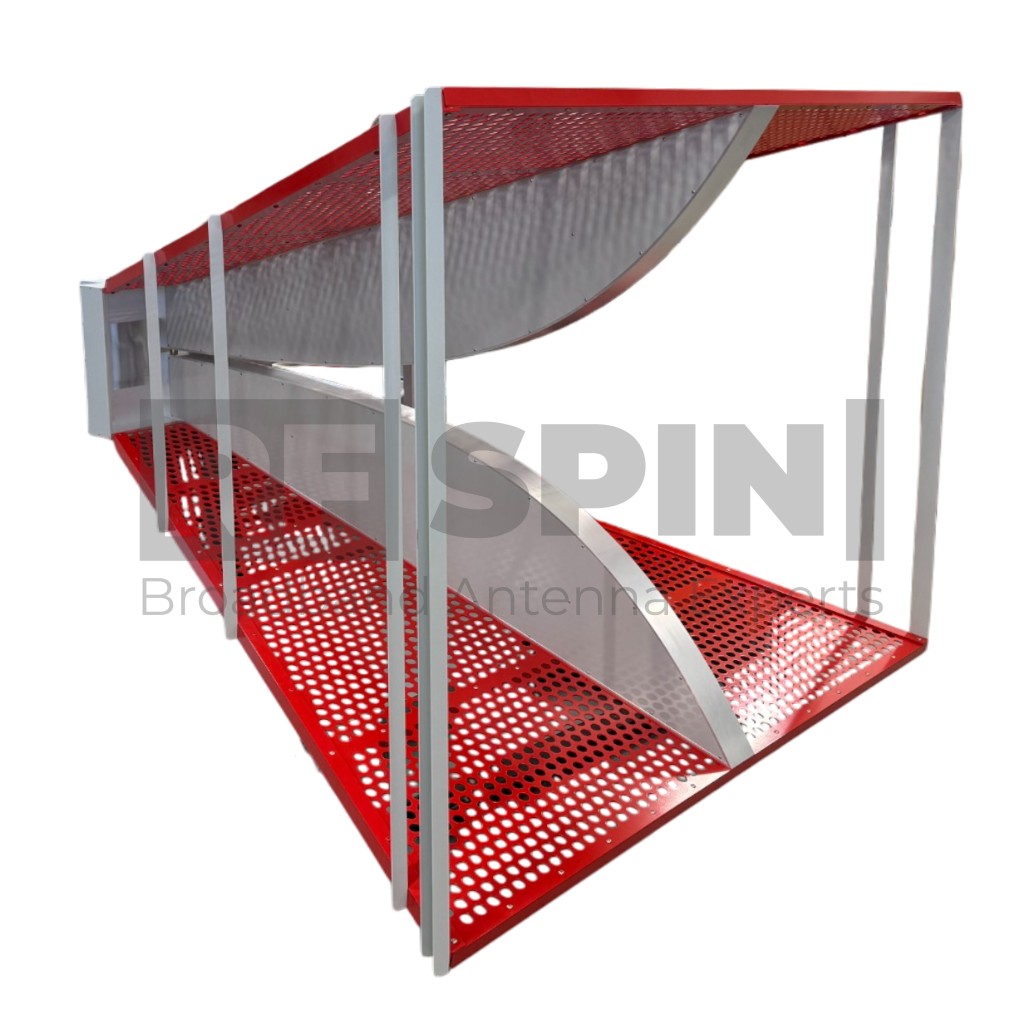

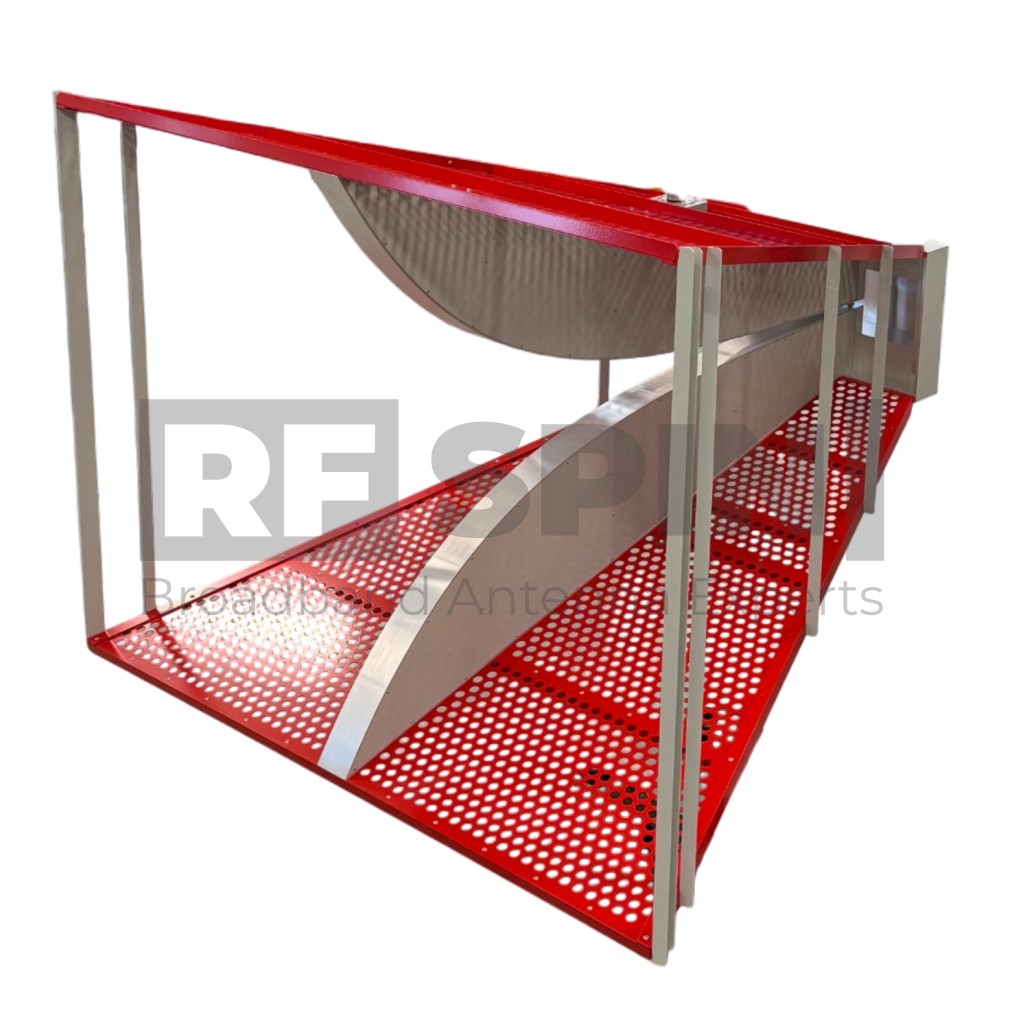

DRH100 Double Ridged Horn Antenna | 100 MHz – 1.4 GHz
with online calibration protocol and dataset

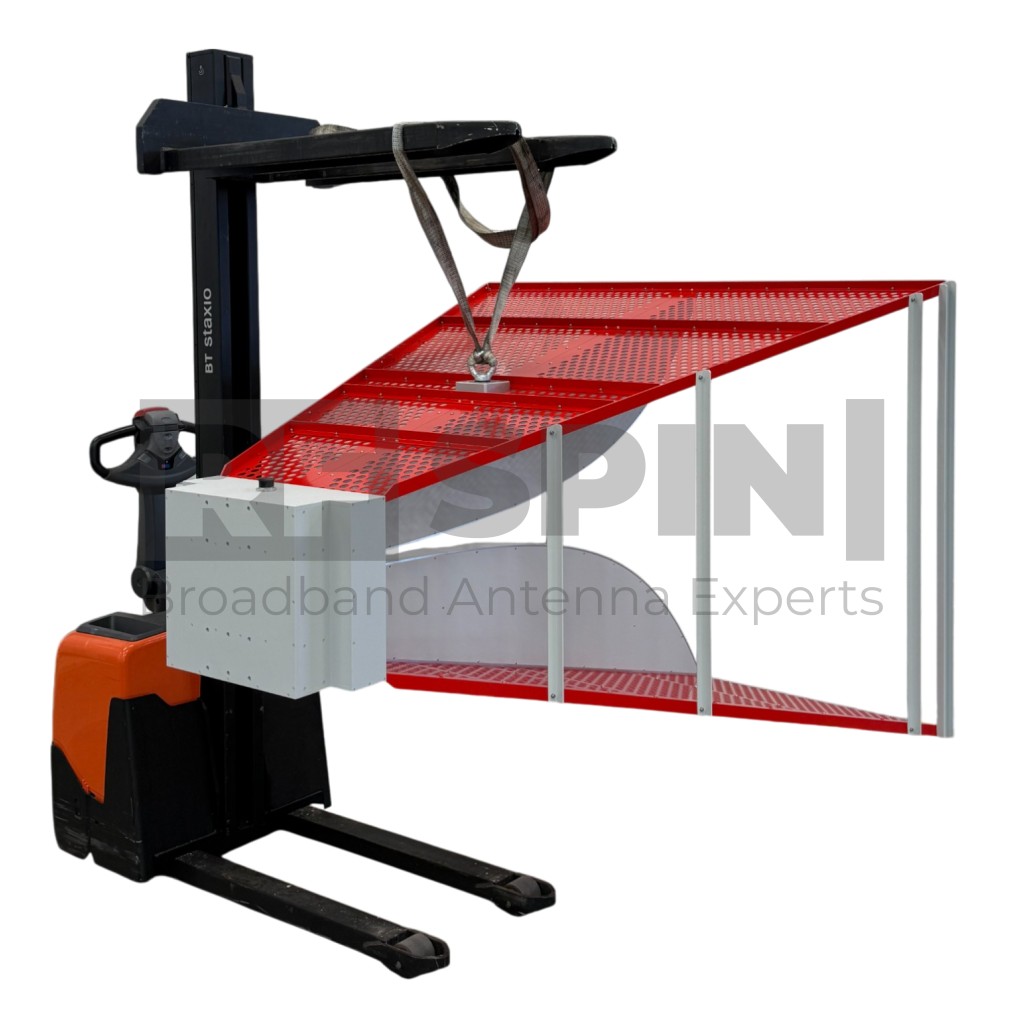

DRH100 operates from 100 MHz up to 1.4 GHz. Thanks to a smart design, the antenna weight is only 70kg while keeping robust and stiff.
-
Datasheet
See radome version ADRWC750Product Highlights
Key Features
- Suitable for EMC/EMI
- Suitable for 5G/6G
- Circular polarization (native)
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
Performance & Versatility
- Radome version available
- Customization available
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH100
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 100 MHz – 1.4 GHz
- VSWR (max.) 1.5
- VSWR (avg.) 1.1
- Impedance 50 Ohm
- Connector 7/16 (female)
- Power (CW / Peak) 2000 W / 3000 W
- Antenna Factor 5 – 27 dB/m
- Polarization Linear
Physical specifications
- Width 1625 mm (63.976 in)
- Height 1221 mm (48.071 in)
- Depth 1785 mm (70.276 in)
- Weight 68 kg (149.914 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns
0.1 GHz
0.2 GHz
0.3 GHz
0.4 GHz
0.5 GHz
0.6 GHz
0.7 GHz
0.8 GHz
0.9 GHz
1 GHz
1.2 GHz
1.4 GHz
Packaging and Accessories
What's in a box
- DRH100 Antenna
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
