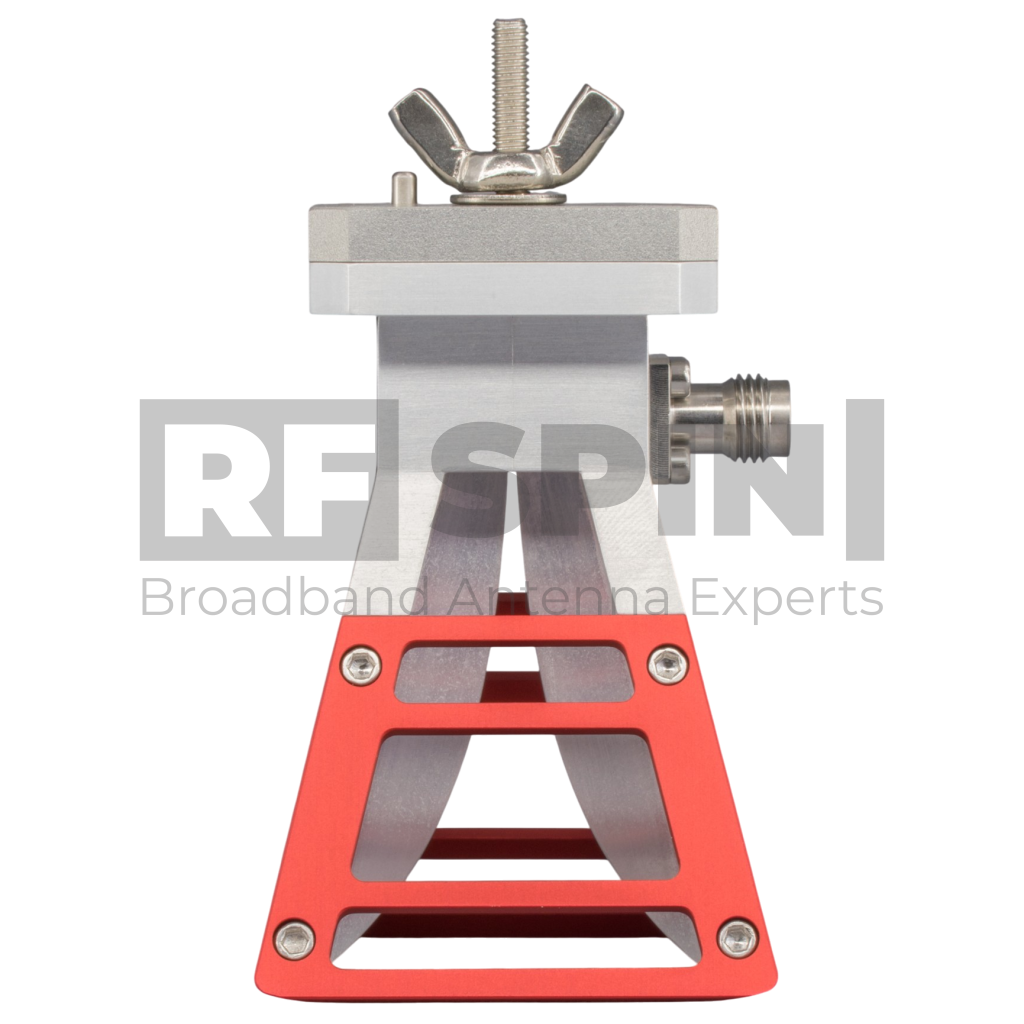

DRH50 Double Ridged Horn Antenna | 4.5 GHz – 50 GHz
with online calibration protocol and dataset

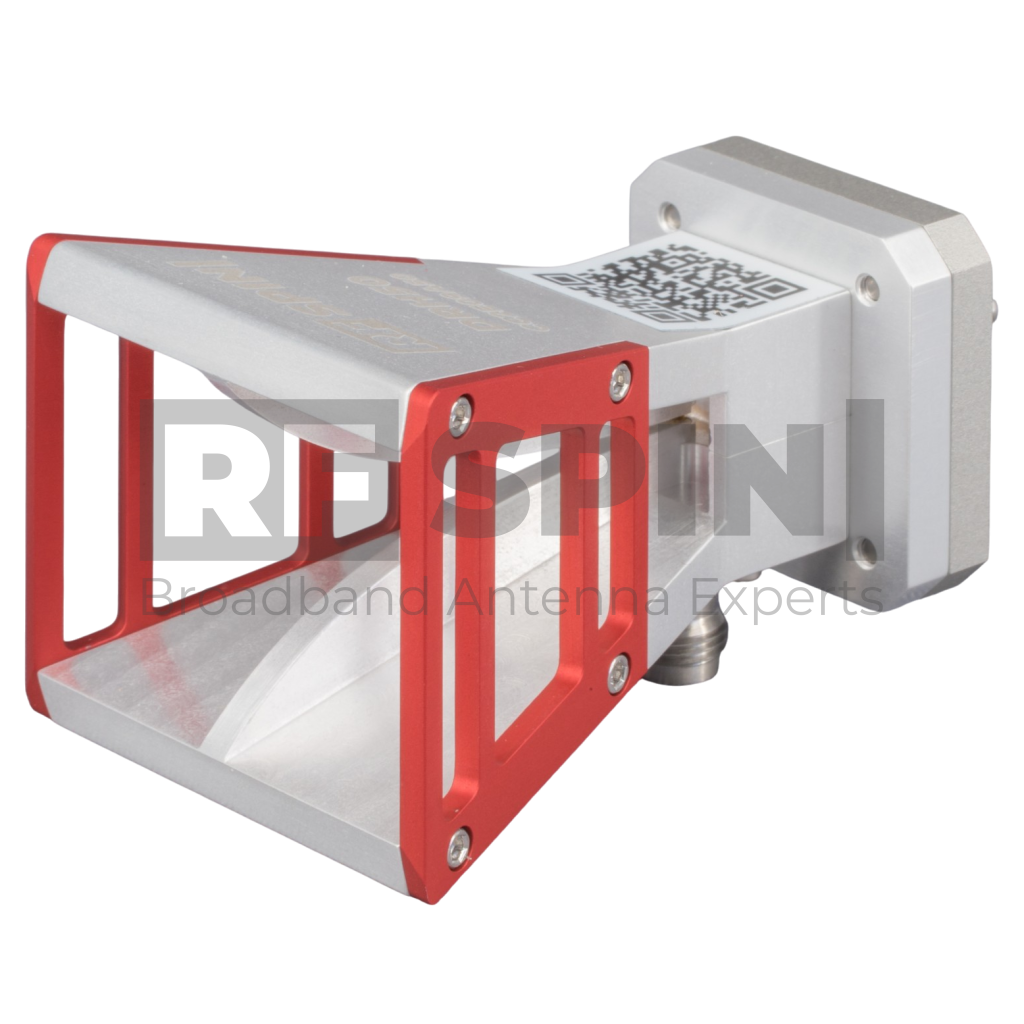

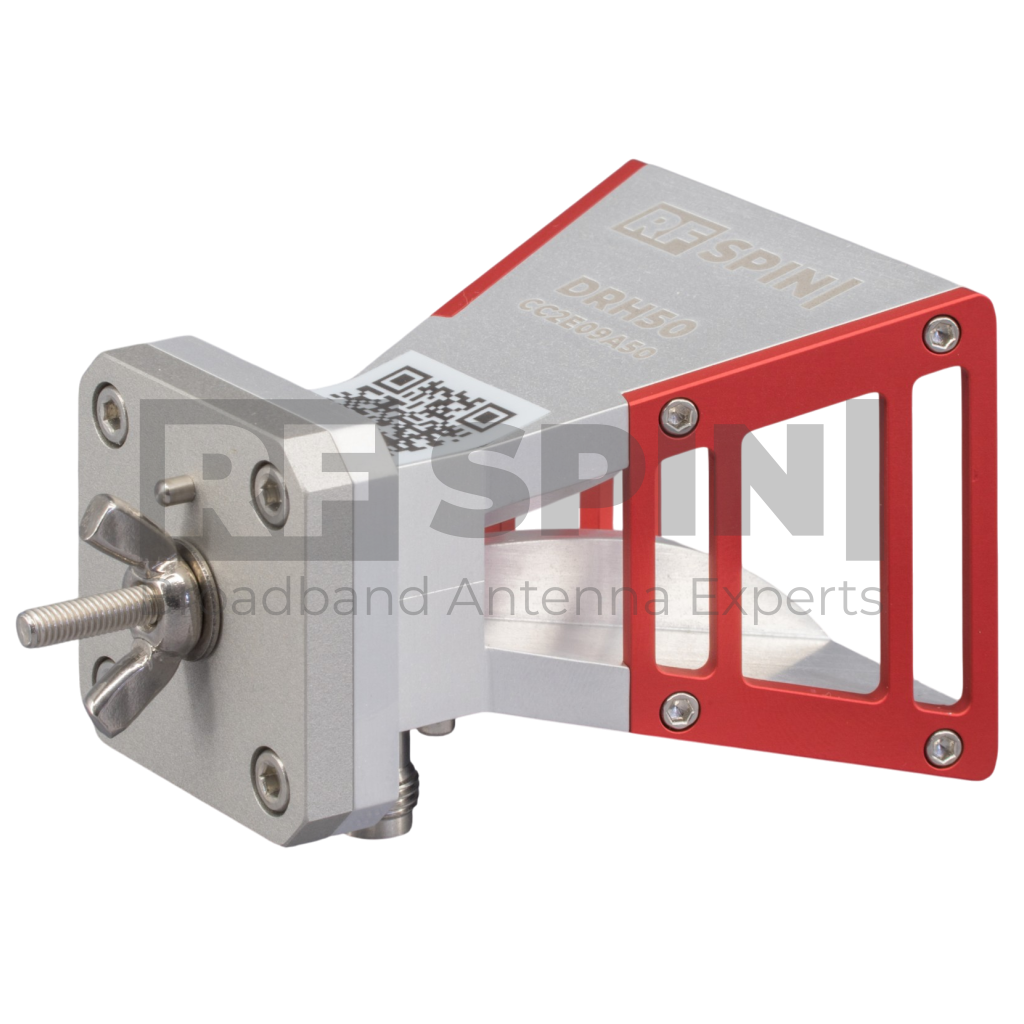

The DRH50 is a compact horn antenna offering excellent electrical performance from 4.5 GHz to 50 GHz. Each unit is individually calibrated in our anechoic chamber and delivered in a custom wooden box for secure storage and protection.
Choose Your Data & Documentation Level
Product Highlights
Key Features
- Suitable for 5G/6G
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
Performance & Versatility

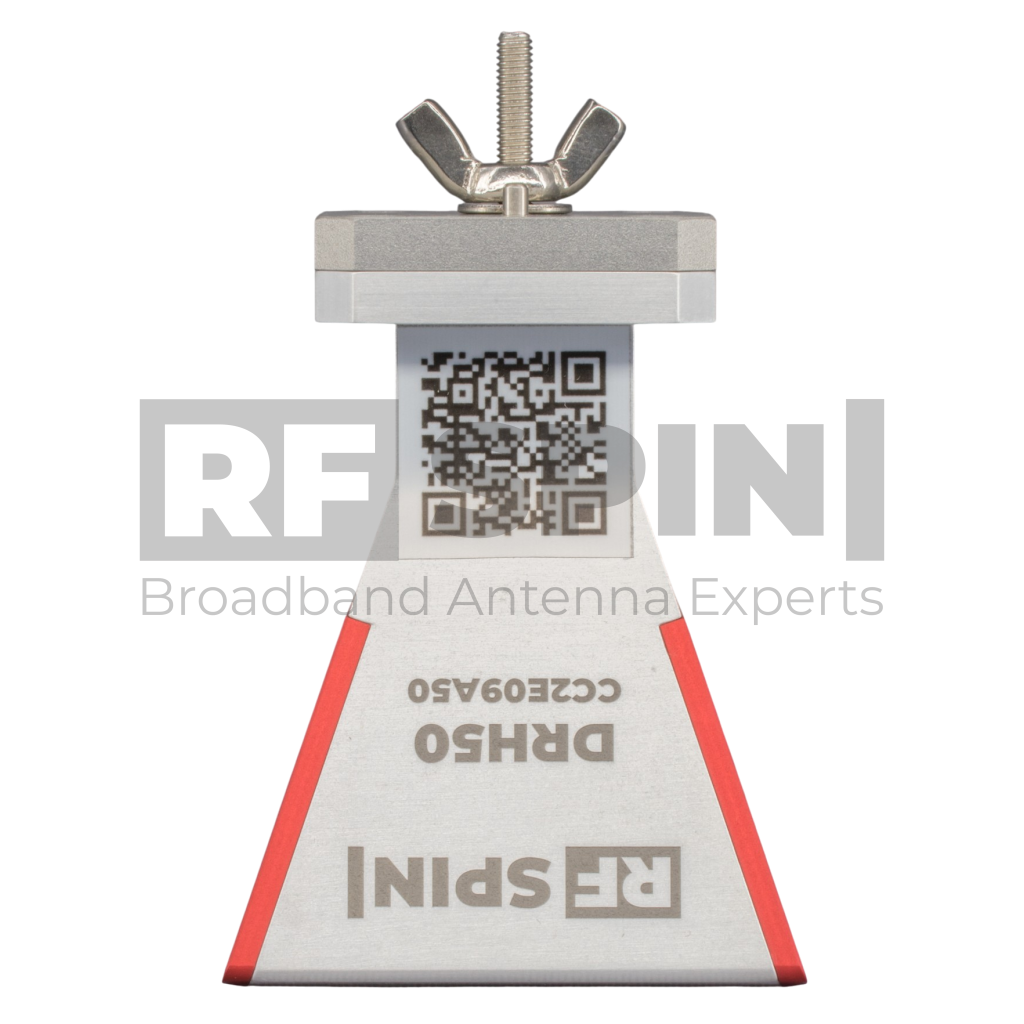

- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Multiple mounting options
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH50
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 4.5 GHz – 50 GHz
- VSWR (max.) 1.55
- VSWR (avg.) 1.25
- Impedance 50 Ohm
- Connector 2.40mm (female)
- Power (CW / Peak) 10 W / 20 W
- Antenna Factor 36 – 49 dB/m
- Polarization Linear
Physical specifications
- Width 43.6 mm (1.717 in)
- Height 60 mm (2.362 in)
- Depth 37.7 mm (1.484 in)
- Weight 0.07 kg (0.154 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane
Radiation Patterns
4.5 GHz
6 GHz
8 GHz
10 GHz
15 GHz
20 GHz
25 GHz
30 GHz
35 GHz
40 GHz
45 GHz
50 GHz
Packaging and Accessories
What's in a box
- DRH50 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Protective wooden case
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Protective wooden case
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
