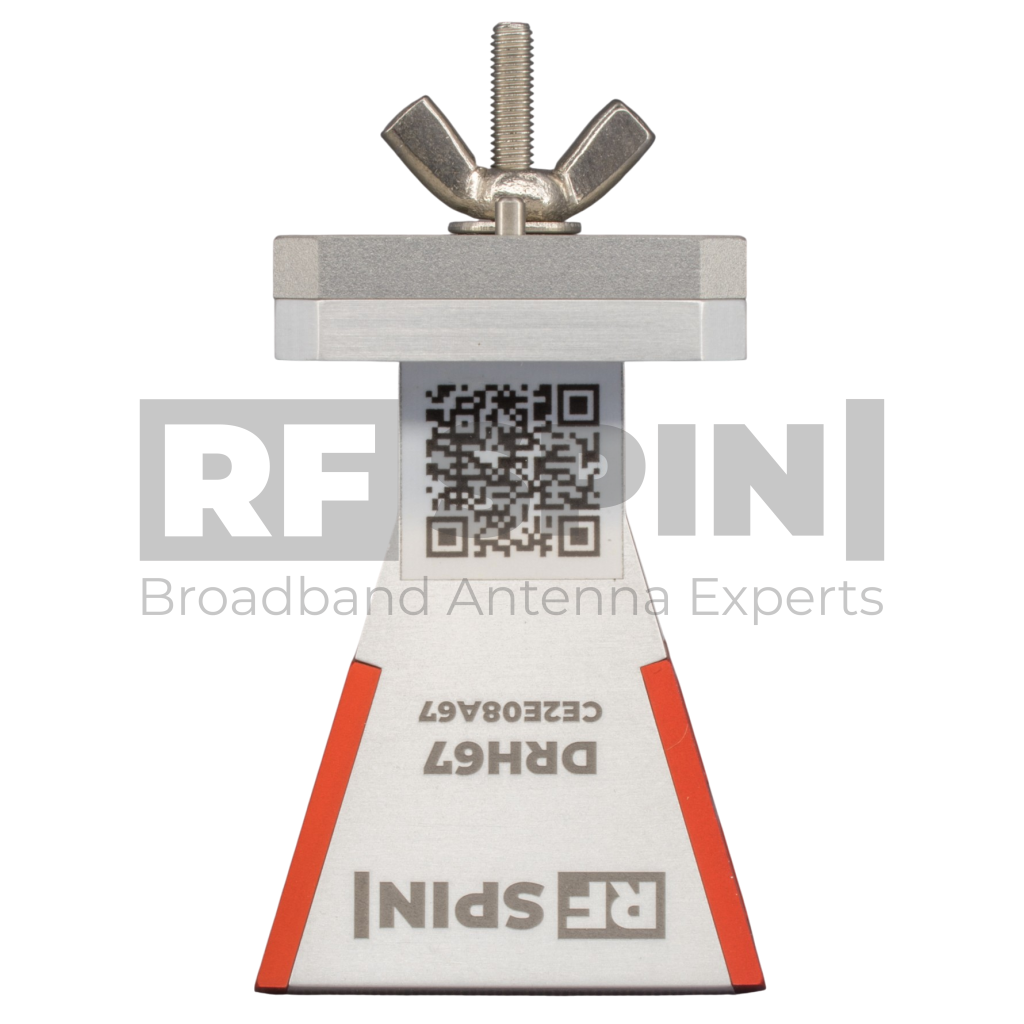

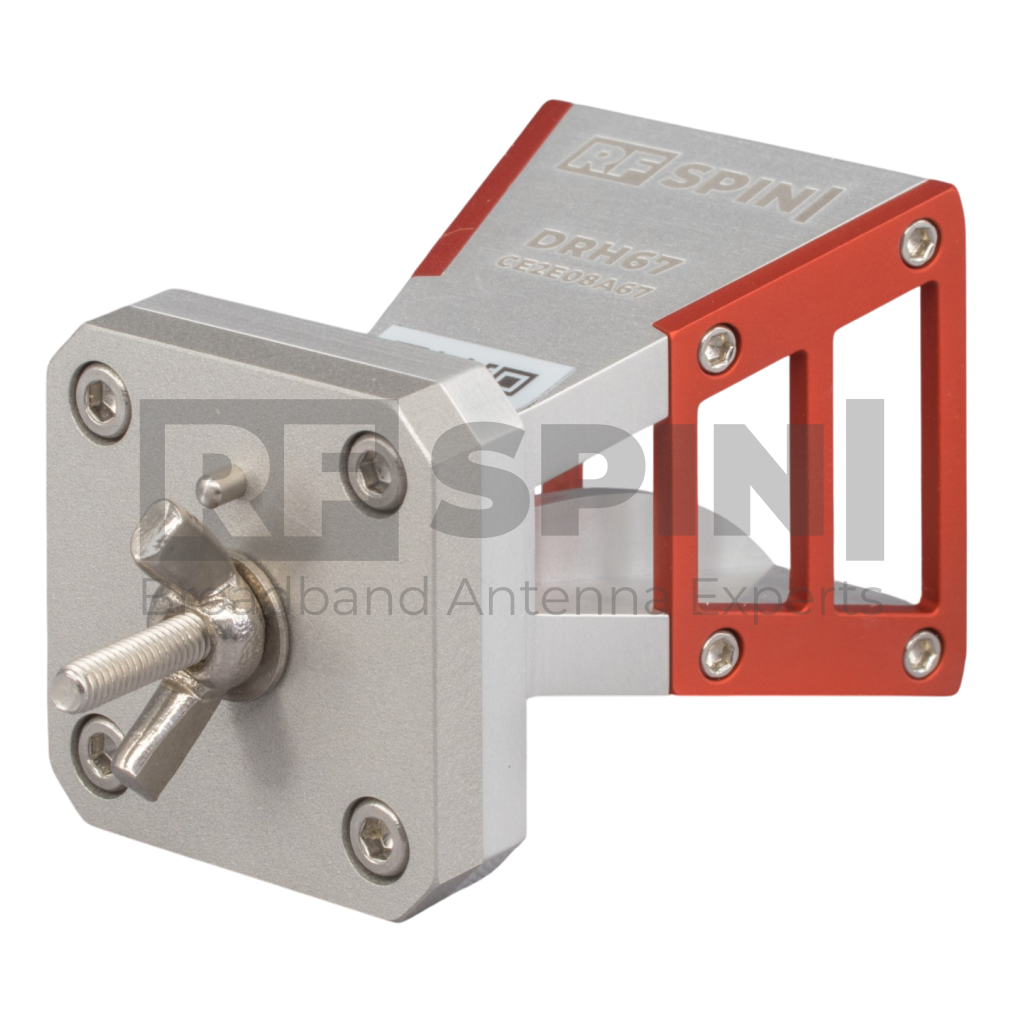

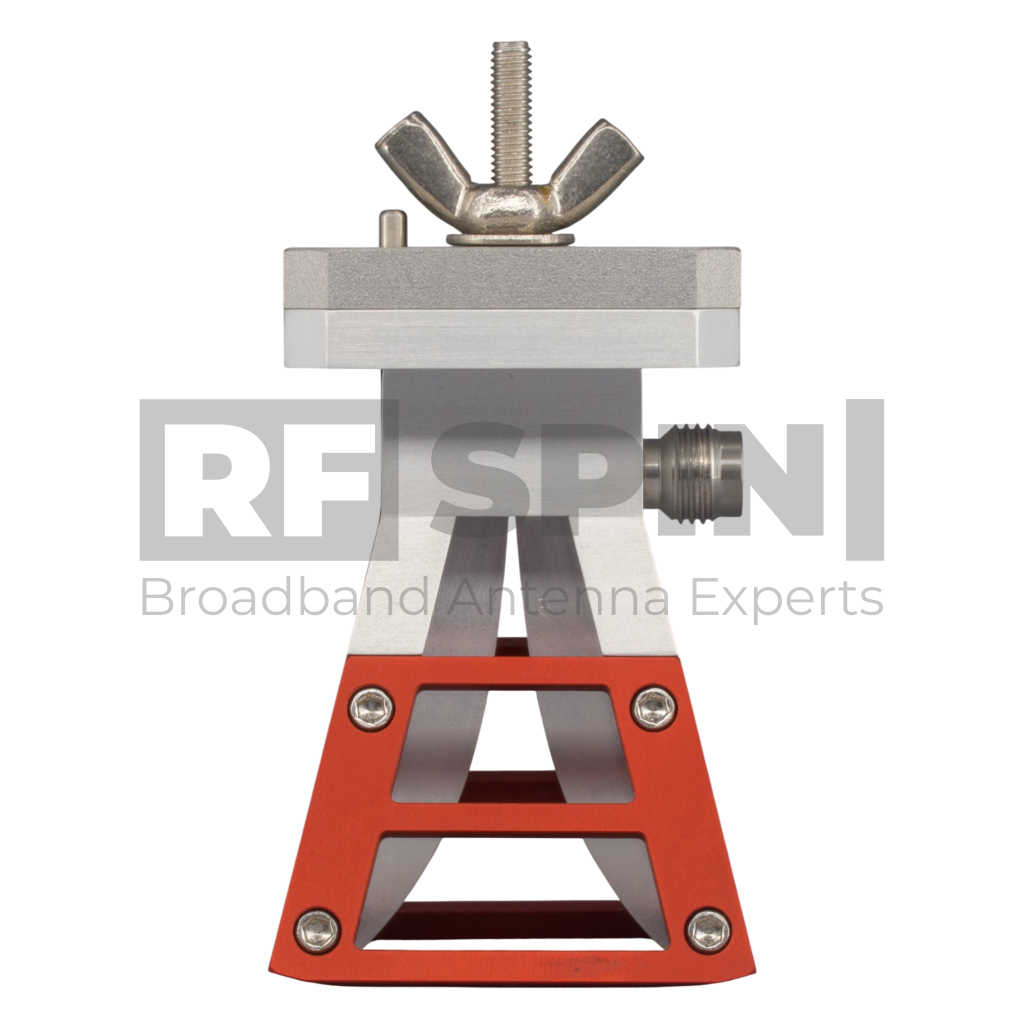

DRH67 Double Ridged Horn Antenna | 6 GHz – 67 GHz
with online calibration protocol and dataset
The DRH67 antenna combines small dimensions with high accuracy and perfect electrical parameters from 6 GHz to 67 GHz. It is placed in a tailor-made wooden box for safe storage, which guarantees that your antenna will always be in the best condition.
Choose Your Data & Documentation Level
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
- Storage in protective tailor-made wooden box
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality 1.85mm type coaxial connector
Product Packaging Includes
- Adapter with ¼ inch inner thread, supplied with antenna
- Linear polarized double ridged broadband horn antenna
Product Parameters
Product identification
- Product Name DRH67
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 6 GHz – 67 GHz
- VSWR (max.) 1.9
- VSWR (avg.) 1.35
- Impedance 50 Ohm
- Connector 1.85mm (female)
- Power (CW / Peak) 5 W / 10 W
- Antenna Factor 38.5 – 50.5 dB/m
- Polarization Linear
Physical specifications
- Width 32.7 mm (1.287 in)
- Height 48.5 mm (1.909 in)
- Depth 32 mm (1.260 in)
- Weight 0.05 kg (0.110 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane
Radiation Patterns
6 GHz
10 GHz
16 GHz
22 GHz
28 GHz
34 GHz
40 GHz
46 GHz
52 GHz
58 GHz
64 GHz
67 GHz
Packaging and Accessories
What's in a box
- DRH67 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Protective wooden case
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Protective wooden case
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
