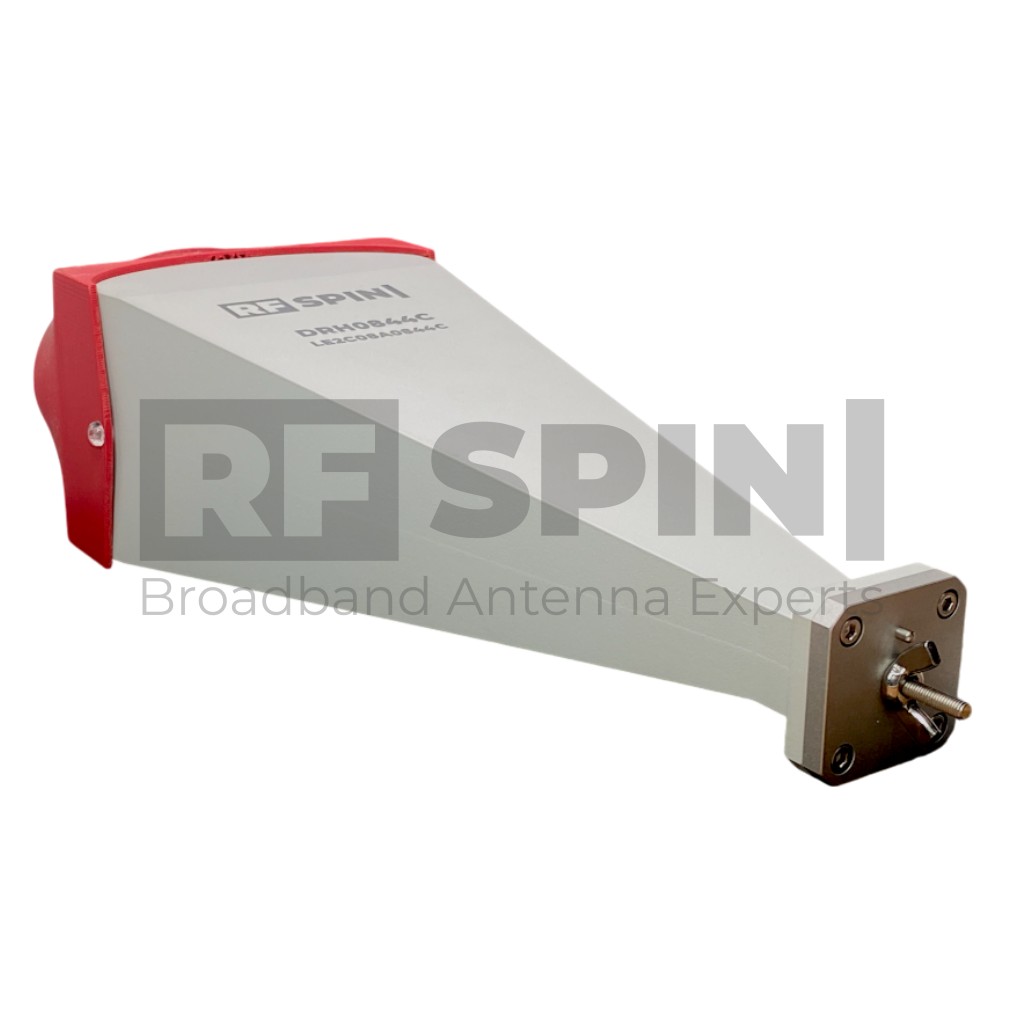

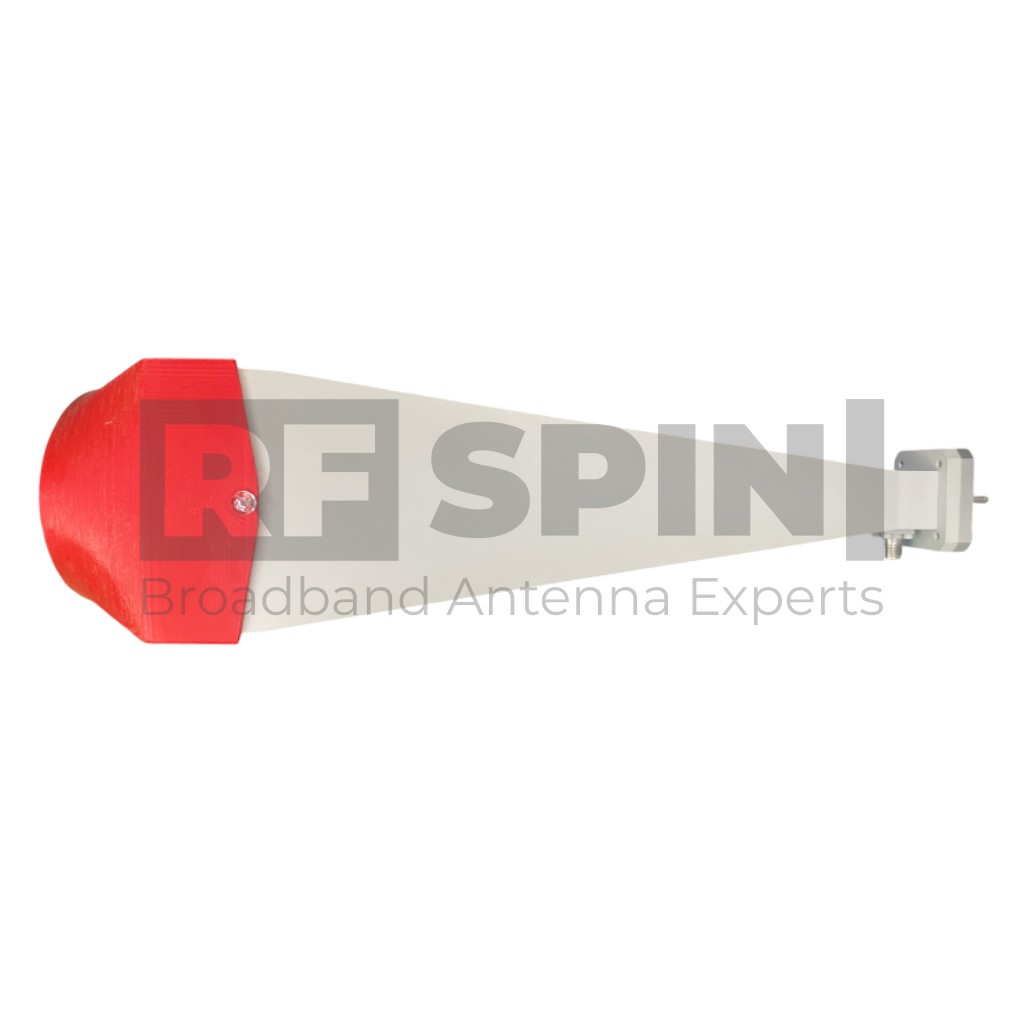

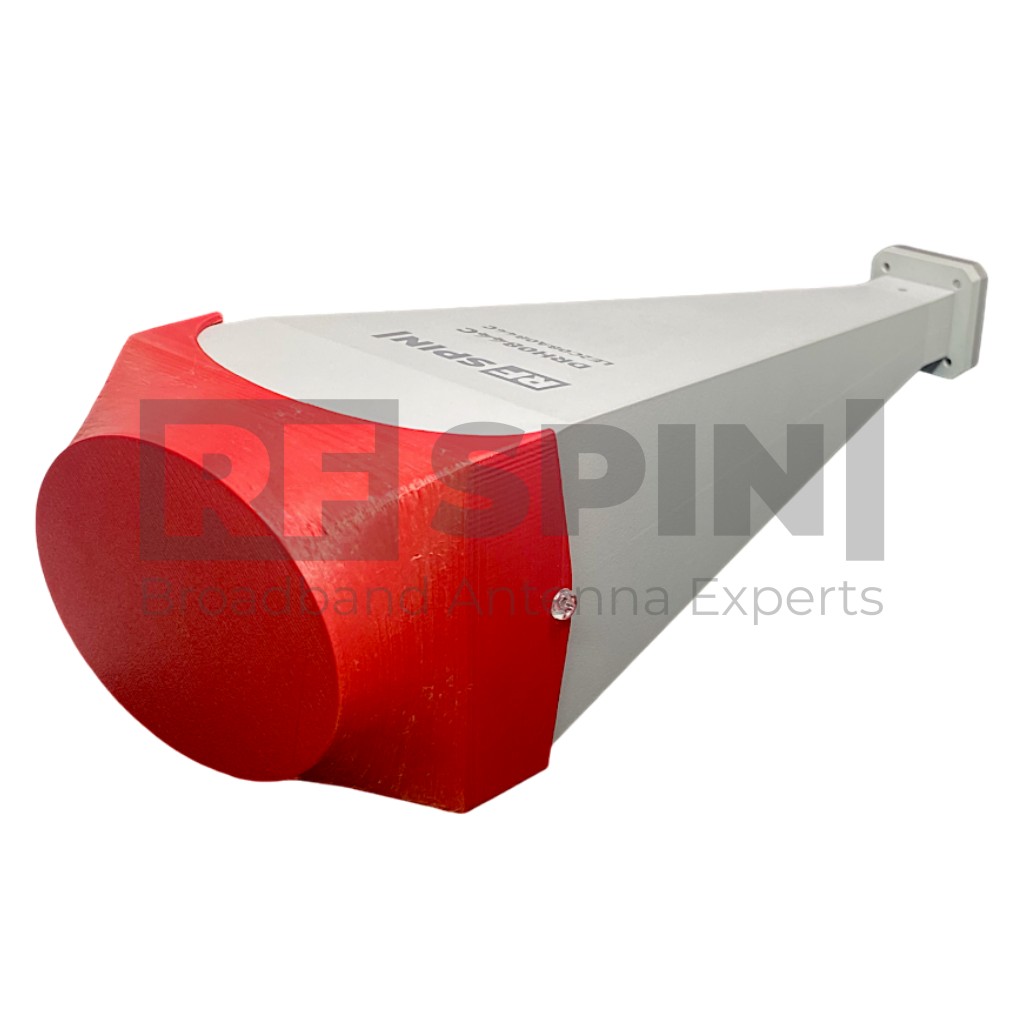

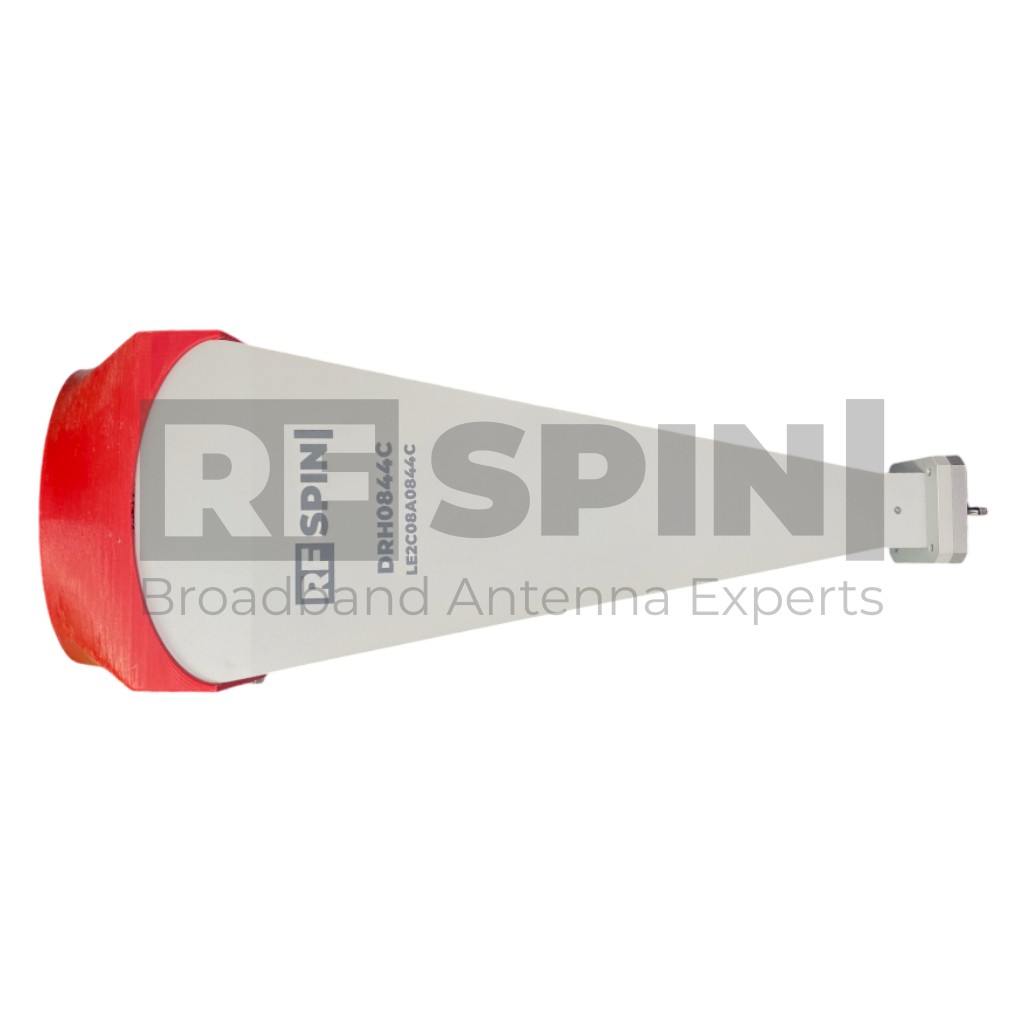

DRH0844C Double Ridged Horn Antenna | 8 GHz – 44 GHz
with online calibration protocol and dataset
The DRH0844C is a high-gain broadband horn antenna operating from 8 GHz to 44 GHz. It features our 3D-printed antenna lens – a technology patented in the USA – which brings the maximum gain to 29 dBi without compromising bandwidth. Each unit is individually calibrated in our anechoic chamber, and test data is digitally available via QR code.
Choose Your Data & Documentation Tier
US-patented antenna lens (U.S. Patent No. 12,665,315) About Lens Technology
See base version DRH0844Features and Specifications
Technical Performance
- High gain
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
Design and Surface Treatment
- High-quality lens plastic
- Corrosion-resistant coating
- Includes standard mount
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality K type coaxial connector
Product Packaging Includes
- Antenna with lens
- Adapter with ¼ inch inner thread, supplied with antenna
Product Parameters
Product identification
- Product Name DRH0844C
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 8 GHz – 44 GHz
- VSWR (max.) 2.2
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 15 W / 30 W
- Antenna Factor 32 – 35 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Physical specifications
- Width 89.5 mm (3.524 in)
- Height 67 mm (2.638 in)
- Depth 245 mm (9.646 in)
Mechanical Drawings
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth

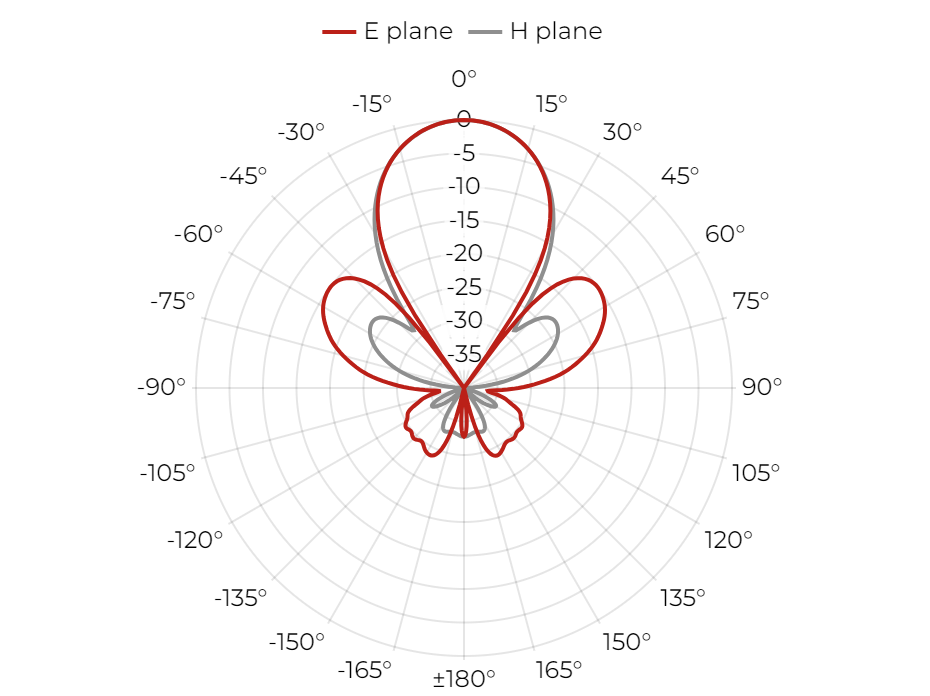

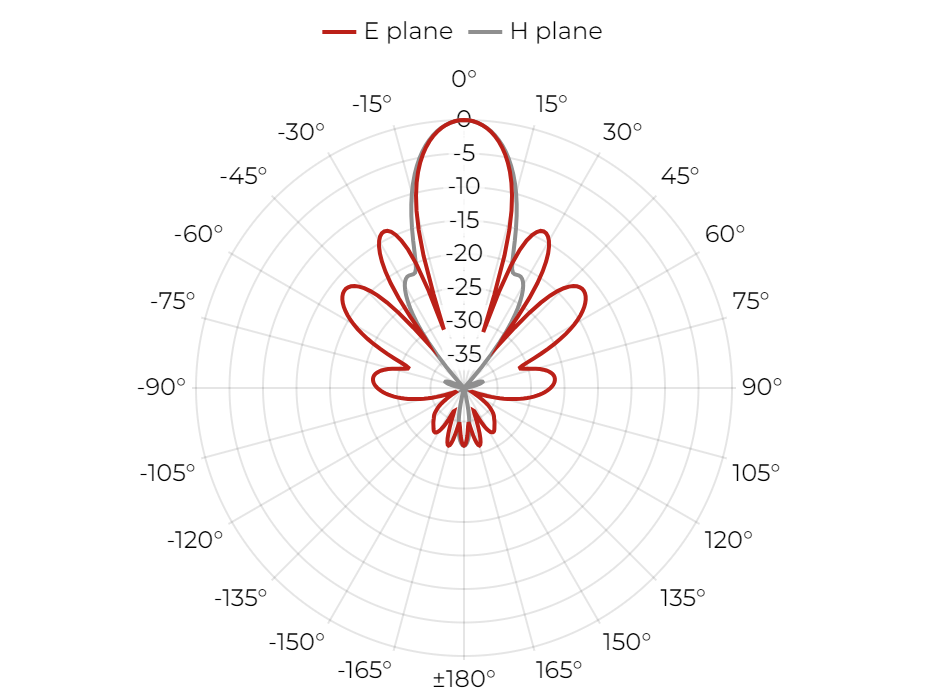

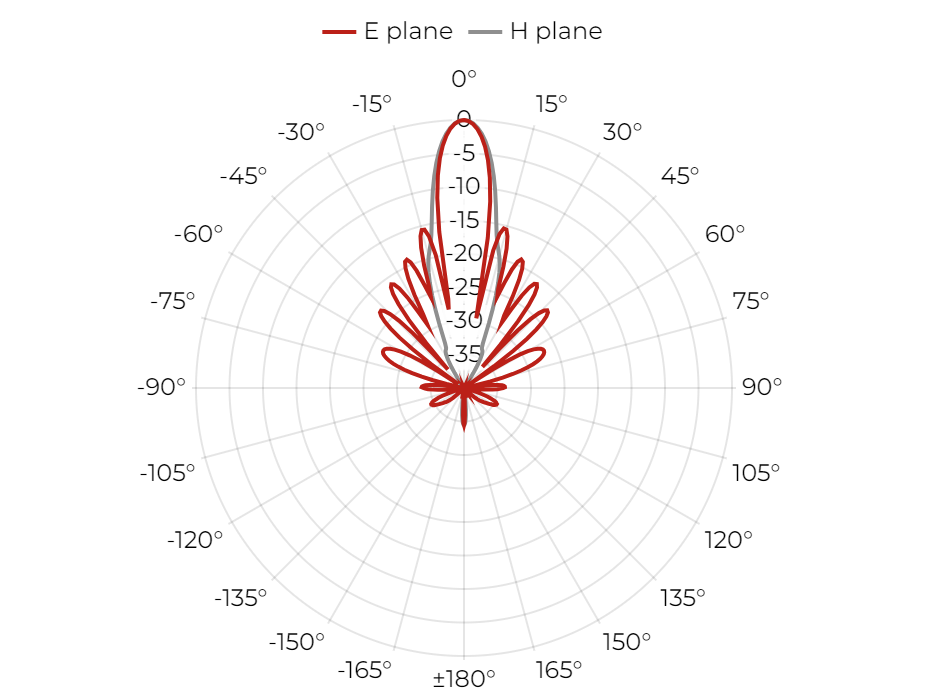

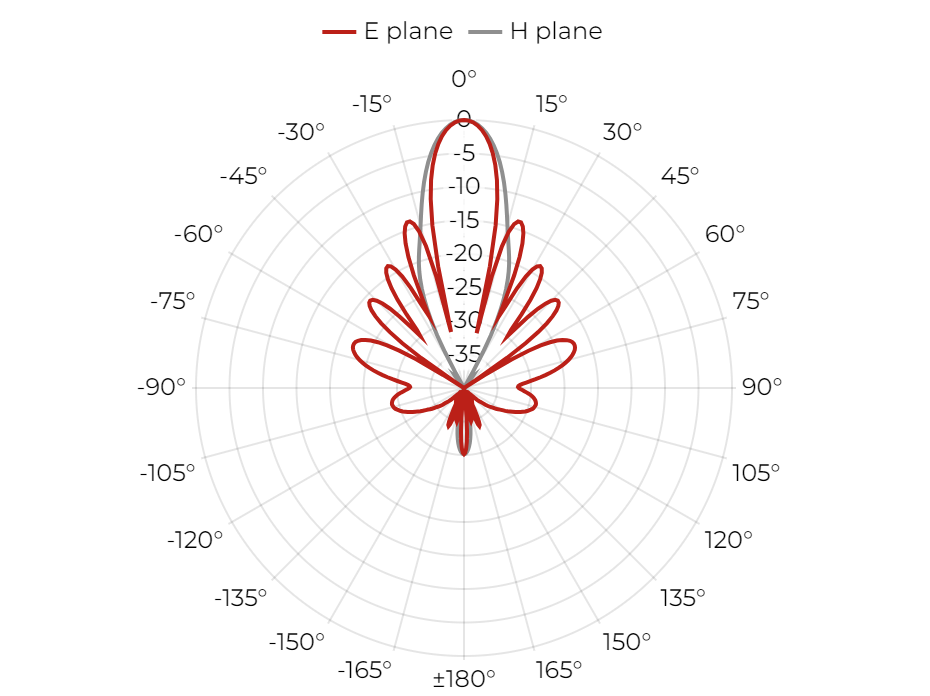

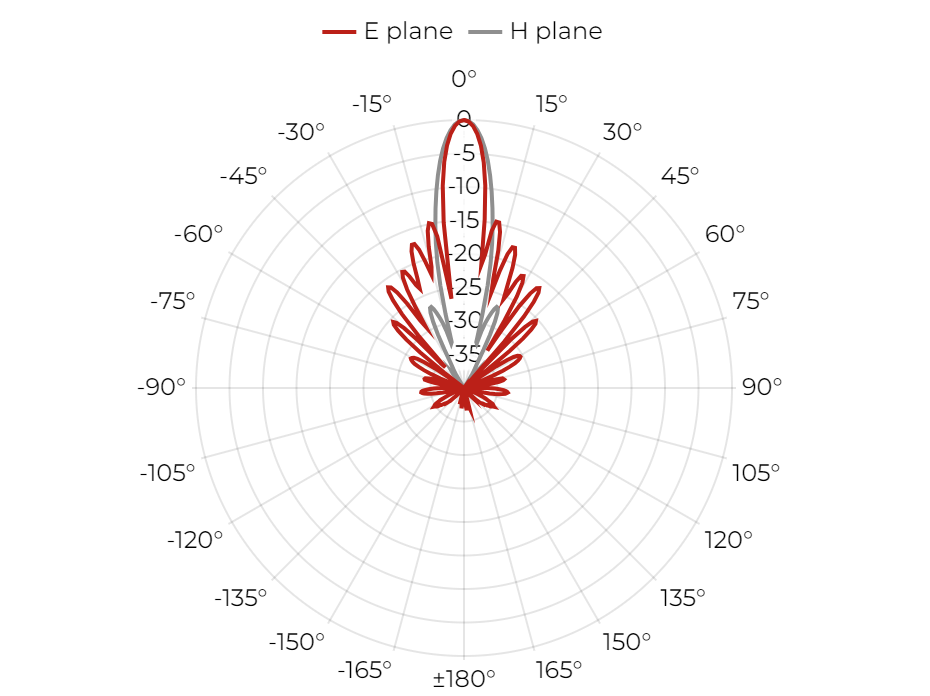

Radiation Patterns
8 GHz
10 GHz
14 GHz
17 GHz
20 GHz
23 GHz
26 GHz
29 GHz
32 GHz
35 GHz
40 GHz
44 GHz
Packaging and Accessories
What's in a box
- DRH0844C Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
