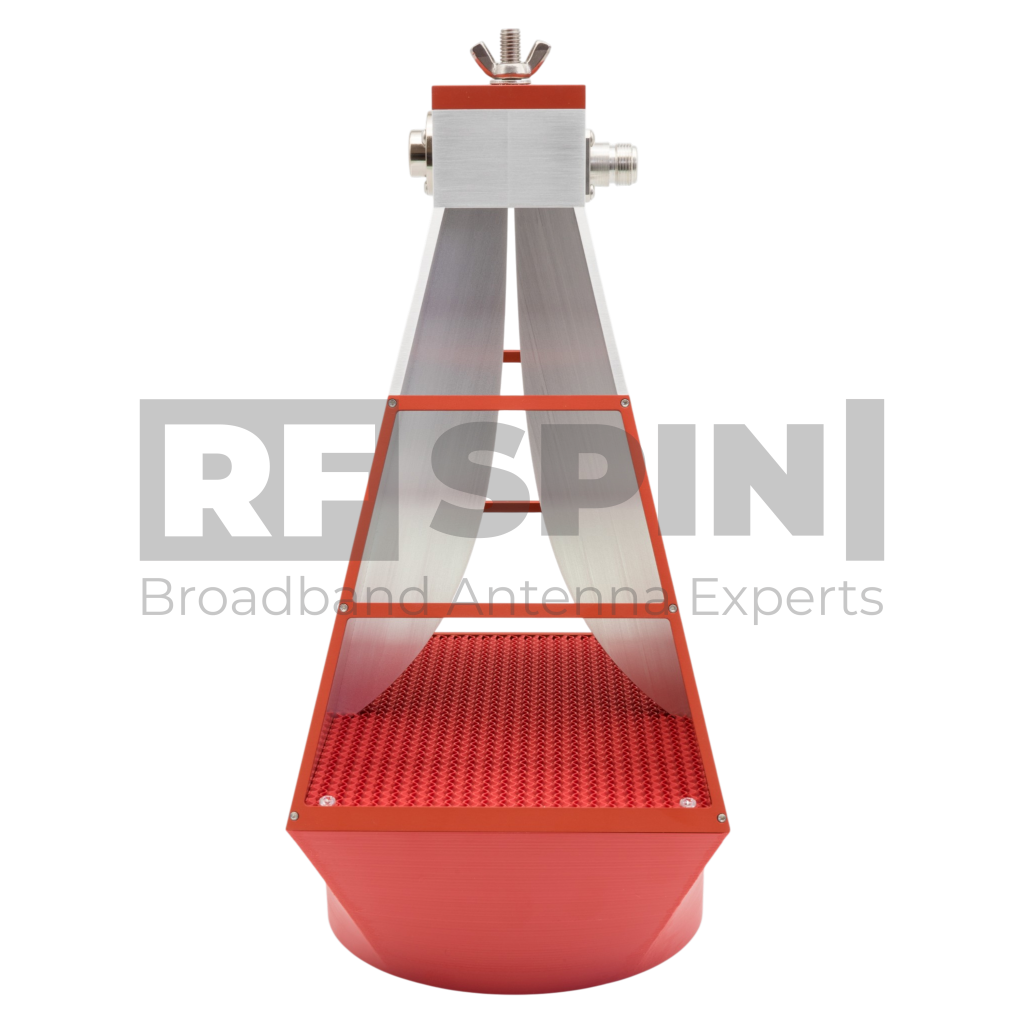

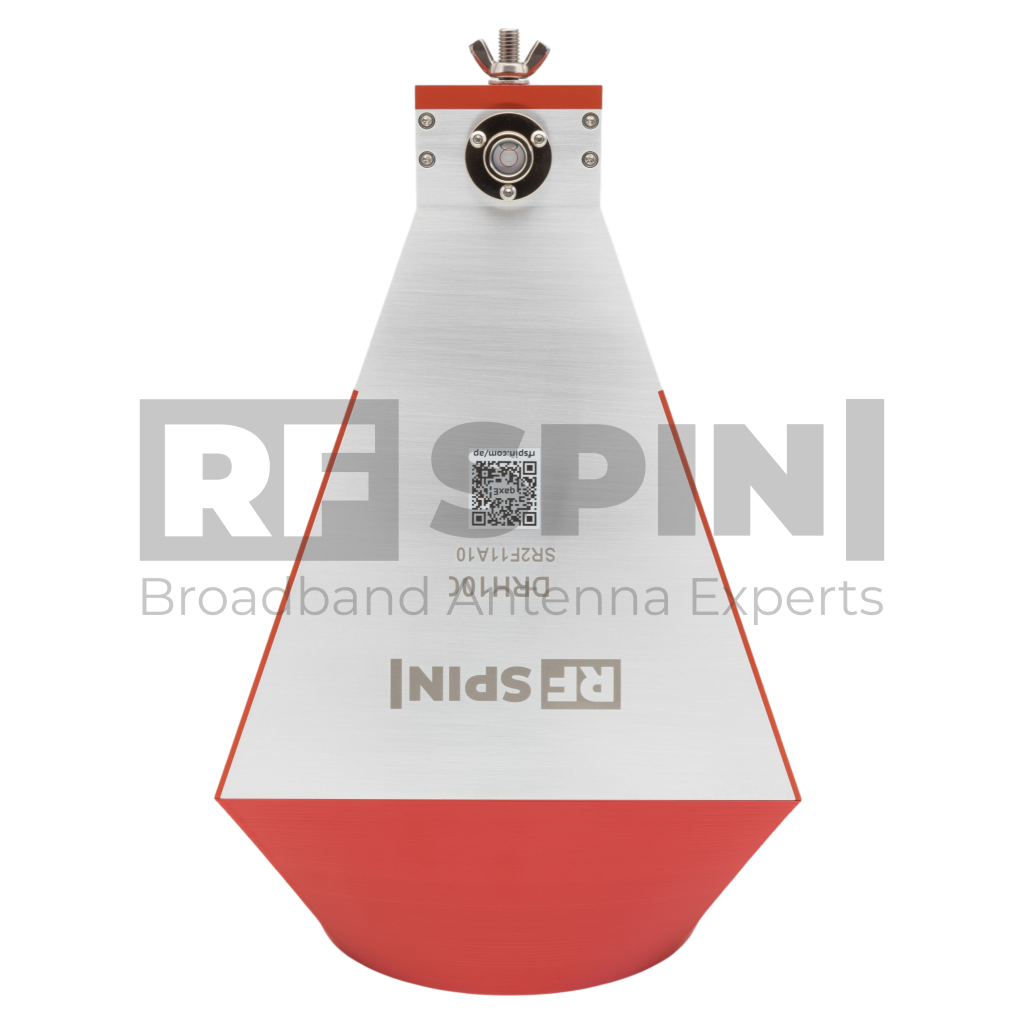

DRH10C Double Ridged Horn Antenna | 740 MHz – 10.5 GHz
with online calibration protocol and dataset

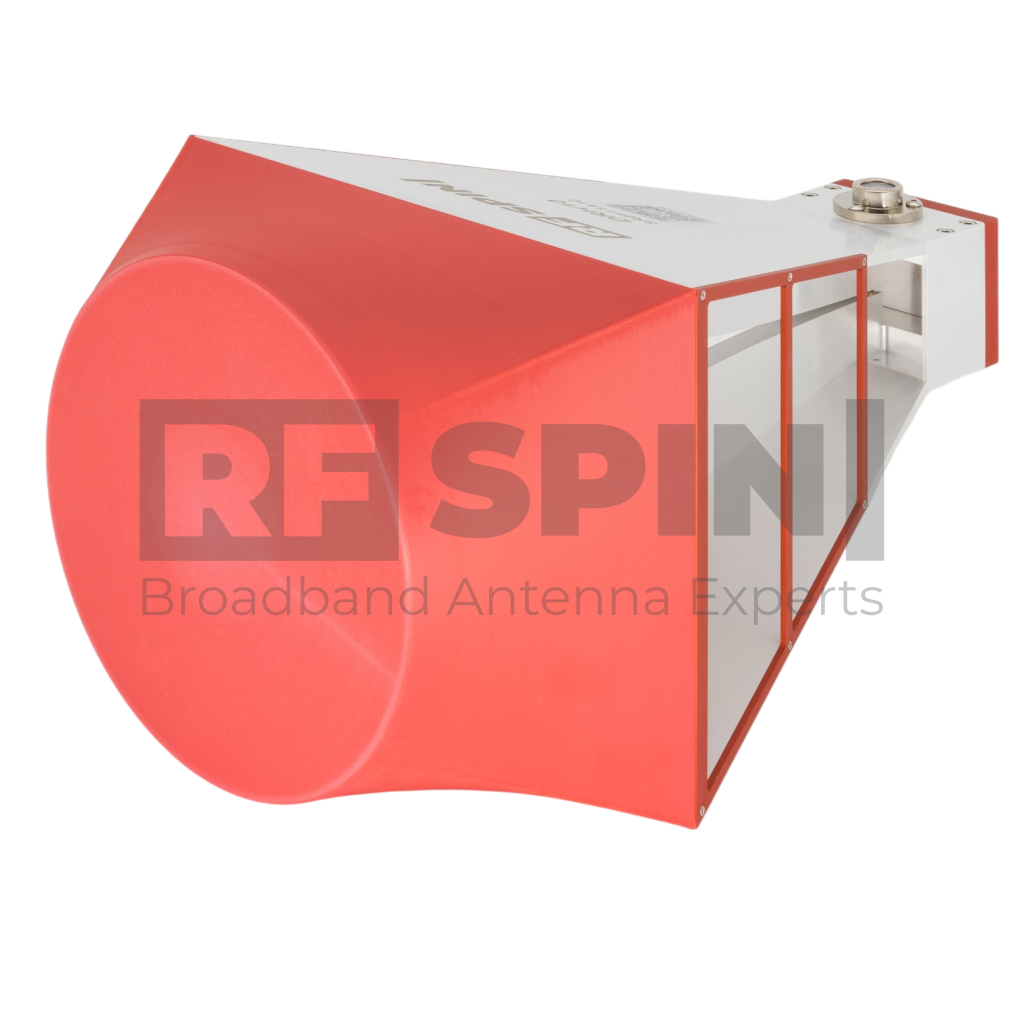

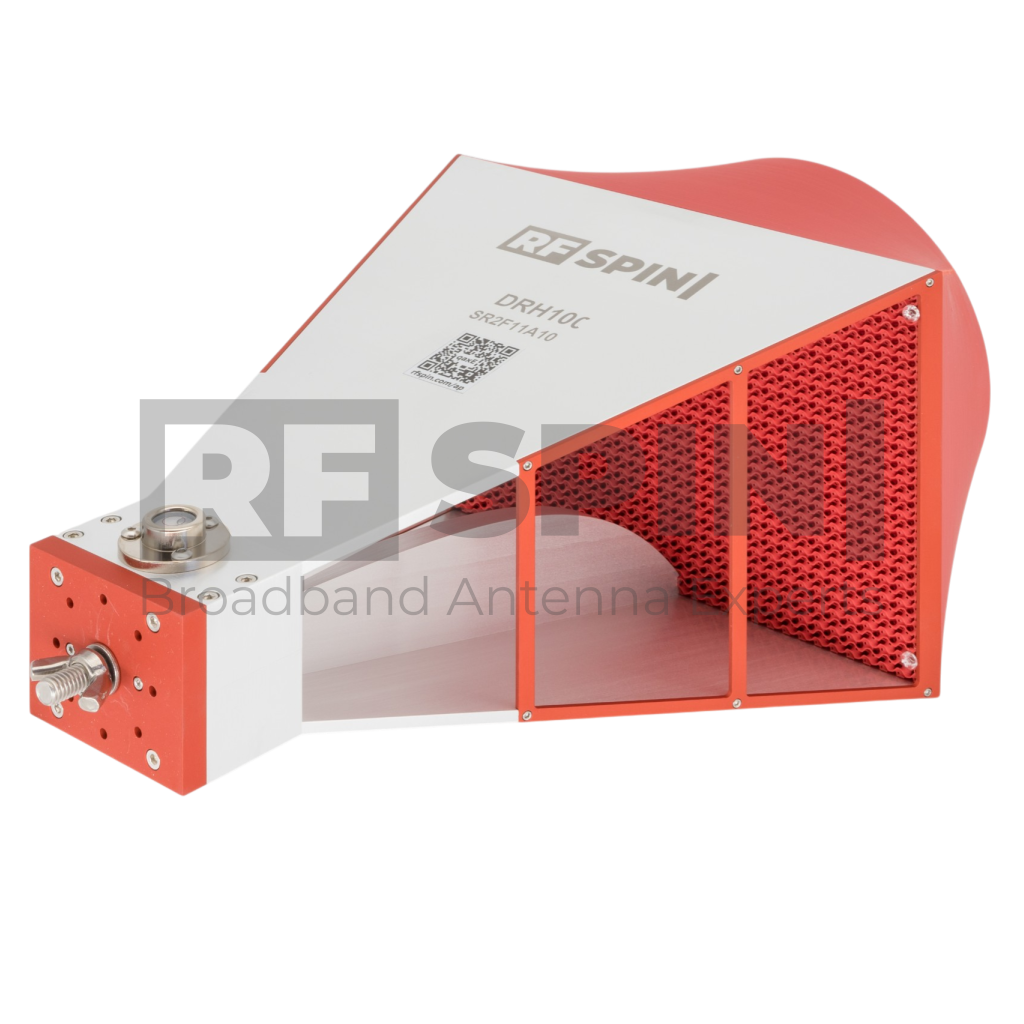

The well-known model DRH10 is now enhanced with an antenna lens that is made by special 3D print technology. This results in rapid gain increase while keeping small dimensions.
Features and Specifications
Technical Performance
- High gain
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
- Very precise spirit level
Manufacturing Technology
- Extremely durable
- High quality N type coaxial connector
Product Packaging Includes
- Antenna with lens
- Adapter with ¼ inch inner thread, supplied with antenna
Product Parameters
Product identification
- Product Name DRH10C
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 740 MHz – 10.5 GHz
- VSWR (max.) 2.2
- VSWR (avg.) 1.25
- Impedance 50 Ohm
- Connector N (female)
- Power (CW / Peak) 150 W / 250 W
- Antenna Factor 23 – 35 dB/m
- Polarization Linear
Physical specifications
- Width 204 mm (8.031 in)
- Height 315 mm (12.402 in)
- Depth 148 mm (5.827 in)
- Weight 1.761 kg (3.882 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Radiation Patterns
0.75 GHz
1 GHz
2 GHz
3 GHz
4 GHz
5 GHz
6 GHz
7 GHz
8 GHz
9 GHz
10 GHz
10.5 GHz
Packaging and Accessories
What's in a box
- DRH10C Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
- Universal antenna mount
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
