DRH10R Double Ridged Horn Antenna | 740 MHz – 10.5 GHz
with online calibration protocol and dataset

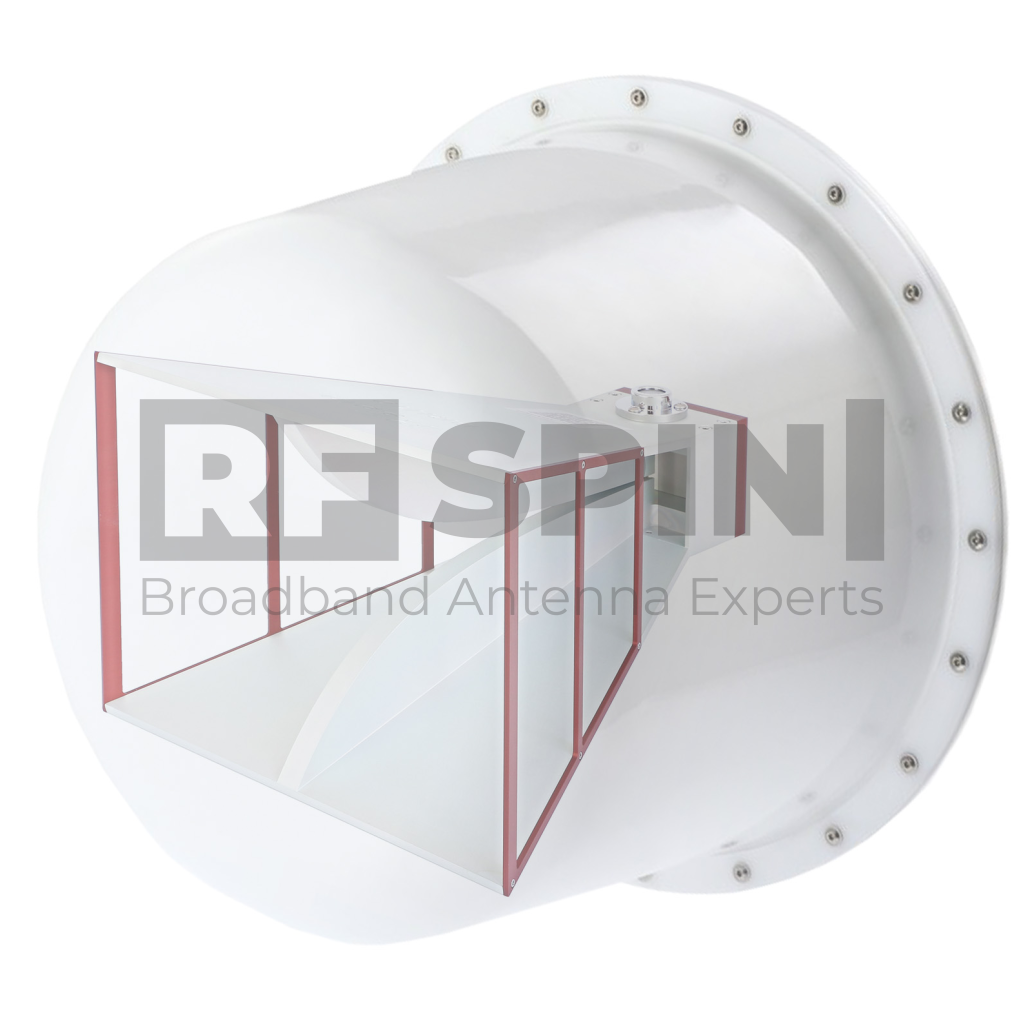

The DRH10R delivers high-accuracy measurements across 740 MHz to 10.5 GHz. Designed for reliability in extreme environments, its custom radome provides excellent weather resistance and minimal electromagnetic distortion. Calibration is performed in our anechoic chamber, with complete data available digitally through a dedicated QR code.
Choose Your Data & Documentation Tier
Product Highlights
Key Features
- Suitable for EMC/EMI
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
Performance & Versatility
- QR code to access Antenna Portal
- Antenna with radome
- Wide bandwidth and low return loss
- Multiple mounting options
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH10R
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 740 MHz – 10.5 GHz
- VSWR (max.) 2.4
- VSWR (avg.) 1.4
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 150 W / 250 W
- Antenna Factor 22 – 36 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range -10°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Universal antenna mount
Physical specifications
- Width 360 mm (14.173 in)
- Height 293 mm (11.535 in)
- Depth 360 mm (14.173 in)
- Weight 2.533 kg (5.584 lb)
3D View
Interactive WebGL model · drag to rotate · scroll to zoom · red bar shows scale
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Radiation Patterns
0.75 GHz
1 GHz
2 GHz
3 GHz
4 GHz
5 GHz
6 GHz
7 GHz
8 GHz
9 GHz
10 GHz
10.5 GHz
Packaging and Accessories
What's in a box
- DRH10R Device
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
- Universal antenna mount
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
