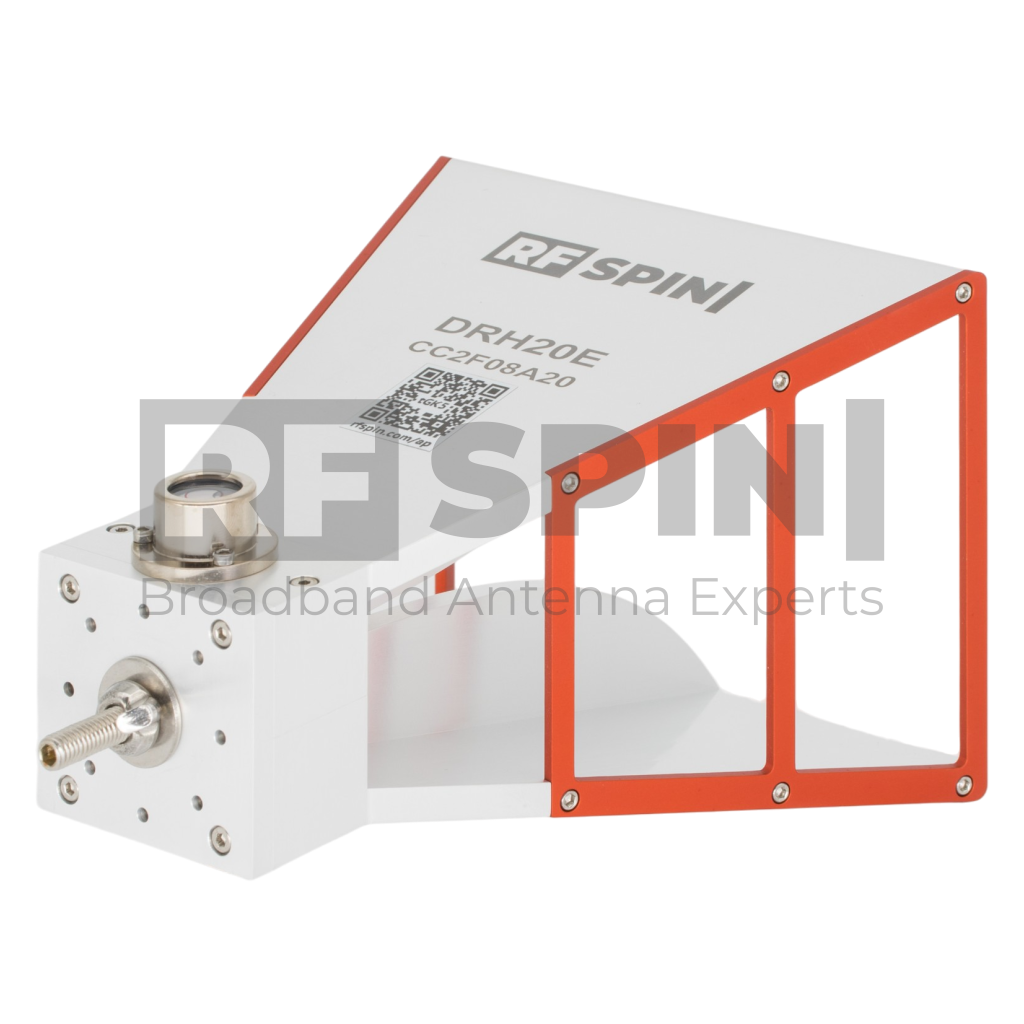

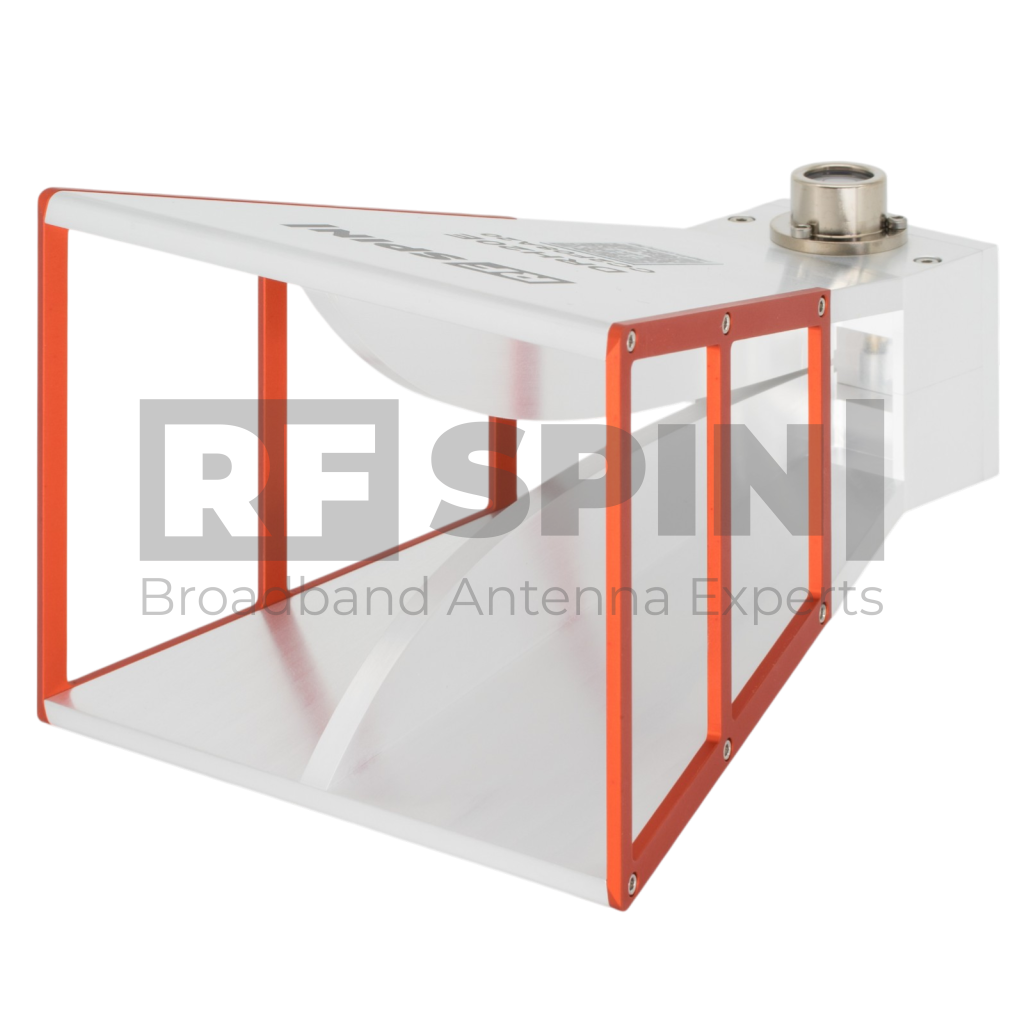

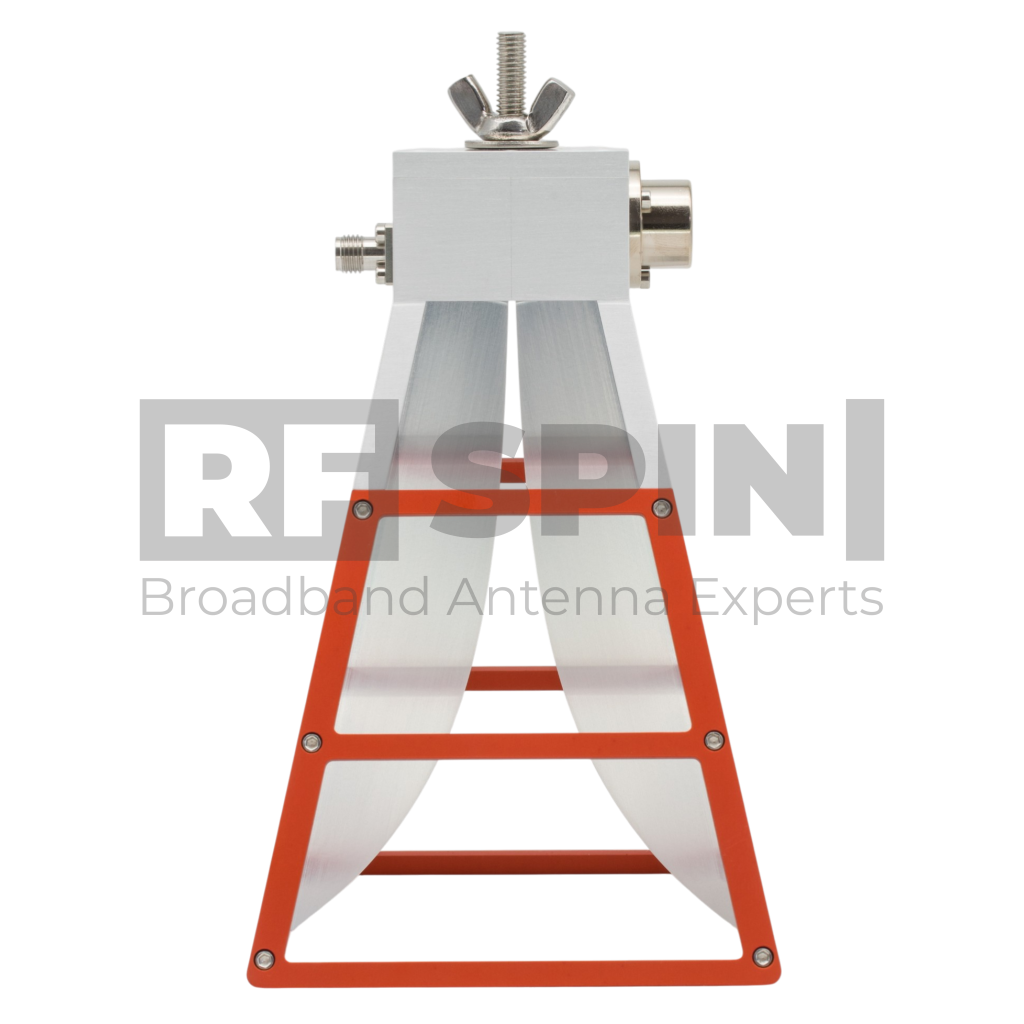

DRH20E Double Ridged Horn Antenna | 1.6 GHz – 20 GHz
with online calibration protocol and dataset

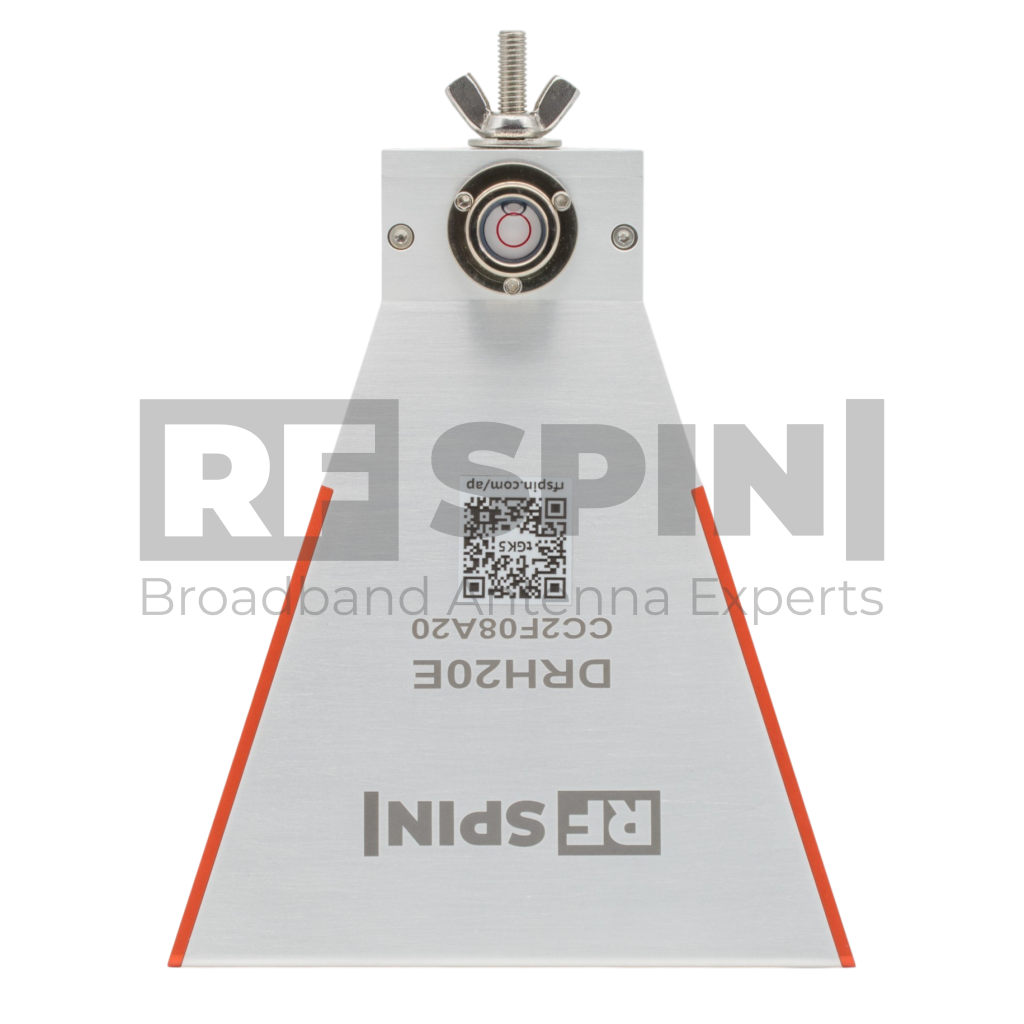

The DRH20E is a high-performance horn antenna operating from 1.6 GHz to 20 GHz. It features an integrated spirit level for easy and accurate alignment during measurements. Each antenna is individually calibrated in our anechoic chamber, with calibration data available for download on our website.
Choose Your Data & Documentation Level
See lens version DRH20ECProduct Highlights
Key Features
- Suitable for EMC/EMI
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
Performance & Versatility
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Multiple mounting options
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH20E
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 1.6 GHz – 20 GHz
- VSWR (max.) 1.5
- VSWR (avg.) 1.2
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 50 W / 100 W
- Antenna Factor 29 – 40.5 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Physical specifications
- Width 103.8 mm (4.087 in)
- Height 122.7 mm (4.831 in)
- Depth 78.7 mm (3.098 in)
- Weight 0.32 kg (0.705 lb)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane
Radiation Patterns
1.6 GHz
2 GHz
3 GHz
4 GHz
6 GHz
8 GHz
10 GHz
12 GHz
14 GHz
16 GHz
18 GHz
20 GHz
Packaging and Accessories
What's in a box
- DRH20E Antenna
- Antenna specific mount adapter with ¼ inch inner thread
Accessories
- Standard mounting flange
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
