DRH20EC Double Ridged Horn Antenna | 1.6 GHz – 20 GHz
with online calibration protocol and dataset

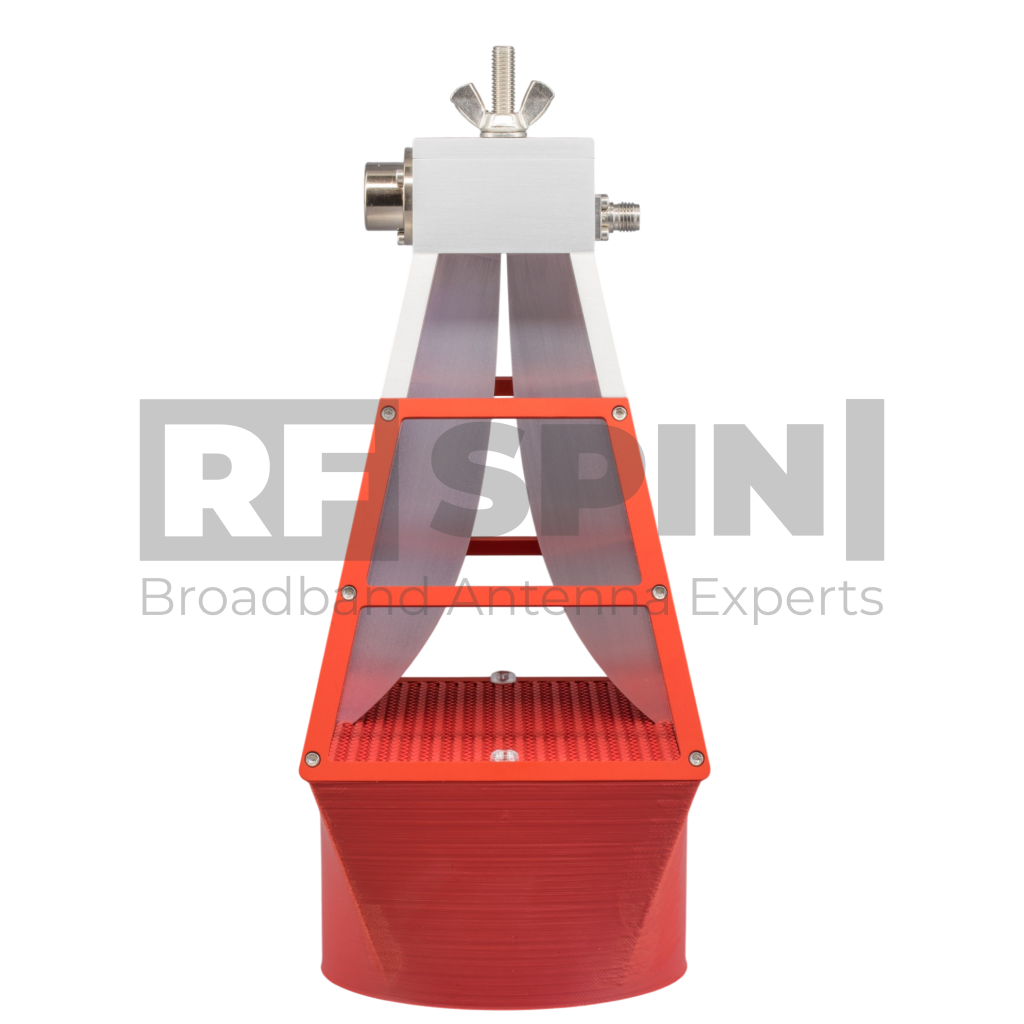

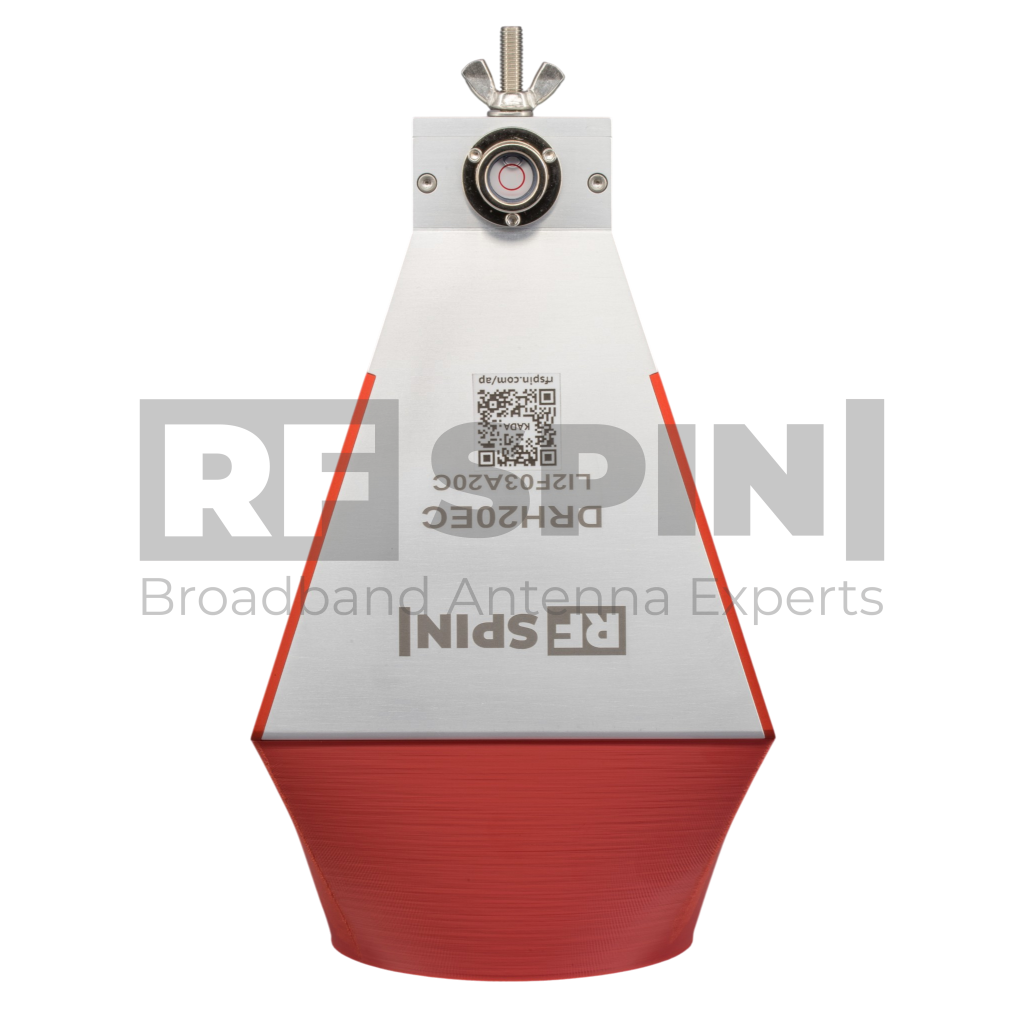

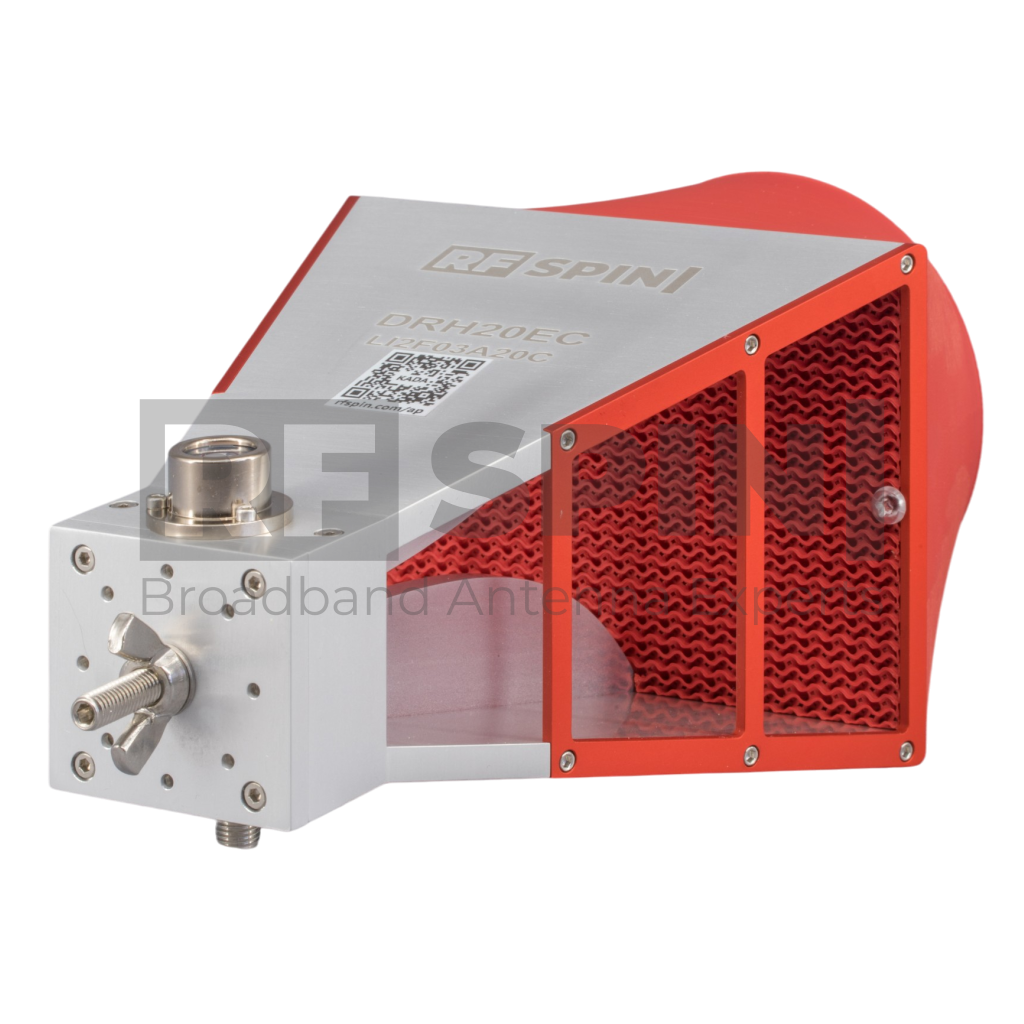

Operating from 1.6 GHz to 20 GHz, the DRH20EC is a precision-engineered horn antenna equipped with a built-in spirit level for easy alignment and our removable 3D-printed lens for optional gain enhancement. Every antenna is individually measured in our anechoic chamber, with downloadable calibration data accessible through a dedicated QR code.
Choose Your Data & Documentation Level
See base version DRH20EProduct Highlights
Key Features
- Antenna with lens
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Multiple mounting options
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH20EC
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 1.6 GHz – 20 GHz
- VSWR (max.) 2.2
- VSWR (avg.) 1.2
- Connector SMA (female)
- Power (CW / Peak) 50 W / 100 W
- Antenna Factor 28 – 35 dB/m
- Polarization Linear
Physical specifications
- Width 103.8 mm (4.087 in)
- Height 171.7 mm (6.760 in)
- Depth 78.7 mm (3.098 in)
- Weight 0.442 kg (0.974 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns
1.6 GHz
2 GHz
3 GHz
4 GHz
6 GHz
8 GHz
10 GHz
12 GHz
14 GHz
16 GHz
18 GHz
20 GHz
Packaging and Accessories
What's in a box
- DRH20EC Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
