DRH30 Double Ridged Horn Antenna | 2.5 GHz – 30 GHz
with online calibration protocol and dataset

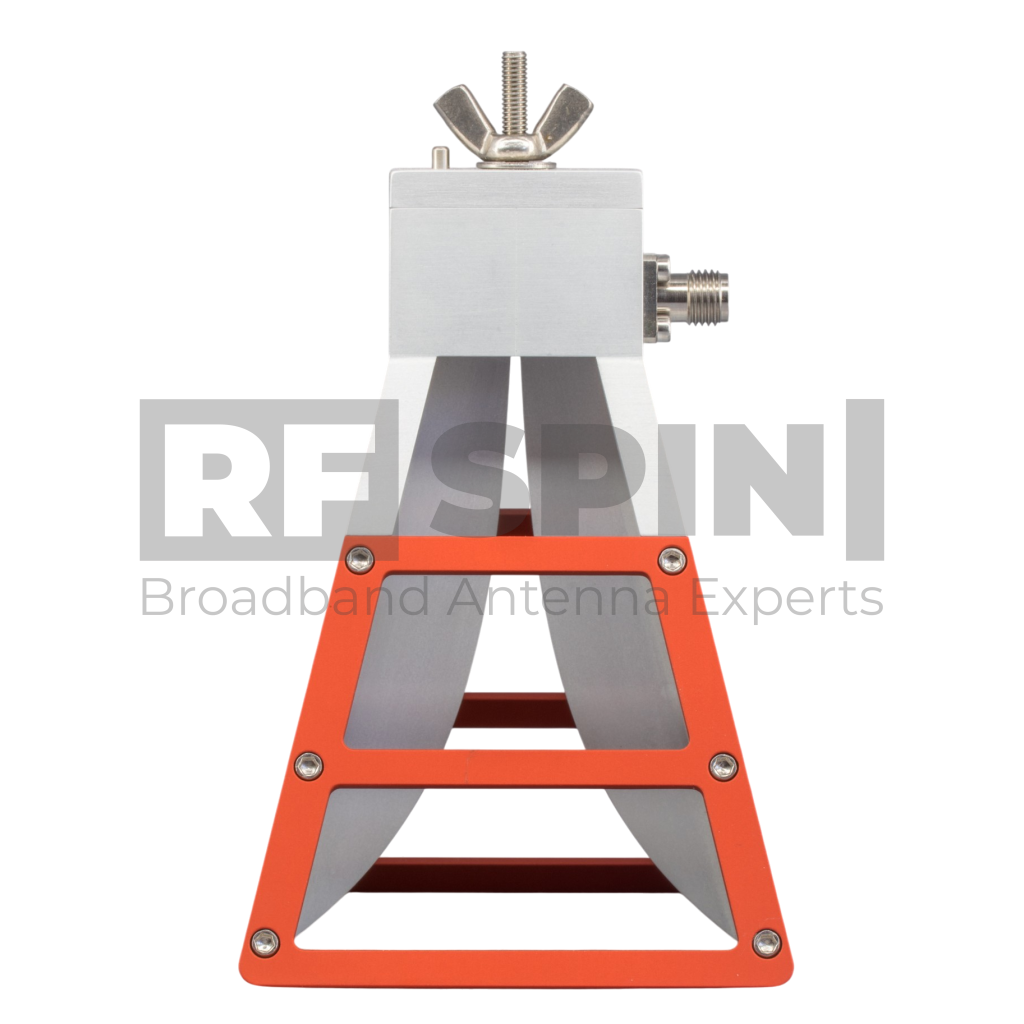

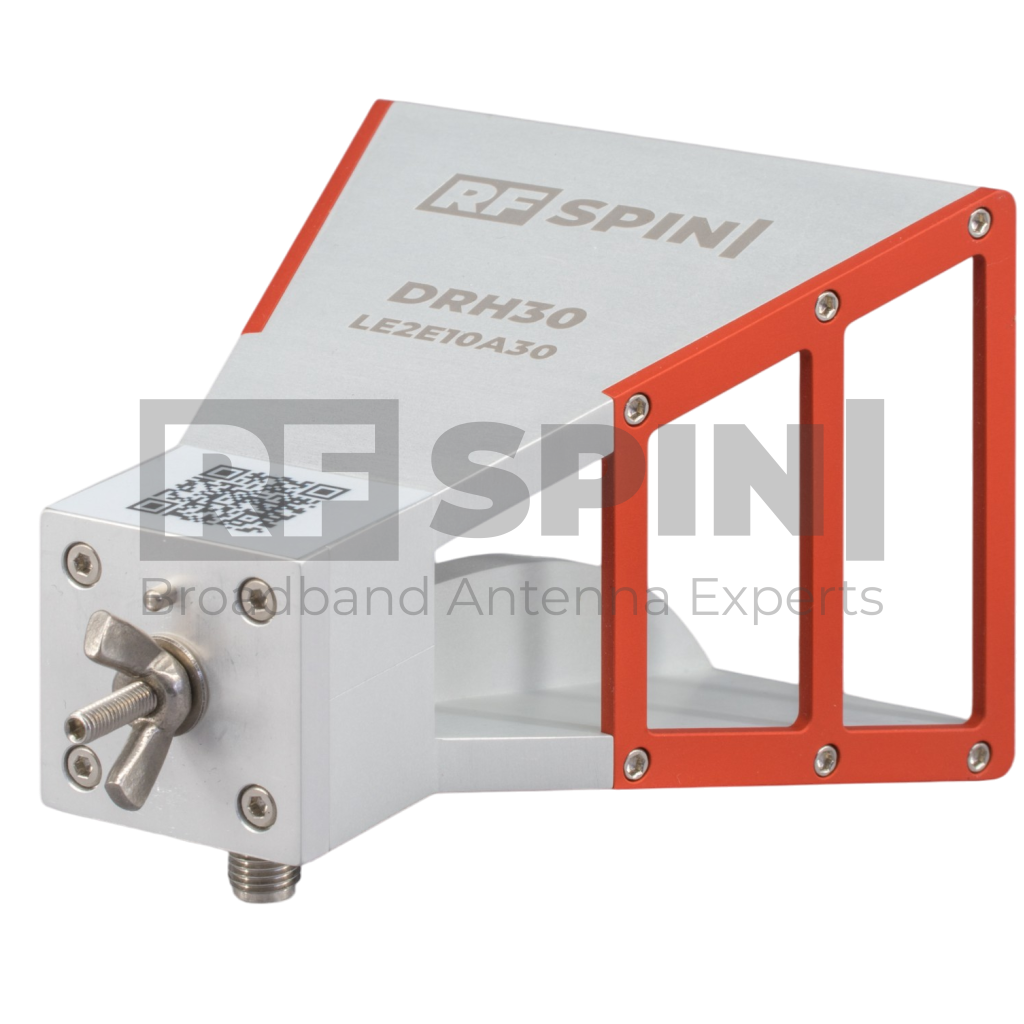

The DRH30 is a compact, high-precision horn antenna designed specifically for 5G and wideband applications from 2.5 GHz to 30 GHz. It offers excellent electrical performance and is individually calibrated in our anechoic chamber. Calibration data is available electronically via our website for easy access and traceability.
Choose Your Data & Documentation Level
See lens version DRH30CProduct Highlights
Key Features
- Suitable for 5G/6G
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
Performance & Versatility
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Multiple mounting options
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH30
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 2.5 GHz – 30 GHz
- VSWR (max.) 1.6
- VSWR (avg.) 1.25
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 25 W / 50 W
- Antenna Factor 32 – 45 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Physical specifications
- Width 70.3 mm (2.768 in)
- Height 83.7 mm (3.295 in)
- Depth 57.2 mm (2.252 in)
- Weight 0.138 kg (0.304 lb)
3D View
Interactive WebGL model · drag to rotate · scroll to zoom · red bar shows scale
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane
Radiation Patterns
2.5 GHz
5 GHz
8 GHz
11 GHz
14 GHz
17 GHz
20 GHz
22 GHz
24 GHz
26 GHz
28 GHz
30 GHz
Packaging and Accessories
What's in a box
- DRH30 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
