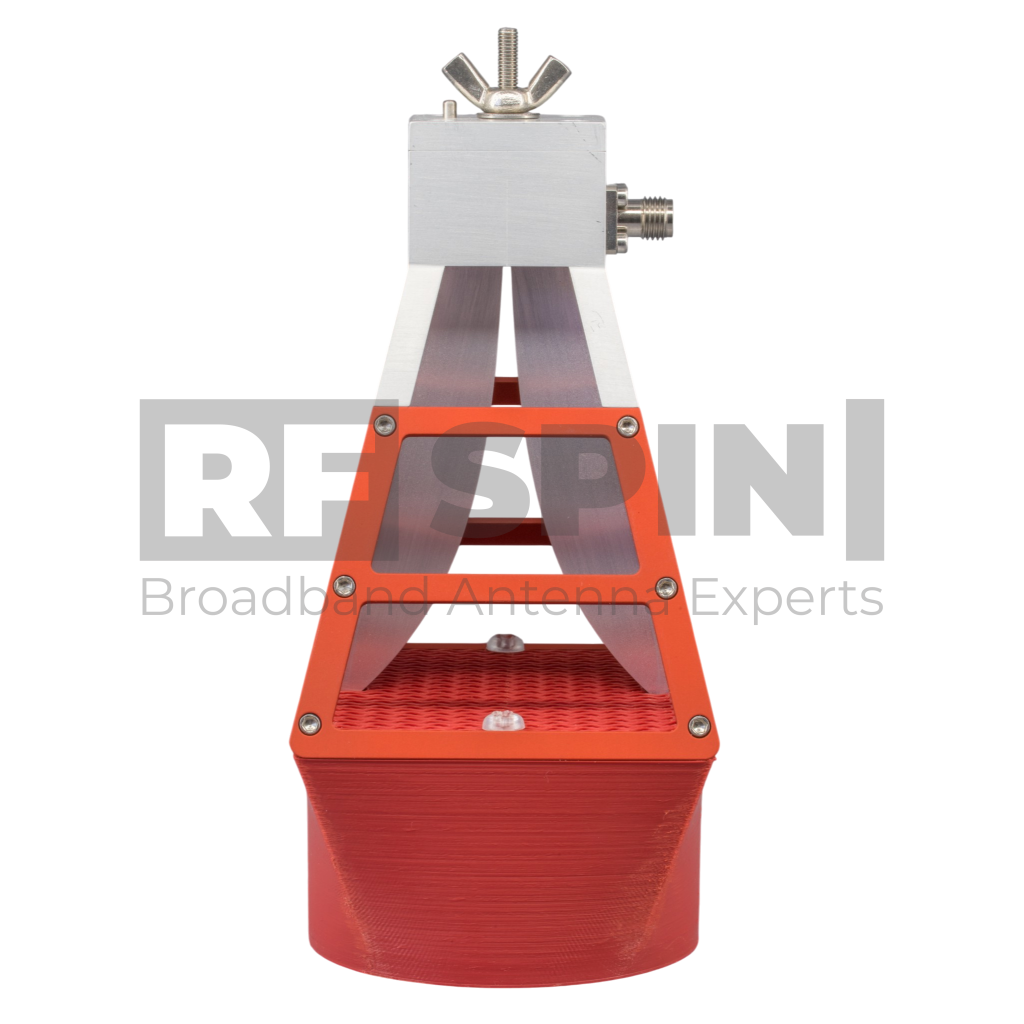

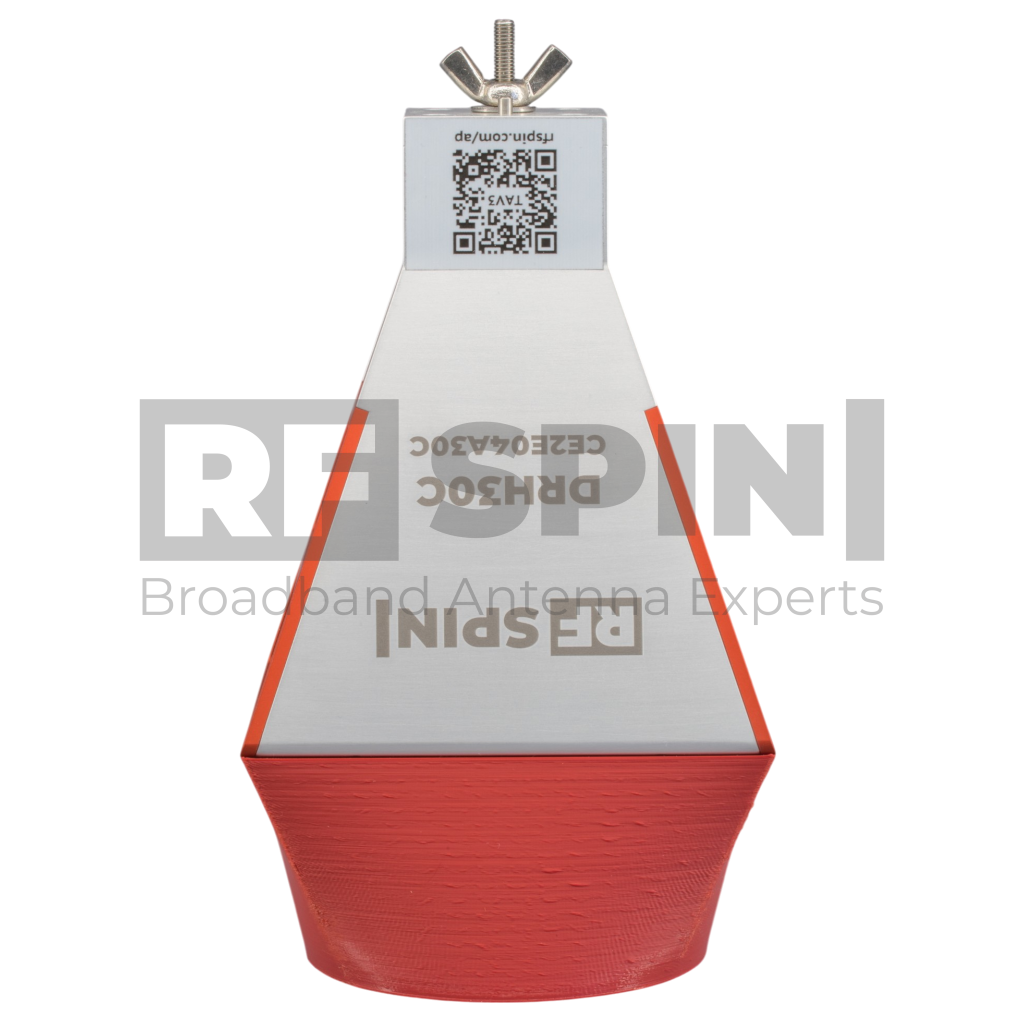

DRH30C Double Ridged Horn Antenna | 2.5 GHz – 30 GHz
with online calibration protocol and dataset

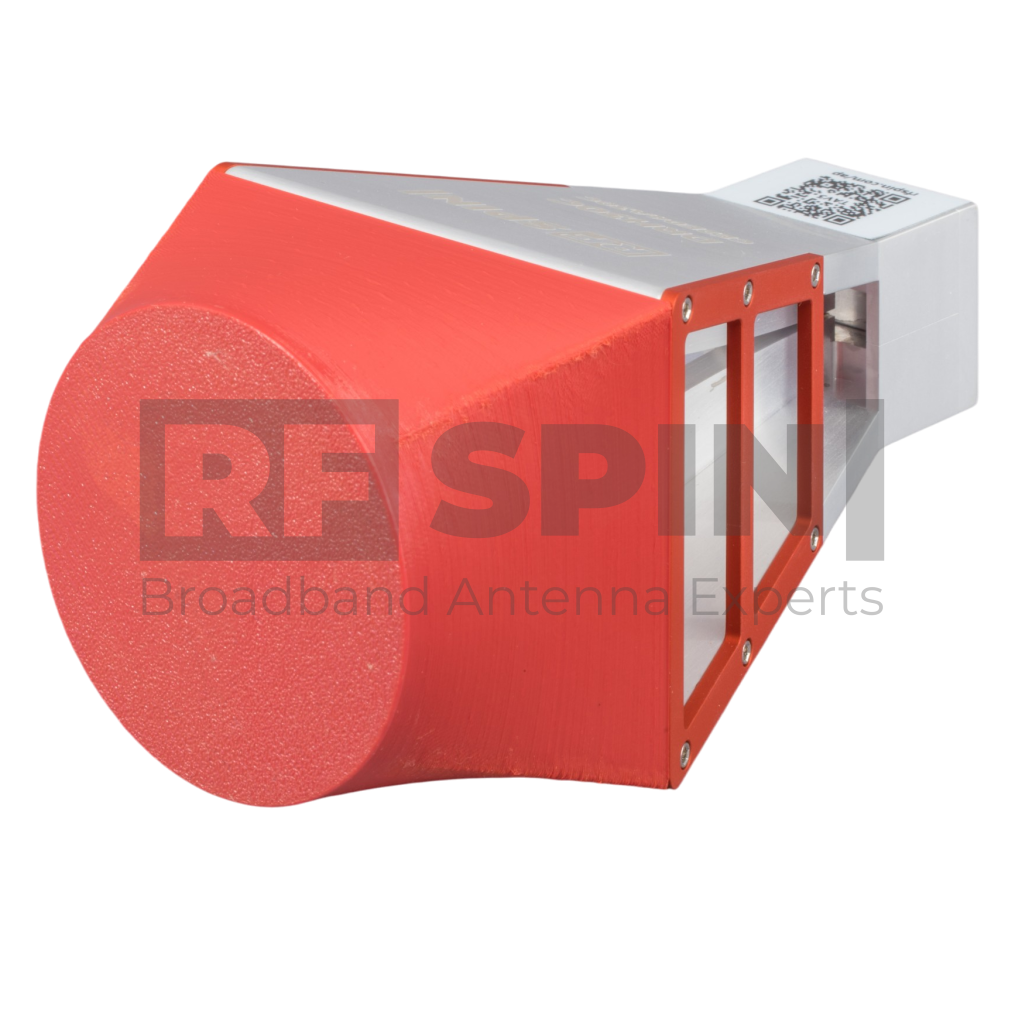

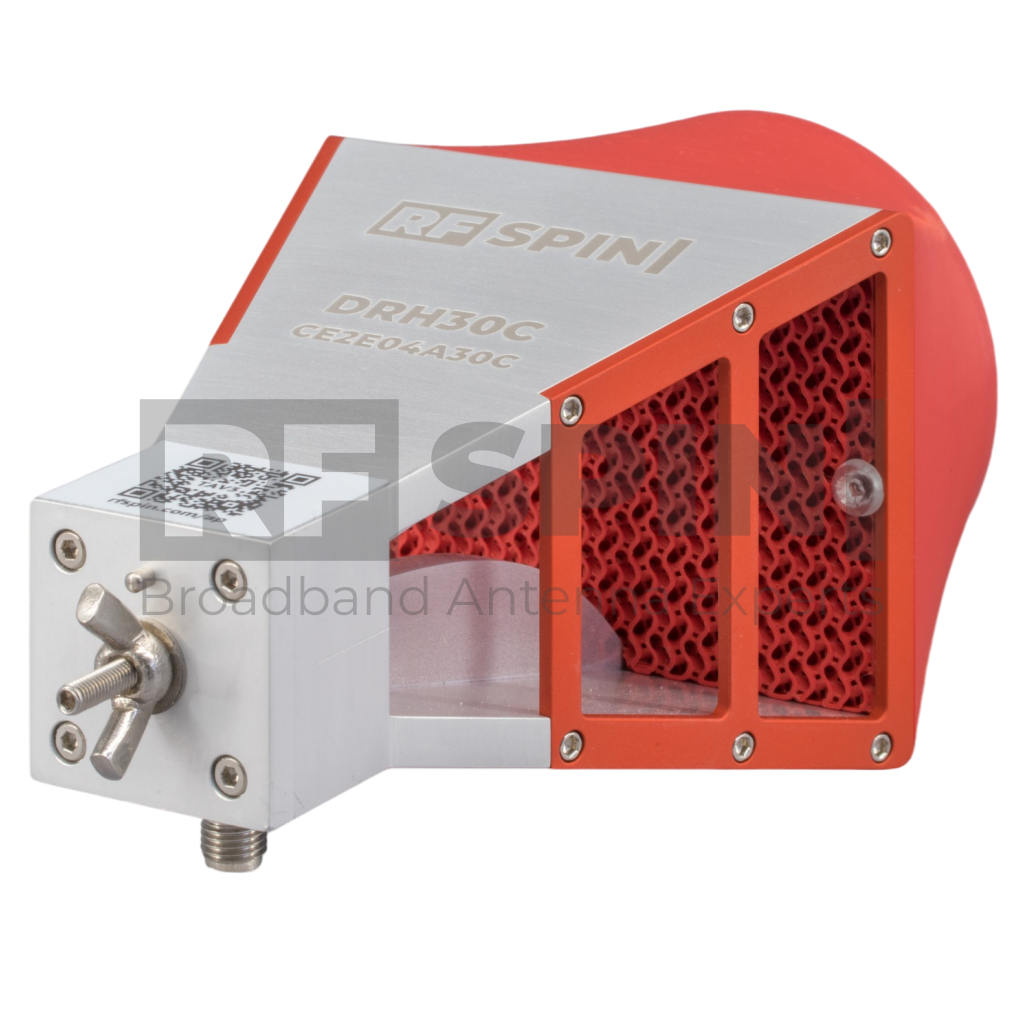

The DRH30C is a broadband horn antenna operating from 2.5 GHz to 30 GHz. It features our 3D-printed antenna lens – a technology patented in the USA – which adds up to 8 dB of gain without compromising bandwidth. The lens is removable, so the antenna can also be used without it. Each unit is individually calibrated in our anechoic chamber, and test data is digitally available via QR code.
Choose Your Data & Documentation Tier
US-patented antenna lens (U.S. Patent No. 12,665,315) About Lens Technology
See base version DRH30Product Highlights
Key Features
- US-patented antenna lens
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH30C
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 2.5 GHz – 30 GHz
- VSWR (max.) 2.5
- VSWR (avg.) 1.25
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 25 W / 50 W
- Antenna Factor 32 – 40 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Physical specifications
- Width 70.7 mm (2.783 in)
- Height 117 mm (4.606 in)
- Depth 57.2 mm (2.252 in)
- Weight 0.187 kg (0.412 lb)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Radiation Patterns
2.5 GHz
5 GHz
8 GHz
11 GHz
14 GHz
17 GHz
20 GHz
22 GHz
24 GHz
26 GHz
28 GHz
30 GHz
Packaging and Accessories
What's in a box
- DRH30C Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
