QRH18EC Quad Ridged Horn Antenna | 1 GHz – 18 GHz
with online calibration protocol and dataset

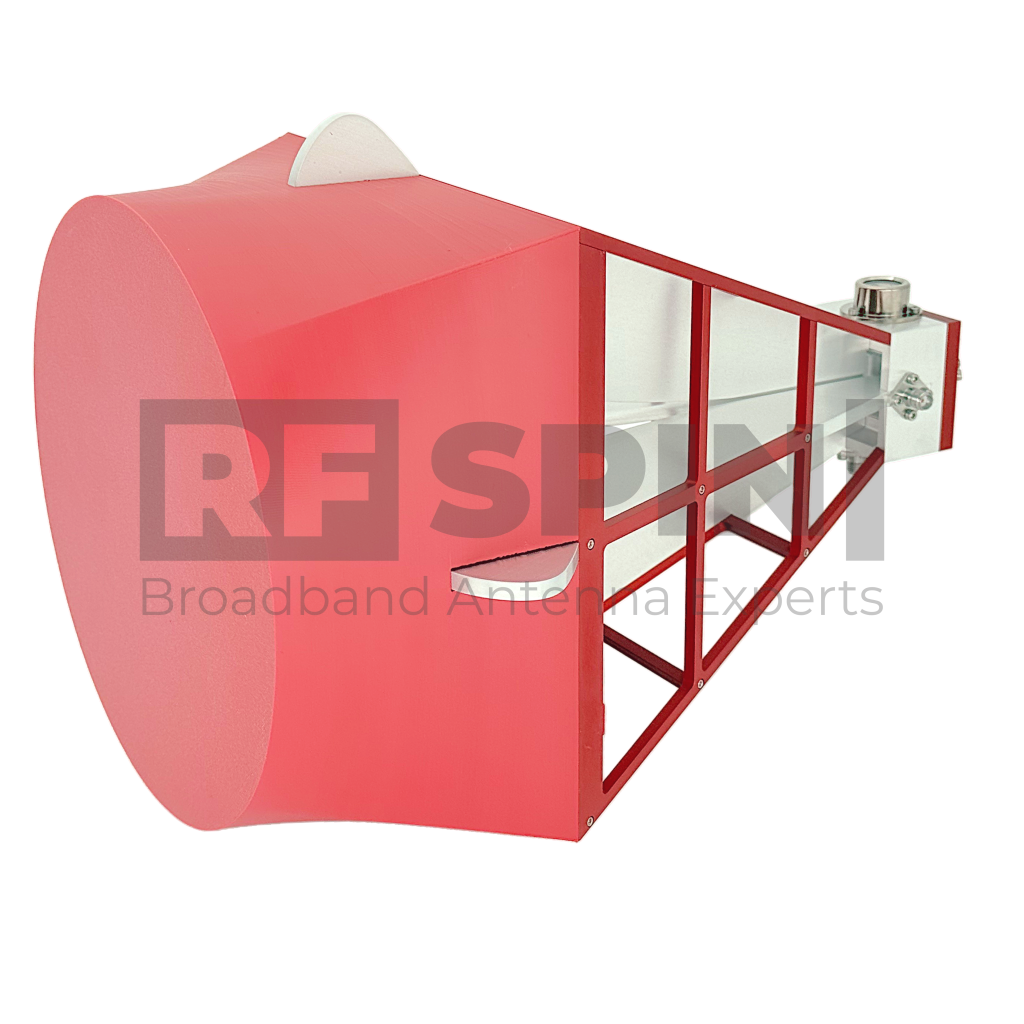

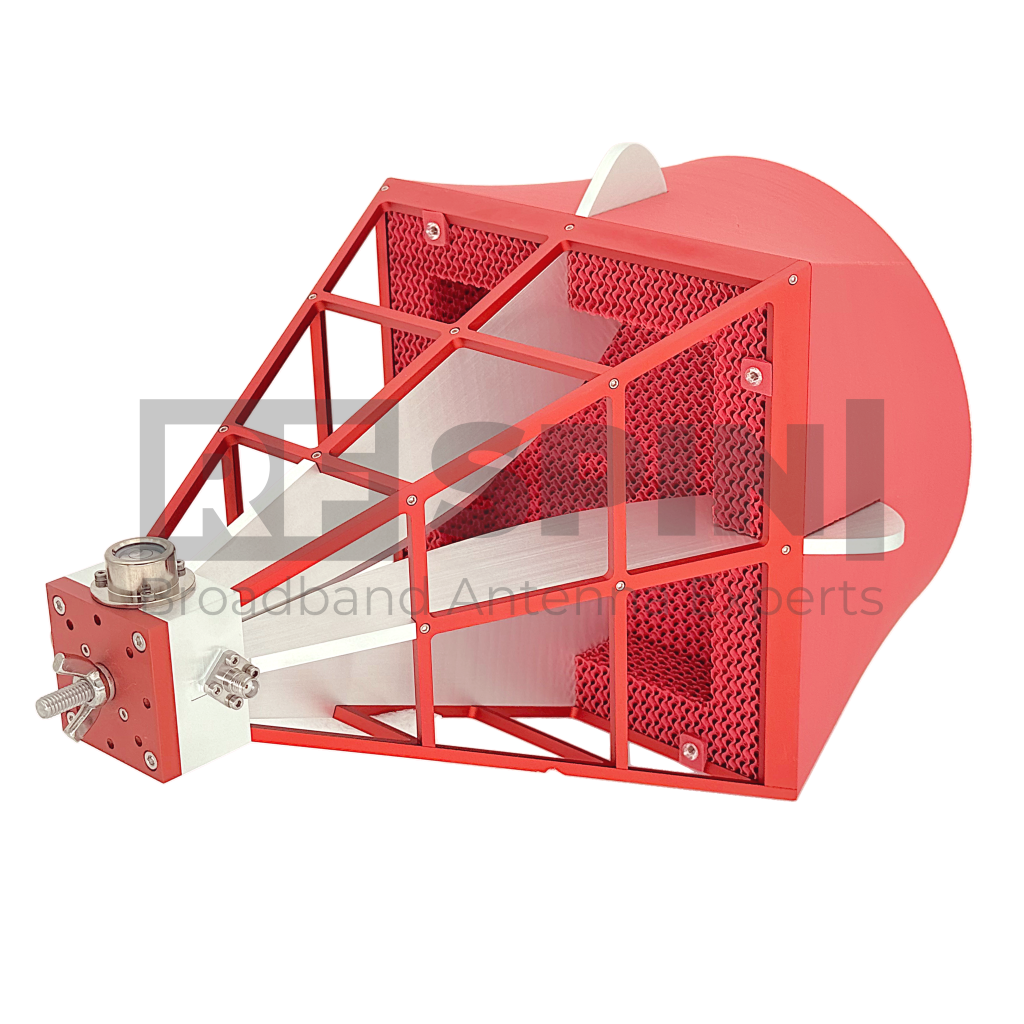

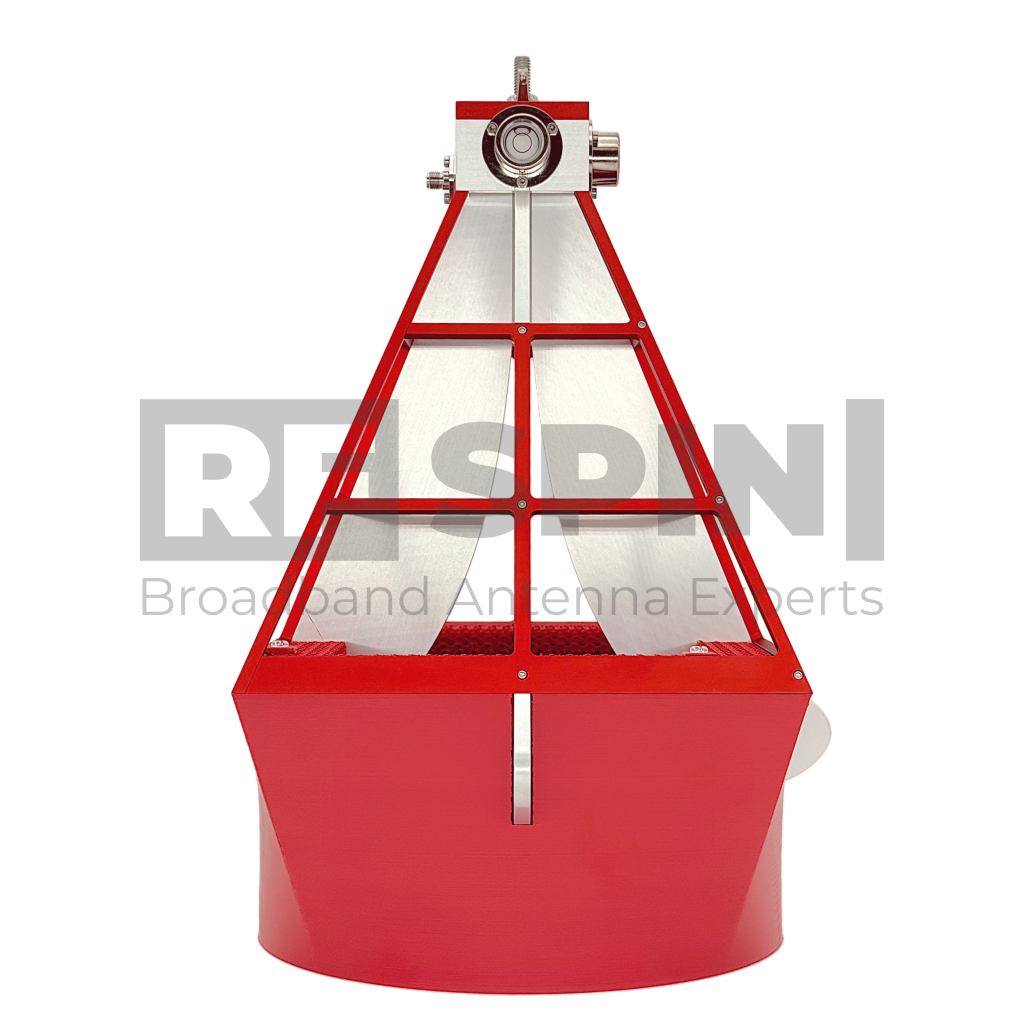

The QRH18EC is a broadband horn antenna operating from 1 GHz to 18 GHz, with built-in spirit levels for precise alignment. It features our 3D-printed antenna lens – a technology patented in the USA – which brings the maximum gain to 23 dBi without compromising bandwidth. Each unit is individually calibrated in our anechoic chamber, and test data is digitally available via QR code.
Choose Your Data & Documentation Tier
US-patented antenna lens (U.S. Patent No. 12,665,315) About Lens Technology
See radome version QRH18ER
See base version QRH18EProduct Highlights
Key Features
- US-patented antenna lens
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- Radome version available
- Circular polarization (optional)
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- High isolation values
- Multiple mounting options
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name QRH18EC
- Product Category Quad Ridged Horn Antenna
Electrical specifications
- Frequency Range 1 GHz – 18 GHz
- VSWR (max.) 2.8
- VSWR (avg.) 1.4
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 100 W / 170 W
- Antenna Factor 25 – 35 dB/m
- Port Isolation -30 dB
- Polarization Dual Linear, Circular (with hybrid)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Physical specifications
- Width 213 mm (8.386 in)
- Height 279 mm (10.984 in)
- Depth 213 mm (8.386 in)
- Weight 1.374 kg (3.029 lb)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain

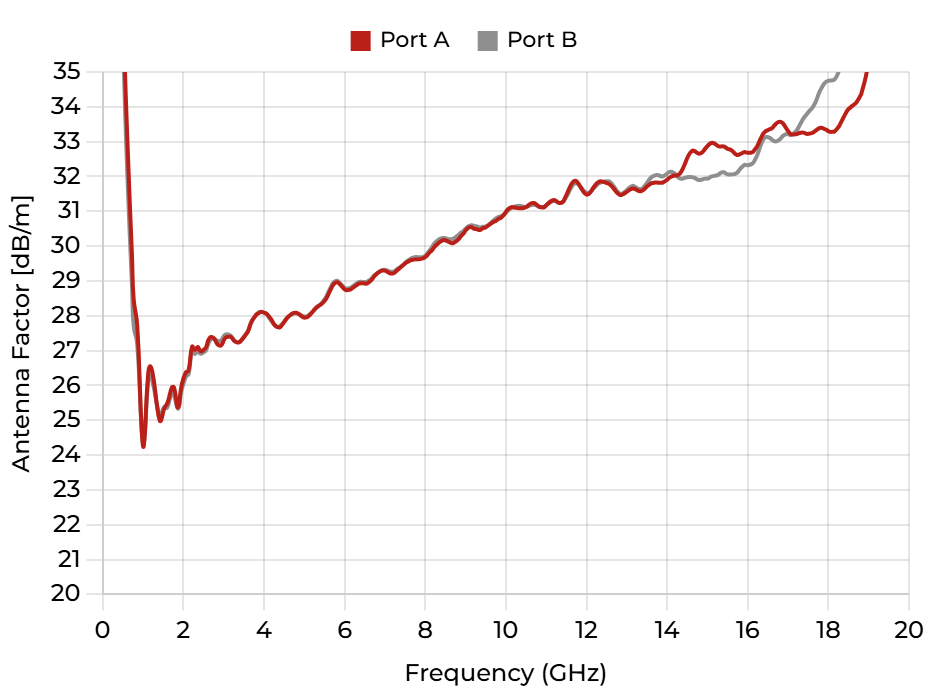

Antenna Factor
Port Isolation

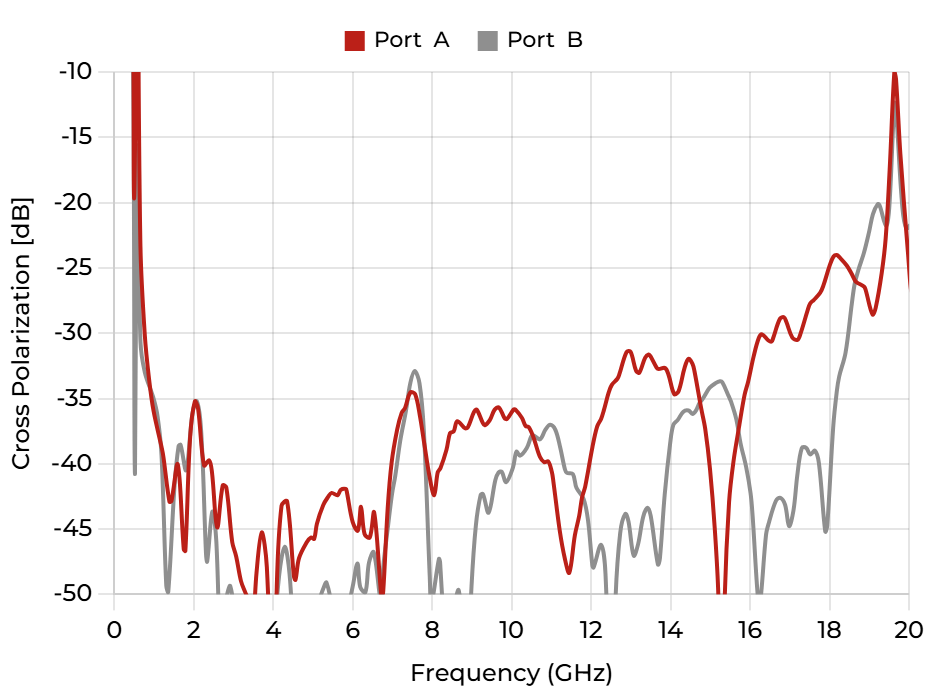

Cross Polarization
Packaging and Accessories
Accessories
- Standard mounting flange
