Product Highlights
Key Features
- Suitable for 5G/6G
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- Circular polarization (optional)
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- High isolation values
- Multiple mounting options
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification

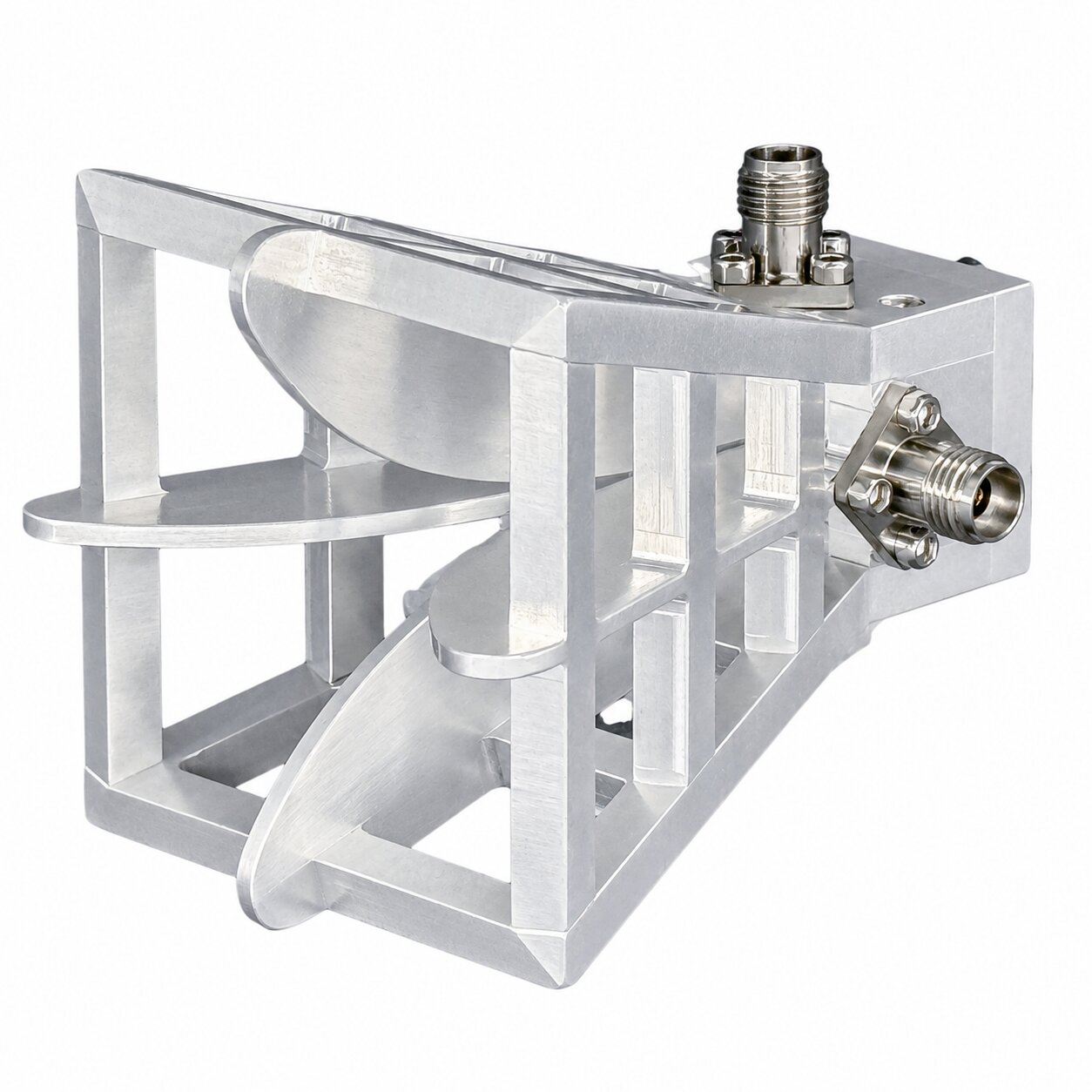

- Product Name QRH43
- Product Category Quad Ridged Horn Antenna
Electrical specifications
- Frequency Range 3.7 GHz – 43 GHz
- VSWR (max.) 2.2
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 10 W / 20 W
- Antenna Factor 36 – 50 dB/m
- Port Isolation -32 dB
- Polarization Dual Linear, Circular (with hybrid)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Physical specifications
- Width 45.5 mm (1.791 in)
- Height 63.3 mm (2.492 in)
- Depth 45.5 mm (1.791 in)
Mechanical Drawings
Antenna
Parameters and Performance
Packaging and Accessories
What's in a box
- QRH43 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Protective wooden case
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
- Universal antenna mount
Accessories
- Standard mounting flange
-
Protective wooden case
-
Factory calibration report
