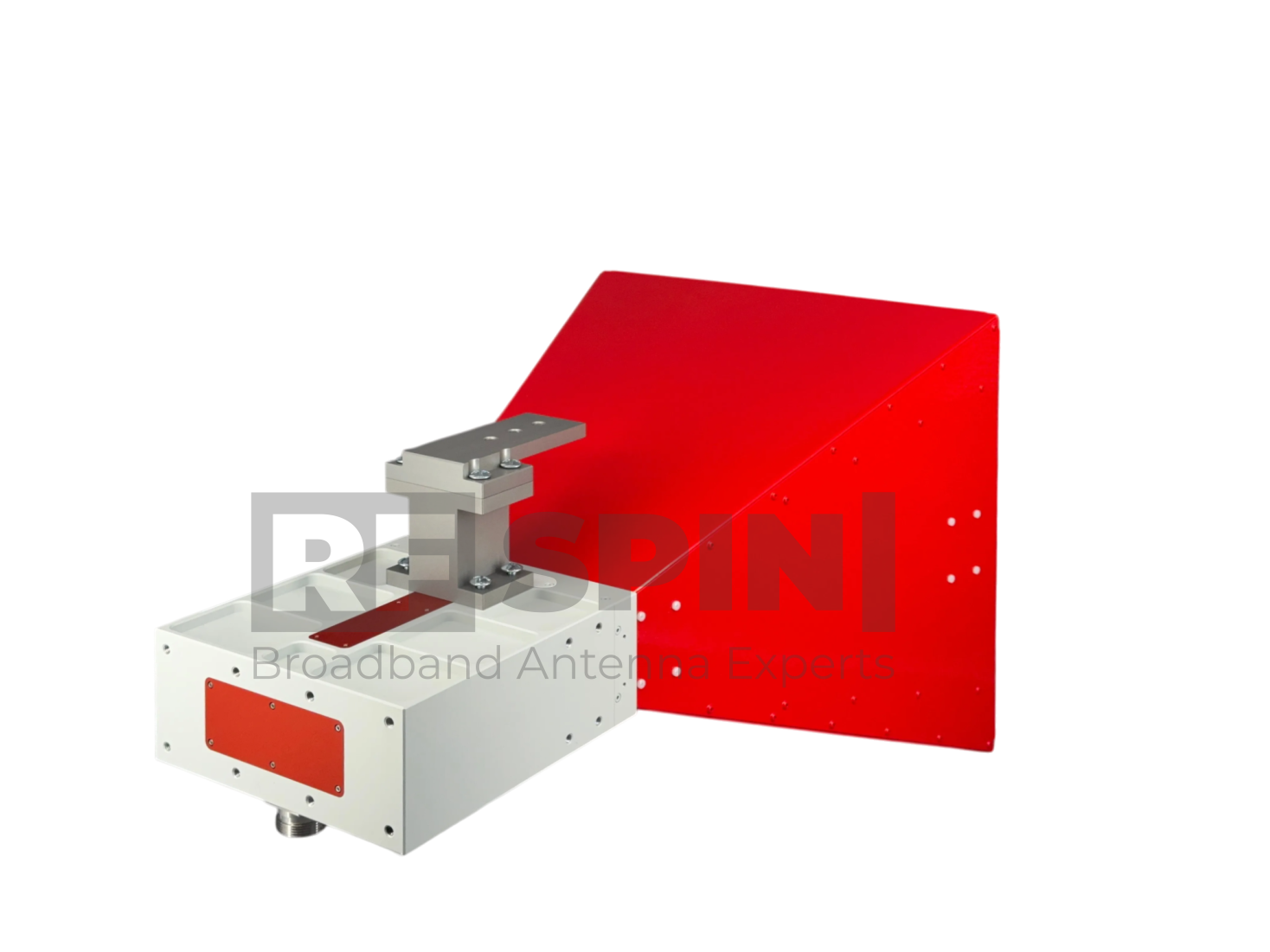

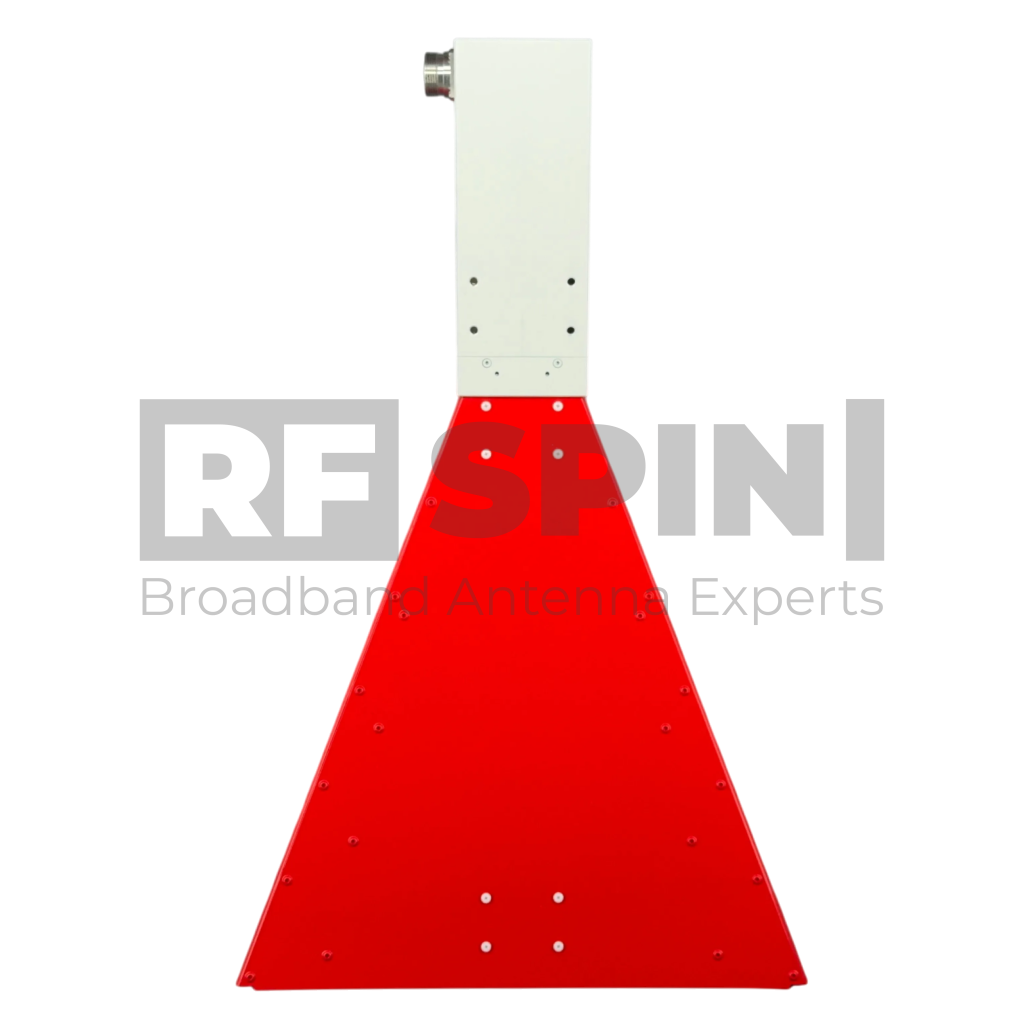

DRH0908 Double Ridged Horn Antenna | 900 MHz – 8 GHz

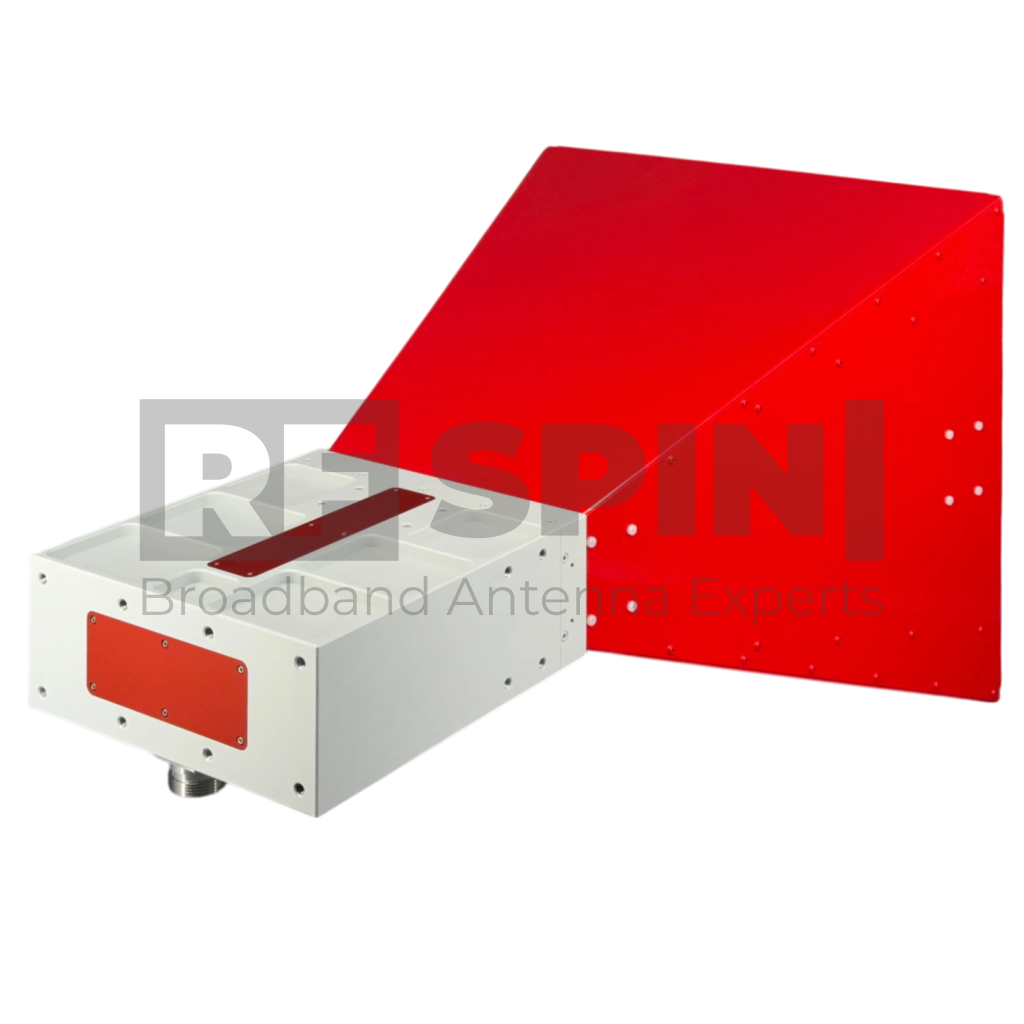

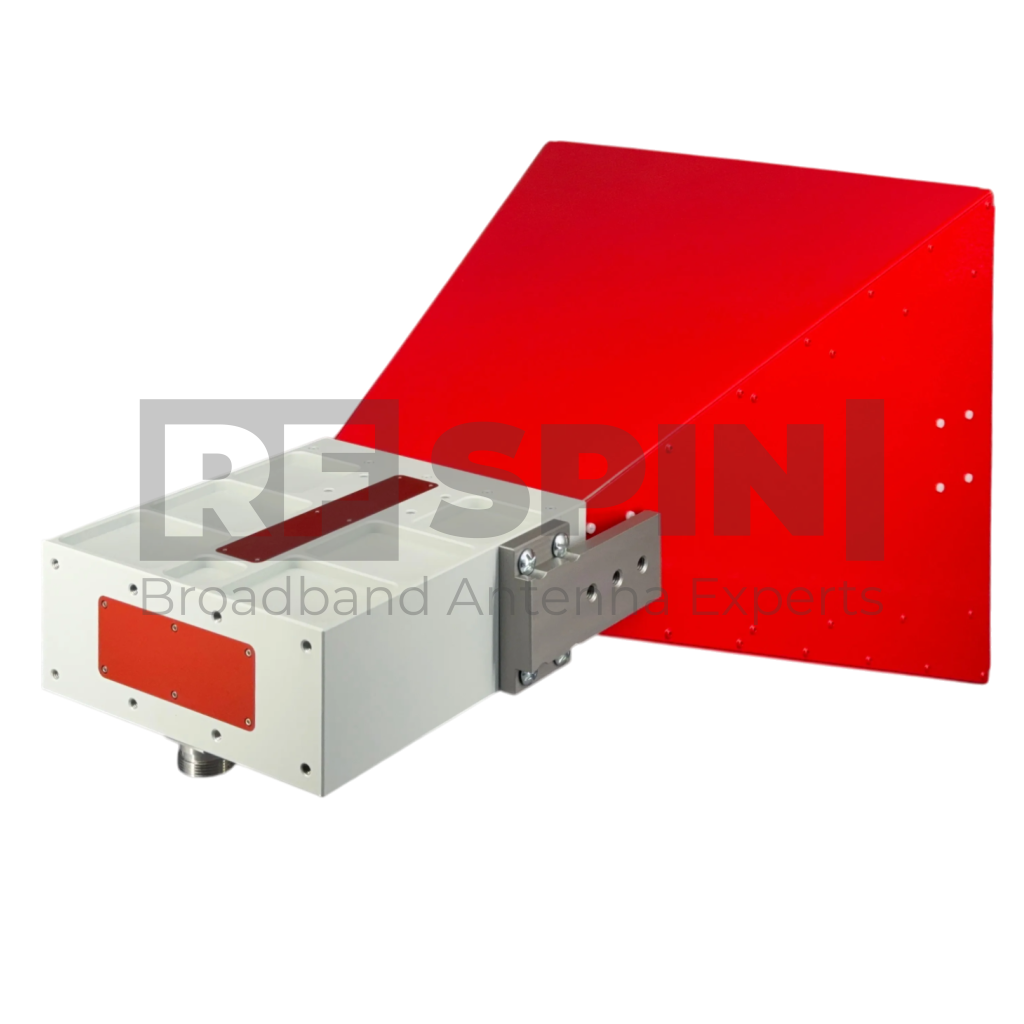

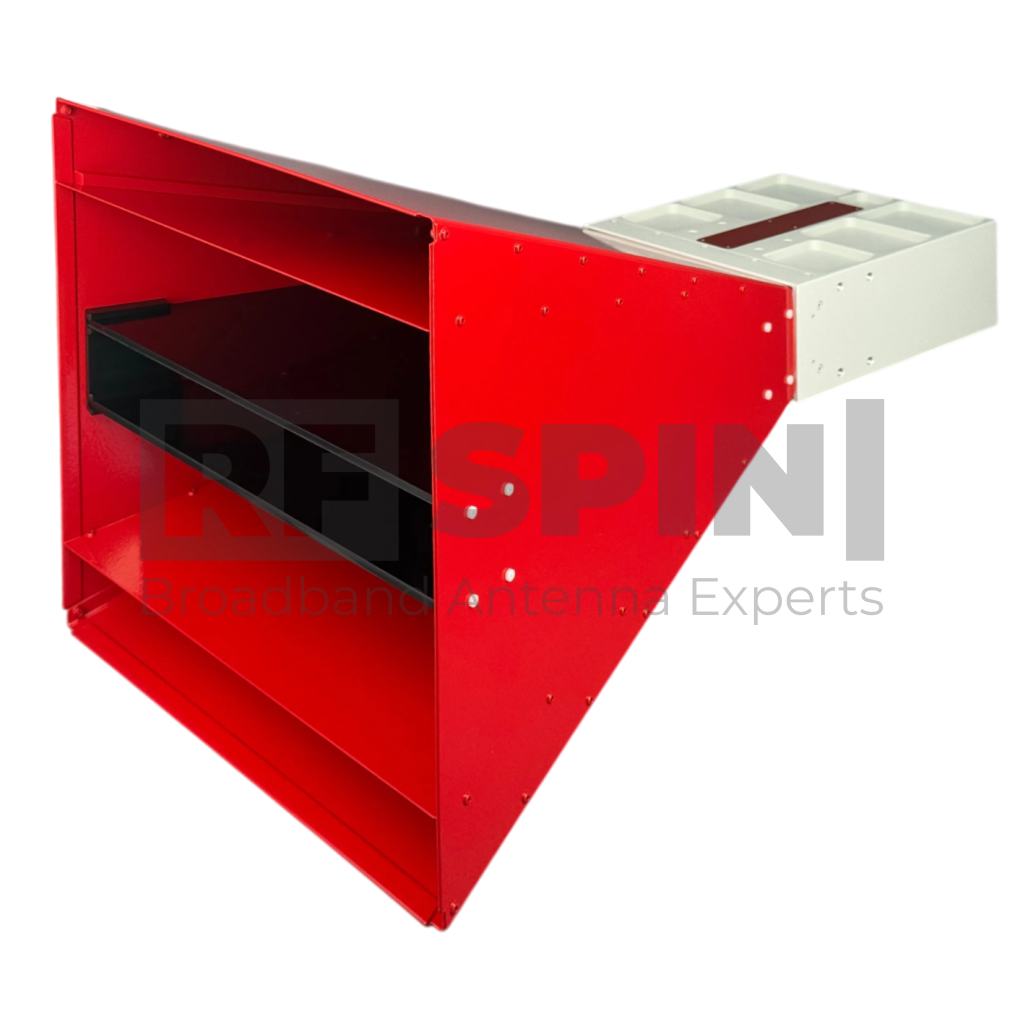

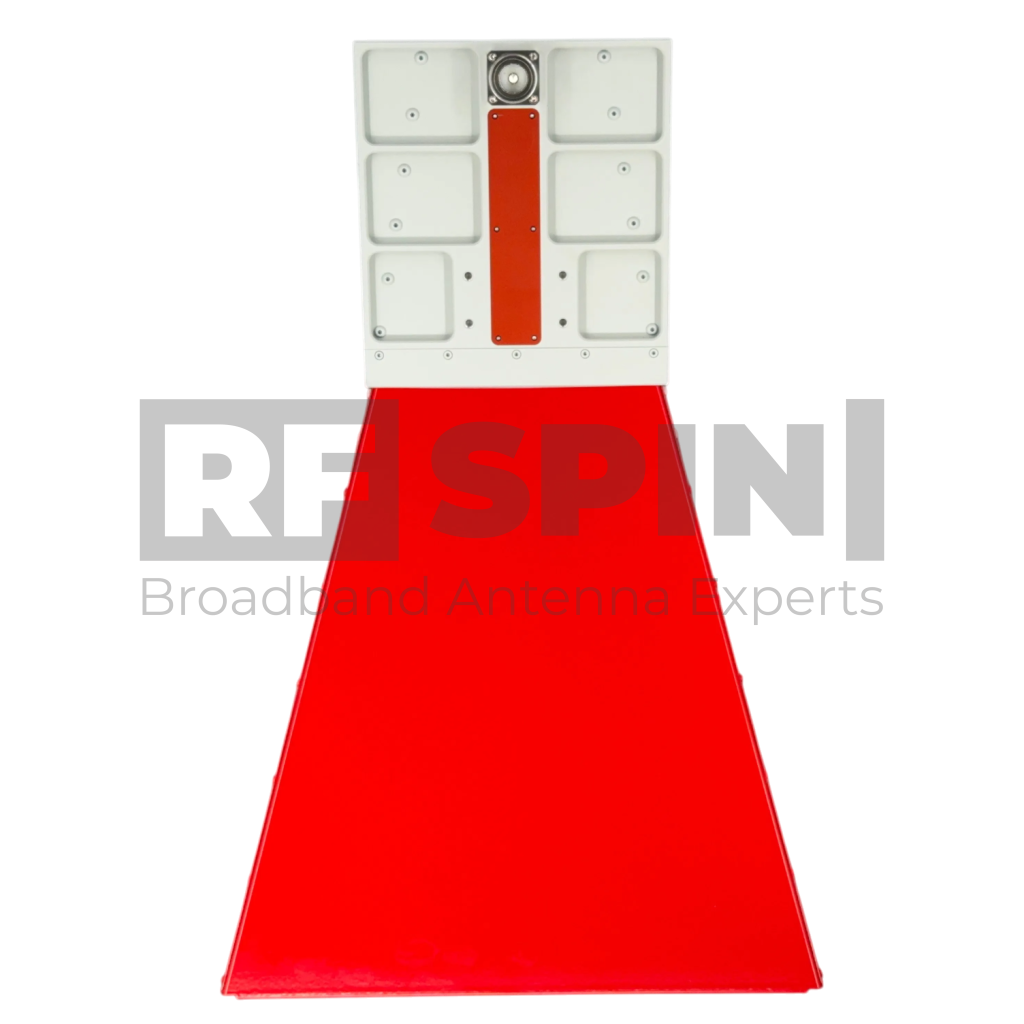

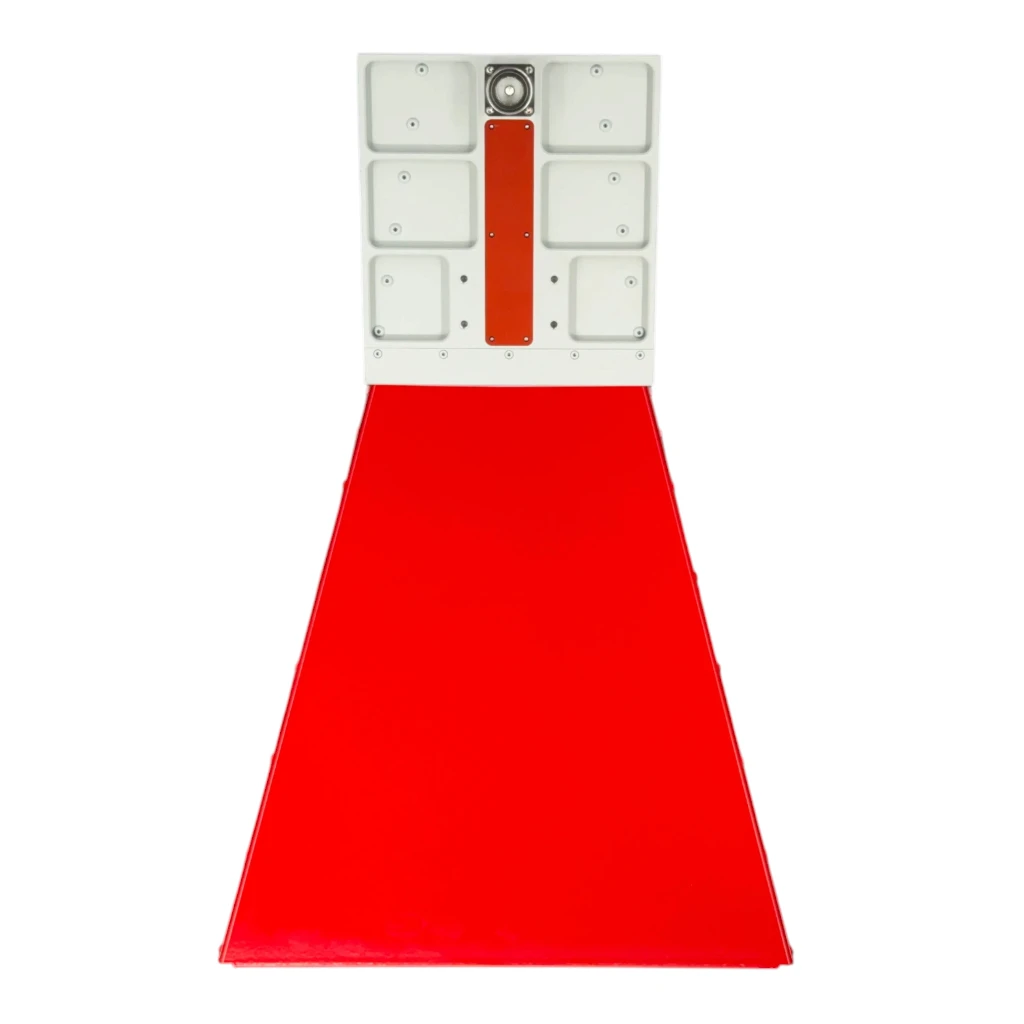

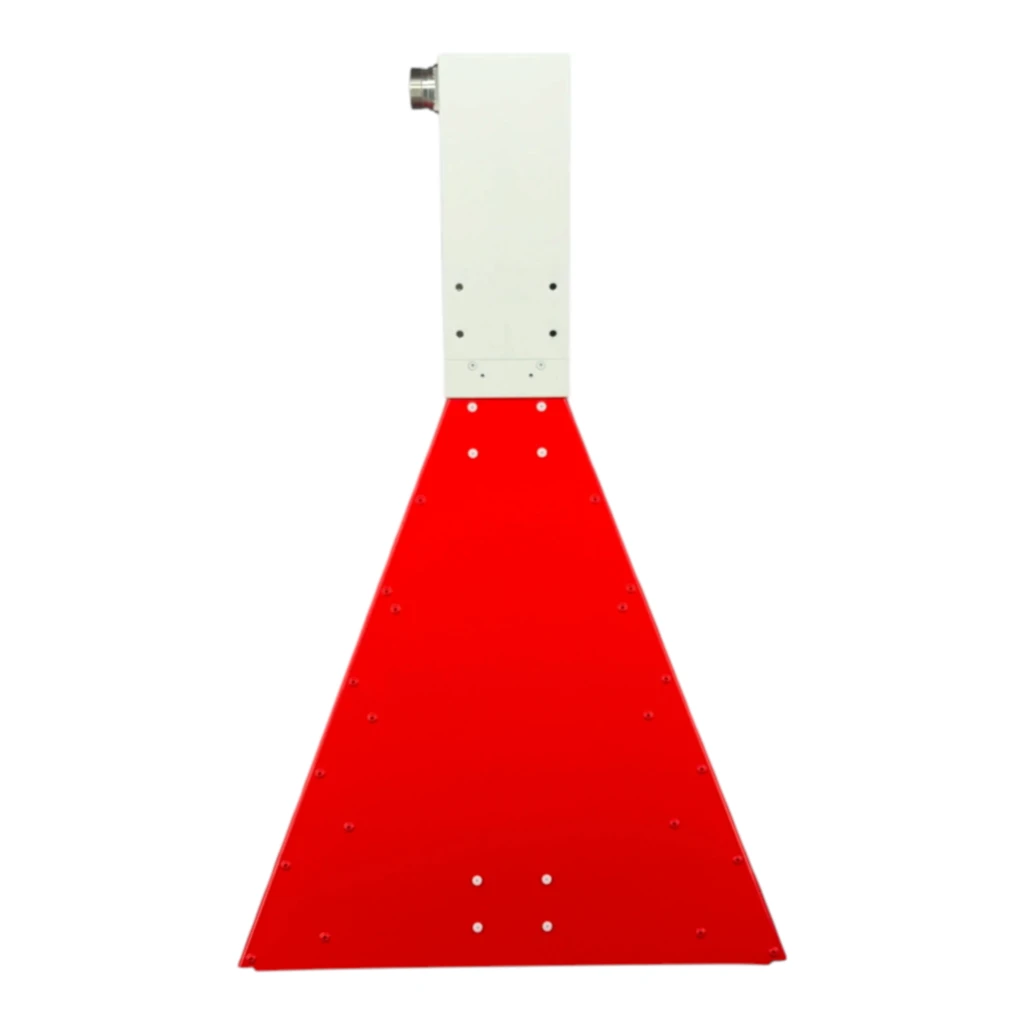

The DRH0908 is a high-gain, broadband horn antenna with a linear polarization that operates efficiently from 900 MHz to 8 GHz. Constructed from high-grade aluminum with a corrosion-resistant coating, it is specifically engineered to meet new automotive testing standards for radiated RF field generation and product immunity tests. The antenna can handle continuous power up to 1000 Watts and is also suitable for electromagnetic interference (EMI) testing.
3D Simplified Model
Datasheet
Product Highlights
Key Features
- Suitable for EMC/EMI
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- QR code to access Antenna Portal
- Wide bandwidth and low return loss

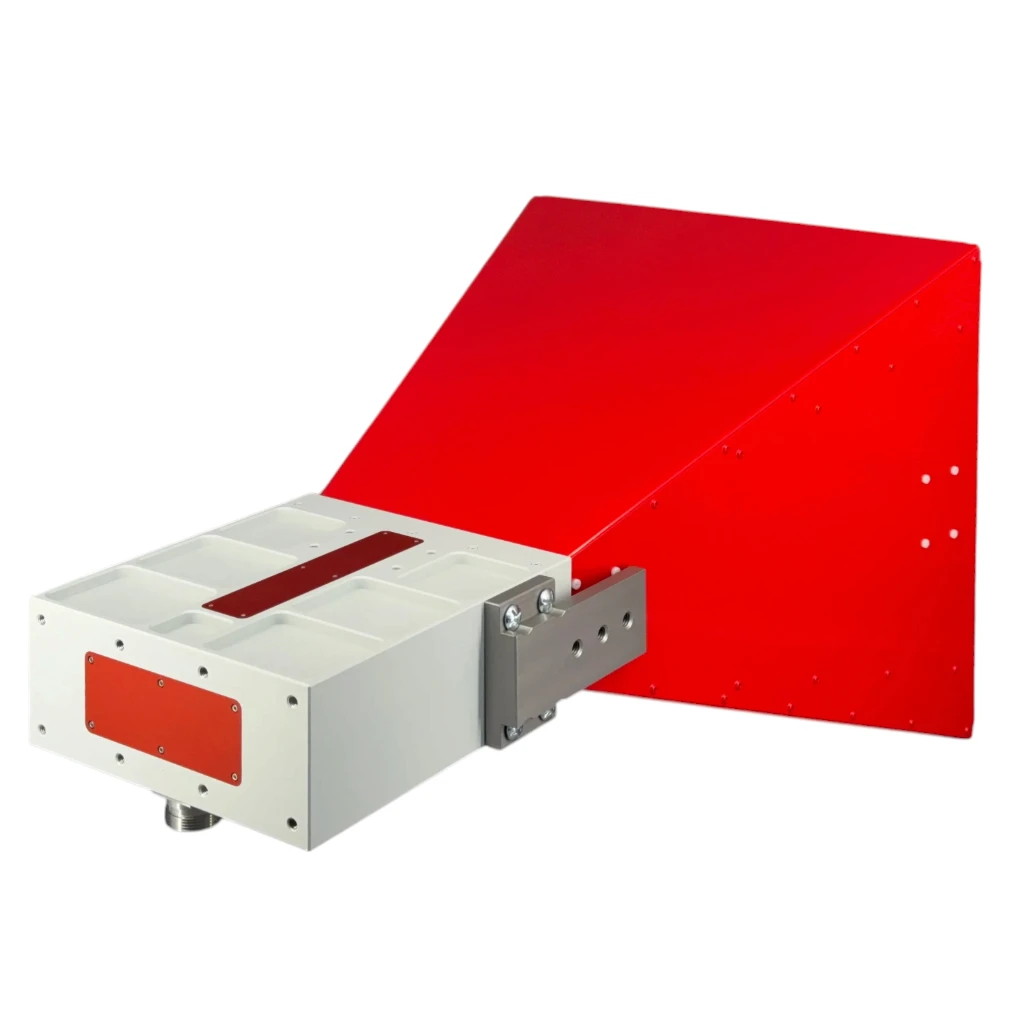

- Multiple mounting options
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRH0908
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 900 MHz – 8 GHz
- VSWR (max.) 4
- VSWR (avg.) 1.3
- Impedance 50 Ohm
- Connector 7/16 (female)
- Power (CW / Peak) 800 W / 1500 W
- Antenna Factor 19 – 33 dB/m
- Polarization Linear
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Physical specifications
- Width 373 mm (14.685 in)
- Height 575 mm (22.638 in)
- Depth 357 mm (14.055 in)
- Weight 5.65 kg (12.456 lb)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters

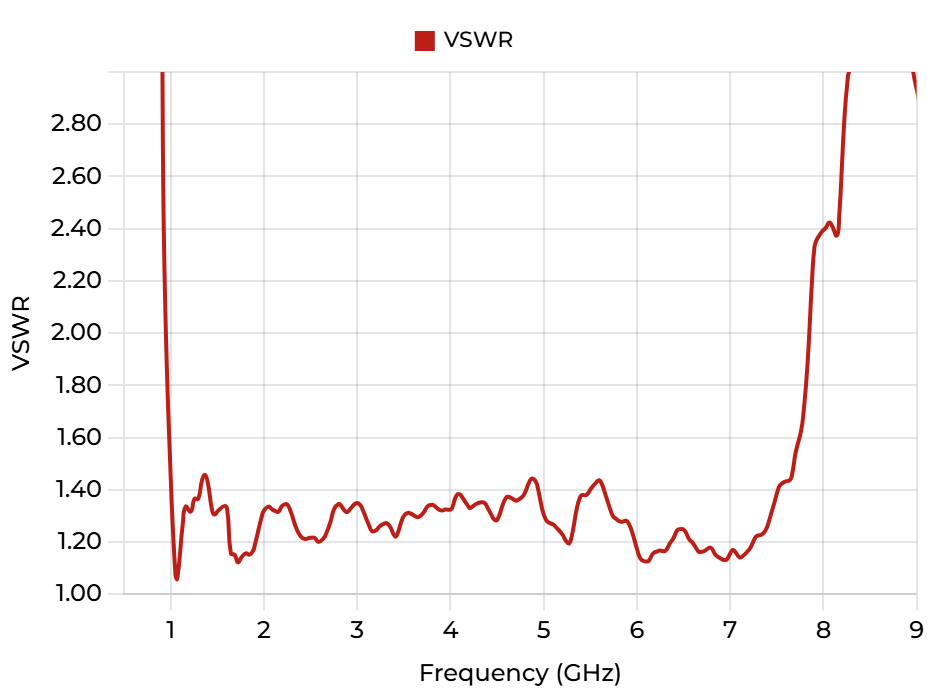

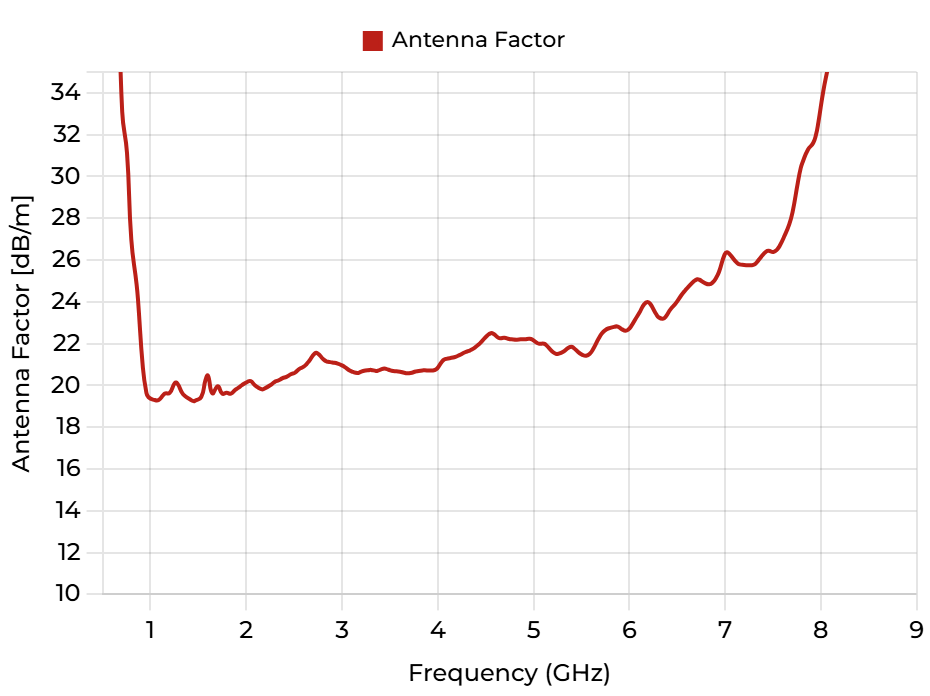

VSWR

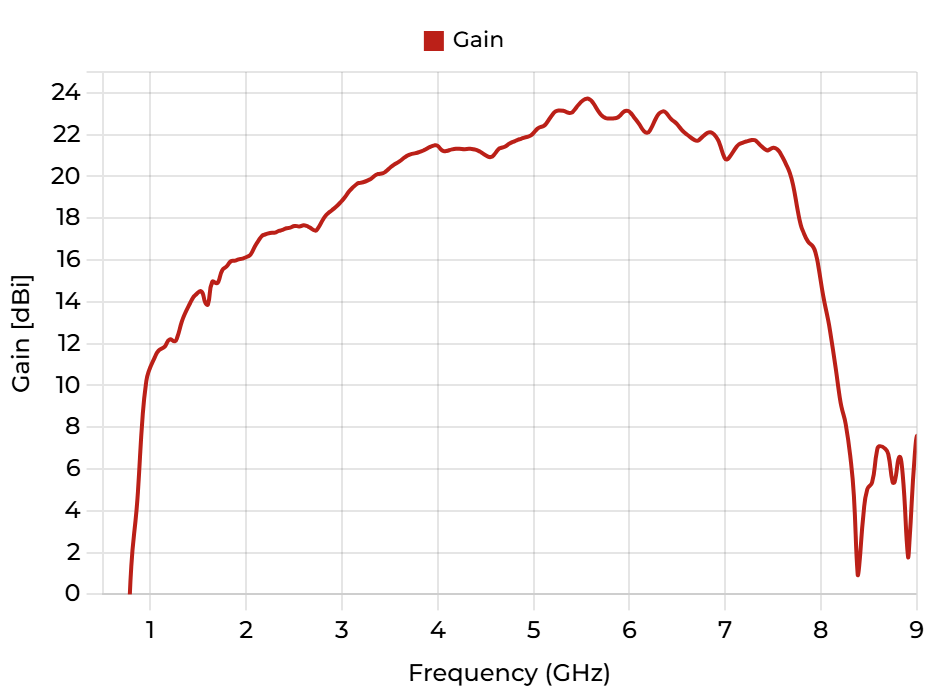

Gain
Antenna Factor
Cross Polarization

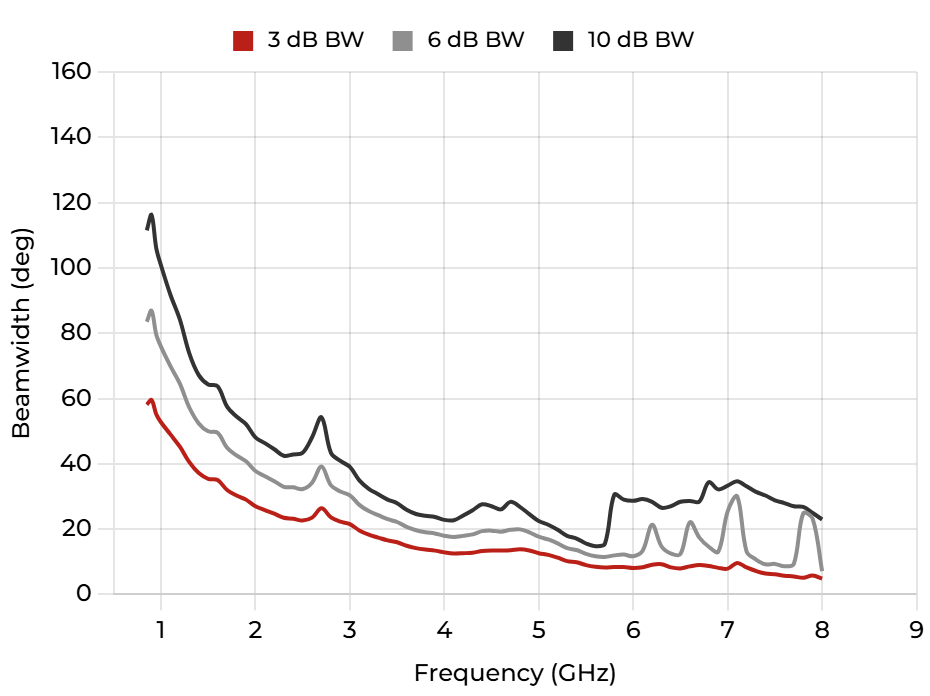

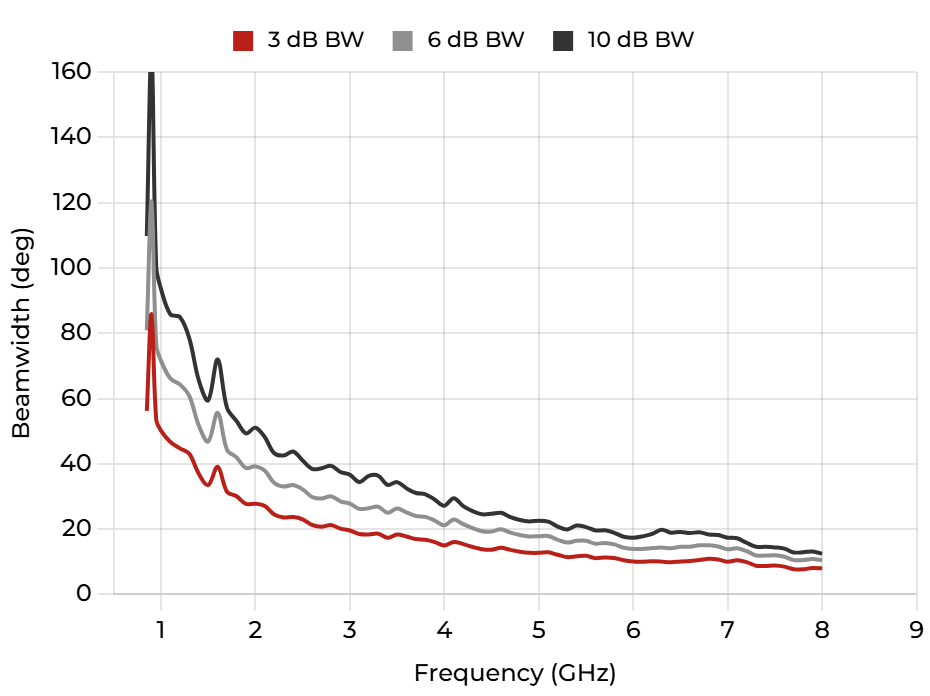

Beamwidth

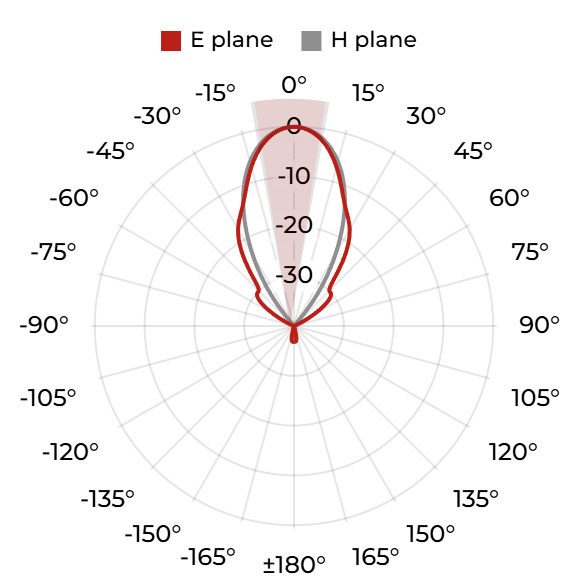

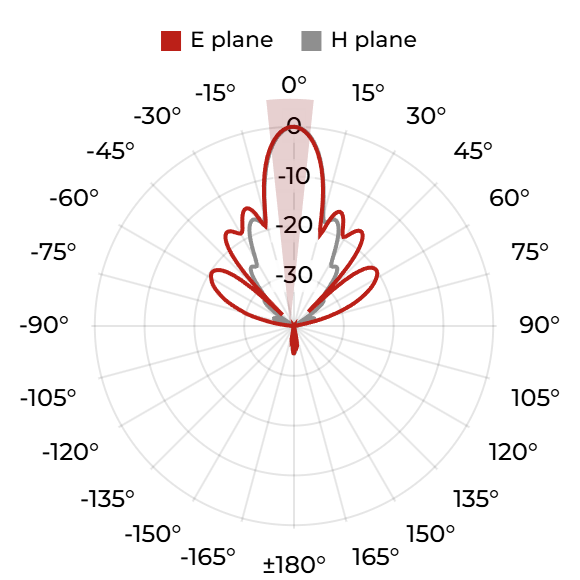

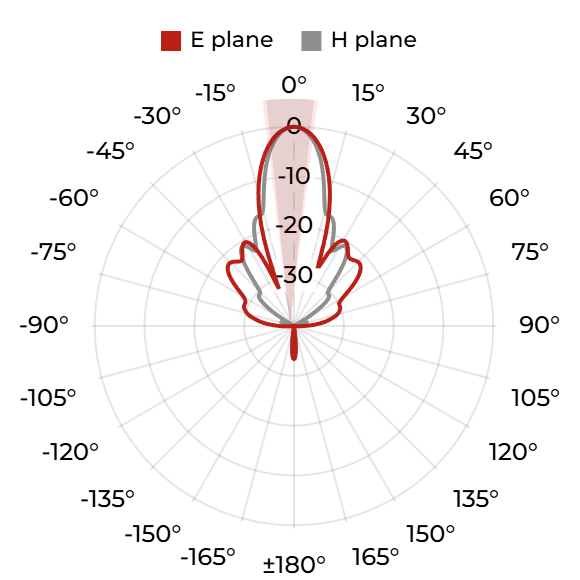

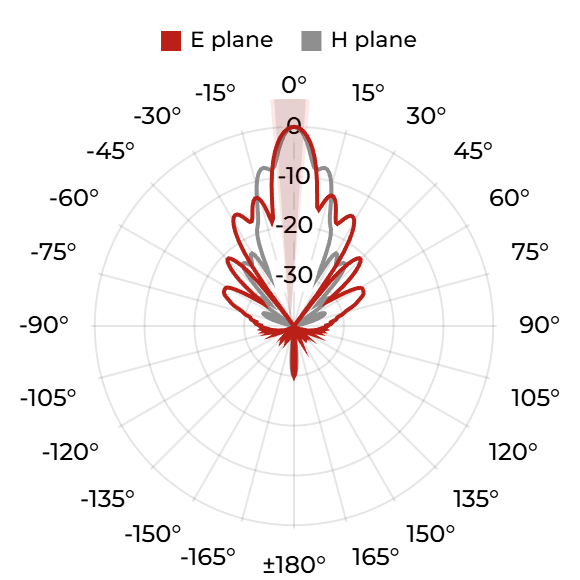

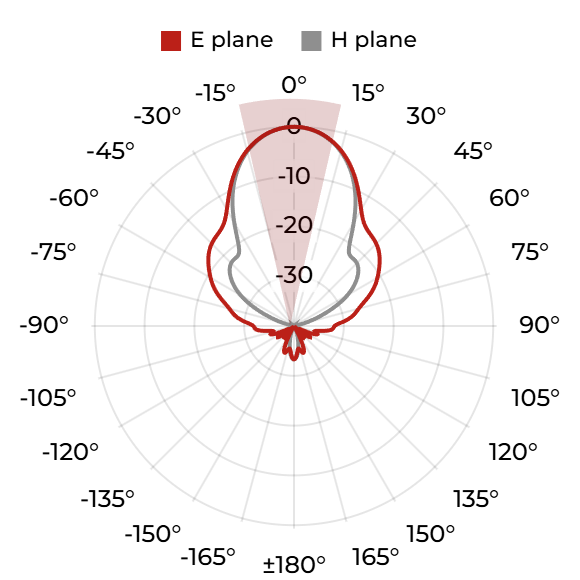

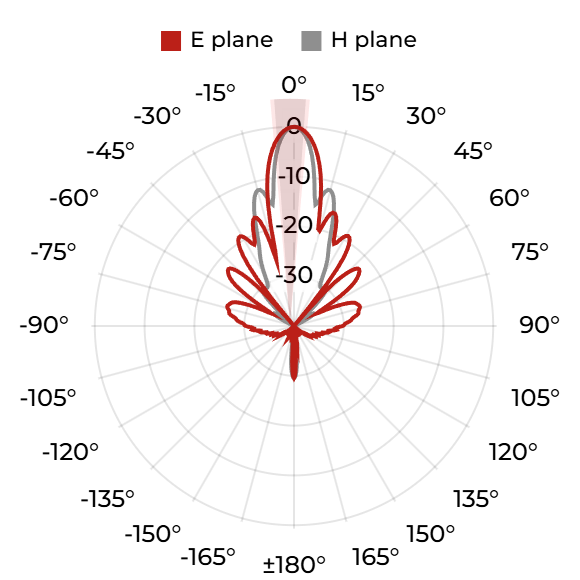

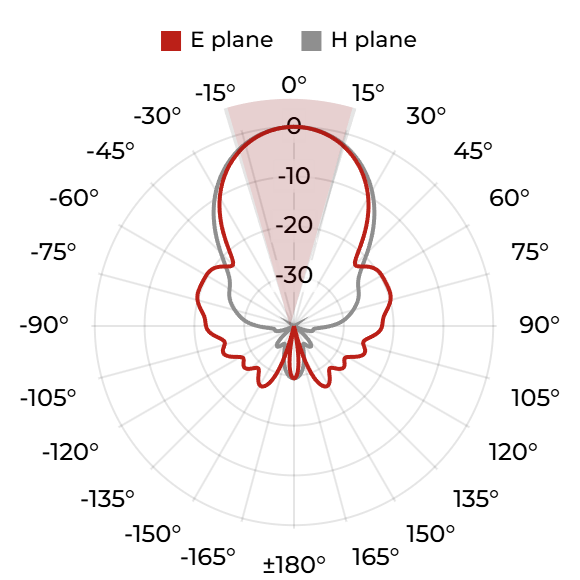

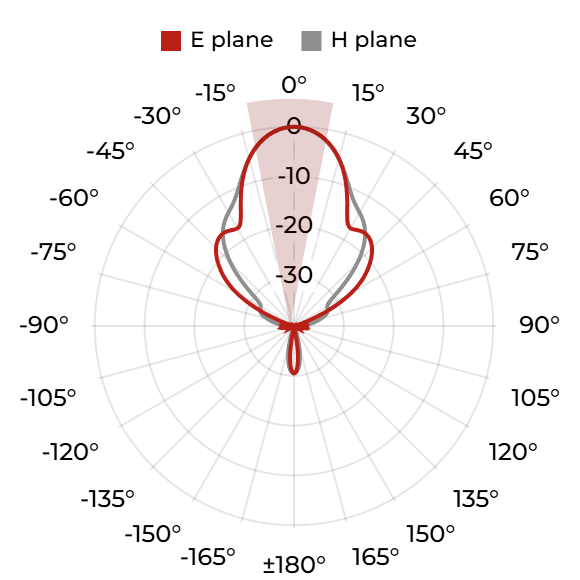

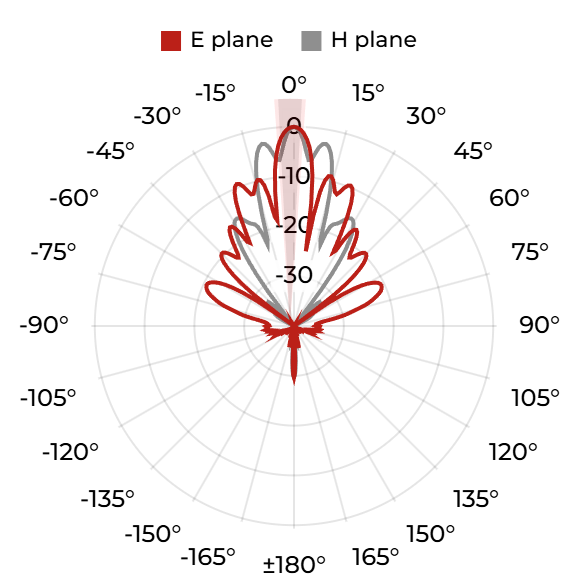

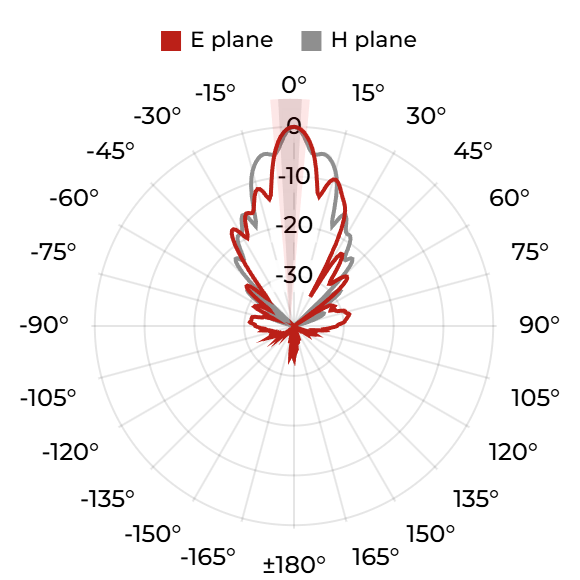

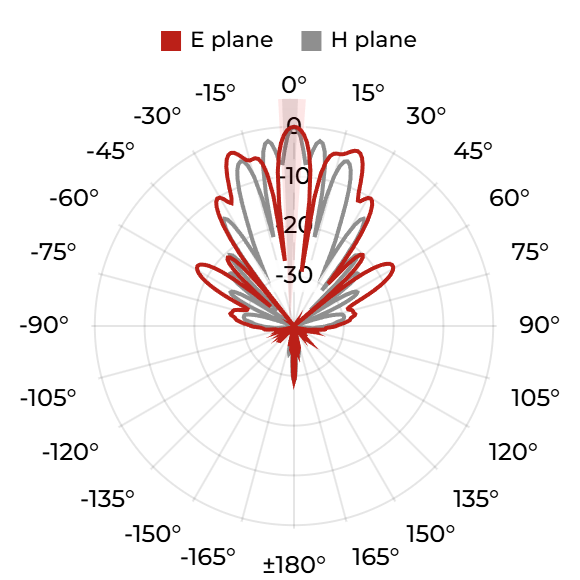

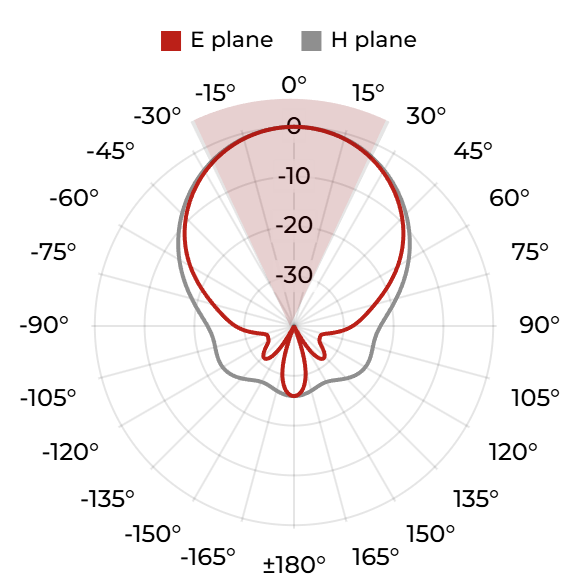

Radiation Patterns
1 GHz
1.5 GHz
2 GHz
2.5 GHz
3 GHz
4 GHz
5 GHz
5.5 GHz
6 GHz
7 GHz
7.5 GHz
8 GHz
Packaging and Accessories
Accessories

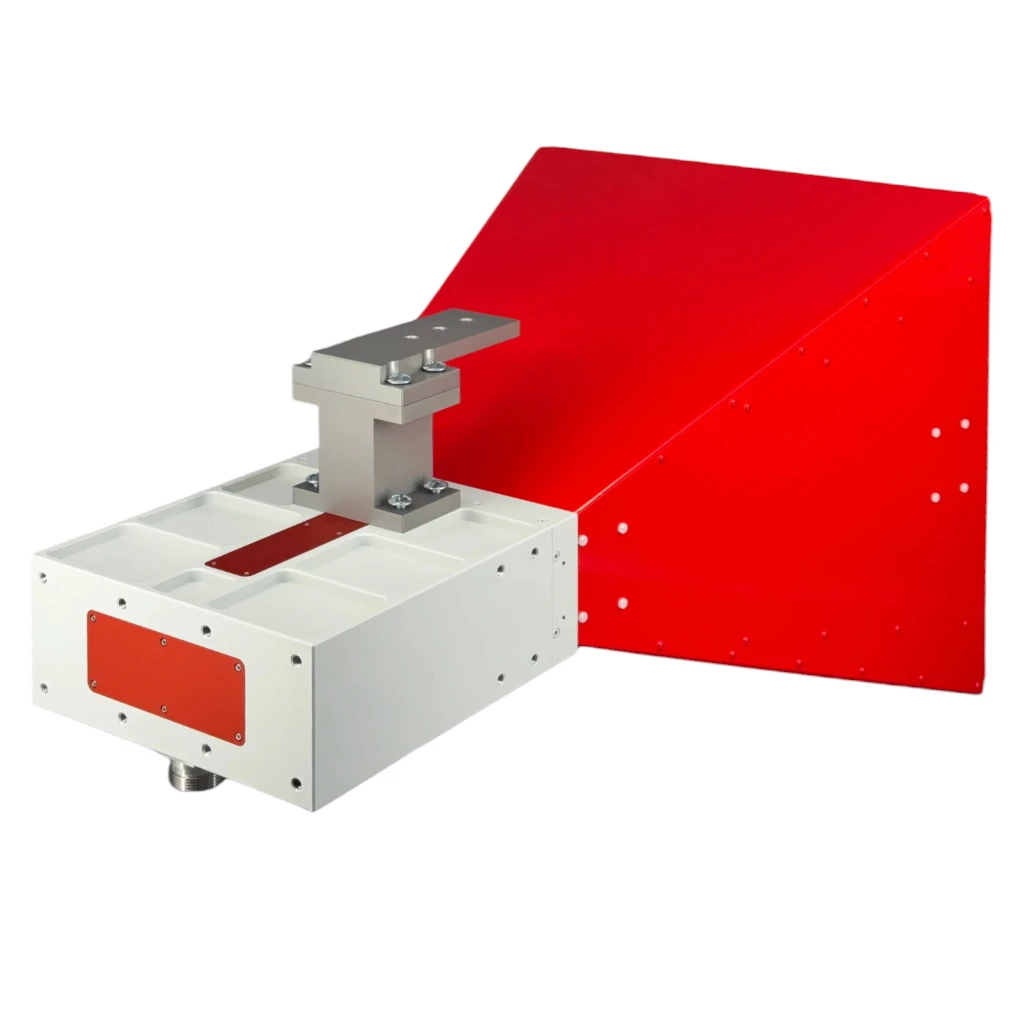

- Standard mounting flange
